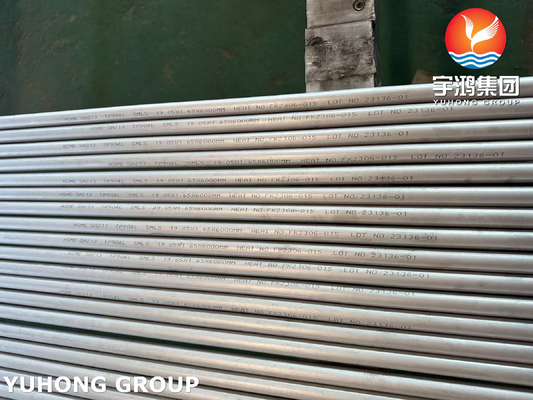

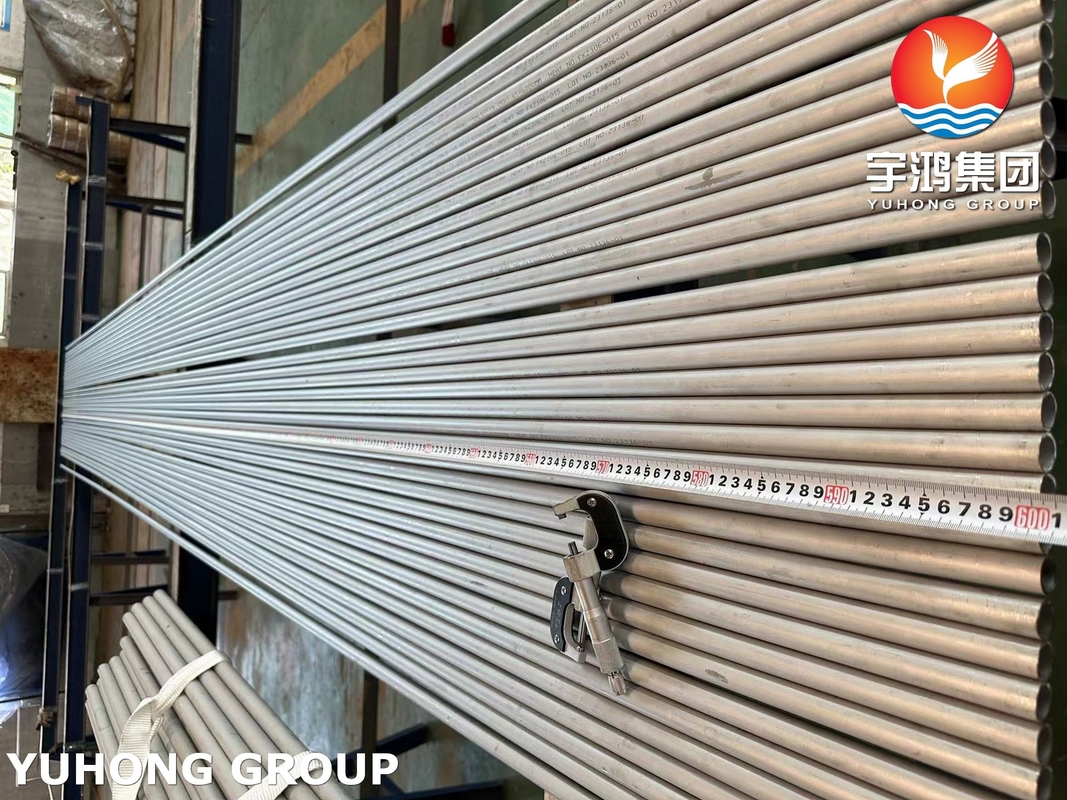

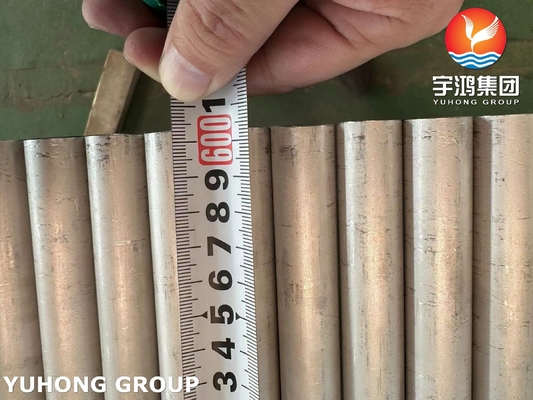

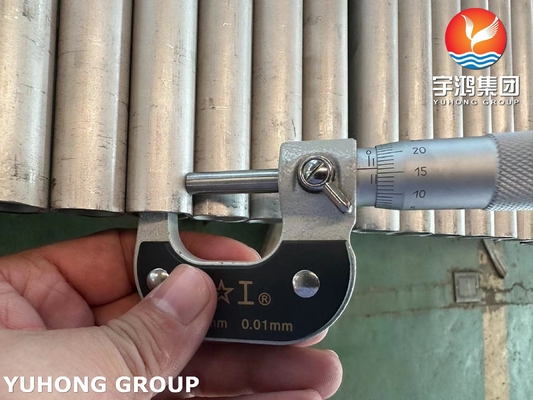

ASME SA213 TP904L Stainless Steel Heat Exchanger Tube Cooling Heating Condenser

Brand Name:	YUHONG
Model Number:	Seamless Tube
MOQ:	1PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material:

TP904L

Standard:

ASTM A213 , ASME SA213

Ends:

PE , BE

Testing:

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

Heating Stainless Steel Heat Exchanger Tube

Condenser Stainless Steel Heat Exchanger Tube

TP904L stainless steel heat exchanger tube

Product Description

ASME SA213 TP904L Stainless Steel Heat Exchanger Tube Cooling Heating Condenser

Product Specifications

Attribute	Value
Material	TP904L
Standard	ASTM A213, ASME SA213
Ends	PE, BE
Testing	UT, ET, HT, PMI
Size	OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc
Application	Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle

Product Description

Stainless Steel ASME SA213 TP904L Heat Exchanger Tube is designed for exceptional corrosion resistance and durability in demanding environments. TP904L maintains mechanical stability and strength at elevated temperatures, suitable for heat exchanger applications in power generation, petrochemical, and other high-heat industries. The material offers good weldability and formability, allowing for versatile design and fabrication options in complex systems.

Chemical Composition

Grade	Cr	Ni	Mo	Cu	C
TP904L	19.0-23.0%	23.0-28.0%	4.0-5.0%	1.0-2.0%	0.02% max

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP904L	≥ 220 MPa (32 ksi)	≥ 490 MPa (71 ksi)	≥ 35% in 50 mm	Typically ≤ 90 HRB

Applications

Chemical Processing

Petrochemical Industry: Used in heat exchangers for refining and processing hydrocarbons, TP904L can withstand the corrosive environments typical of petrochemical operations.

Chemical Production: Employed in reactors and heat exchangers for the production of chemicals, especially where aggressive chemicals like acids and chlorides are involved.

Power Generation

Nuclear Power Plants: The alloy's high resistance to stress corrosion cracking makes it suitable for heat exchangers in nuclear facilities, where it can handle high temperatures and pressures.

Fossil Fuel Power Plants: Utilized in boilers and steam generators due to its ability to resist oxidation and corrosion at elevated temperatures.

Marine Applications

Seawater Cooling Systems: TP904L is resistant to chloride-induced stress corrosion cracking, making it ideal for heat exchangers in marine environments where seawater is used for cooling.

Food and Beverage Industry

Pasteurizers and Sterilizers: The alloy's hygienic properties and resistance to pitting make it suitable for heat exchangers used in food processing, especially in dairy and beverage applications.

Pharmaceuticals

API Manufacturing: In the production of Active Pharmaceutical Ingredients (APIs), TP904L tubes are used in heat exchangers due to their ability to handle corrosive chemicals safely and maintain product integrity.

HVAC Systems

Chillers and Heat Pumps: TP904L can be used in heat exchangers for chillers and heat pumps, particularly in systems that may encounter aggressive water chemistry.

Aerospace and Defense

Heat Exchangers in Aerospace Engines: The material is sometimes used in aerospace applications where high strength and low weight are crucial, alongside resistance to extreme temperatures.

Waste Heat Recovery

Heat Recovery Systems: Used in systems designed to recover heat from industrial processes to improve overall energy efficiency.
