Carbon Steel ASME SA179 Seamless U Bend Tubes For Heat Exchanger And Condenser

Brand Name:	YuHong
Model Number:	ASME SA179 Seamless U Bend Tube
MOQ:	Depend on Customer's Request
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Plastic Caps on Tube's Both Ends
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, ABS, BV, ISO, ASTM, SGS

Product Name:

Carbon Steel Seamless U Bend Tube

Tube Specification:

ASME SA179

Tube Material:

Tube's OD:

19.05mm (Customsized Acceptable)

Tube's Wall Thickness:

2.11mm Minimum WT (Customsized Acceptable)

Tube's End:

Plain End

Tube's Length:

Depend On Customer

Application:

Heat Exchangers And Condensers; Refrigeration And Air Conditioning; Power Plant

Supply Ability:

According to Clients' requirements

Highlight:

Carbon Steel u bend heat exchanger tube

SA179 u bend heat exchanger tube

Condenser u bend tubes

Product Description

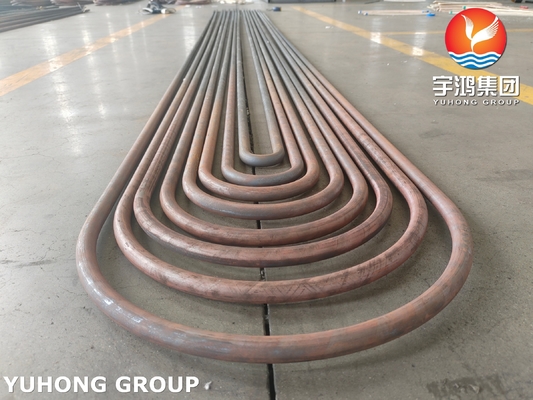

Carbon Steel ASME SA179 Seamless U Bend Tubes For Heat Exchanger And Condenser

Product Specifications

Attribute	Value
Product Name	Carbon Steel Seamless U Bend Tube
Tube Specification	ASME SA179
Tube material	A179
Tube's OD	19.05mm (Customsized Acceptable)
Tube's Wall Thickness	2.11mm Minimum WT (Customsized Acceptable)
Tube's End	Plain end
Tube's length	Depend on Customer
Application	Heat Exchangers and Condensers; Refrigeration and Air Conditioning; Power Plant

Product Description

SA179 Seamless U-Bend Tubes are specialized tubes made from low-carbon steel, designed primarily for use in heat exchangers and condensers. The "U-bend" refers to the shape of the tube, which is bent into a U configuration to facilitate efficient heat transfer in compact heat exchange systems.

Key Features

Material: Low-carbon steel provides excellent thermal conductivity, good weldability, and formability with resistance to corrosion and scaling.
Seamless Construction: No welded joints enhances strength, durability, and ability to withstand high pressure and temperature.
U-Bend Design: Efficient heat transfer and compact design while minimizing additional fittings and potential leak points.
Dimensions: Available in various sizes and wall thicknesses with customizable bending radius and angle.
Surface Finish: Smooth surface minimizes fouling and improves heat transfer efficiency.

Material Composition (ASTM A179)

Element	Composition (%)
Carbon (C)	0.06% - 0.18%
Manganese (Mn)	0.27% - 0.63%
Phosphorus (P)	0.035% max
Sulfur (S)	0.035% max
Silicon (Si)	0.10% min (typically 0.10% - 0.35%)

Mechanical Properties (ASTM A179)

Property	Value
Tensile Strength	Minimum 325 MPa (47,000 psi)
Yield Strength	Minimum 180 MPa (26,000 psi)
Elongation (in 2 inches)	Minimum 35%
Hardness (Typical)	72 - 77 HRB (Rockwell B scale)

Additional Notes:

High thermal conductivity makes it suitable for heat exchange applications. Good resistance to corrosion, especially in water and steam environments. Typically supplied in annealed or stress-relieved condition for optimal properties.

Applications

Heat Exchangers: Shell-and-tube heat exchangers in petrochemical, oil and gas, power generation, and HVAC industries.
Condensers: Power plants, refrigeration systems, and chemical processing plants.
Refrigeration and Air Conditioning: Critical role in heat exchange processes.
Power Plants: Condensers and heat exchangers to improve thermal efficiency.
Petrochemical and Chemical Industries: Handling corrosive fluids and high temperatures.
Marine Applications: Heat exchangers and condensers in harsh environments.
Food and Beverage Industry: Pasteurization, sterilization, and temperature-controlled processes.
