ASME SA789 UNS S32750 Super Duplex Stainless Steel Seamless Tube For Condenser

Brand Name:	YuHong
Model Number:	ASME SA789 UNS S32750
MOQ:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Plastic Caps on Tube's Both Ends
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, ABS, BV, ISO, ASTM, SGS

Product Name:

Duplex Stainless Steel Seamless Tube

Tube Specification:

ASTM A789 / ASME SA789

Tube Material:

UNS S32750

Tube's OD:

Customsized(Generally 1/2'' To 8'')

Tube's Wall Thickness:

Customsized

Tube's End:

Plain End

Tube's Length:

Depend On Customer

Application:

Heat Exchangers And Condensers;Offshore And Onshore Pipelines; Seawater Desalination...

Supply Ability:

According to Clients' requirements

Highlight:

S32750 stainless steel seamless tubes

SA789 stainless steel seamless tubes

Condenser seamless stainless steel pipe

Product Description

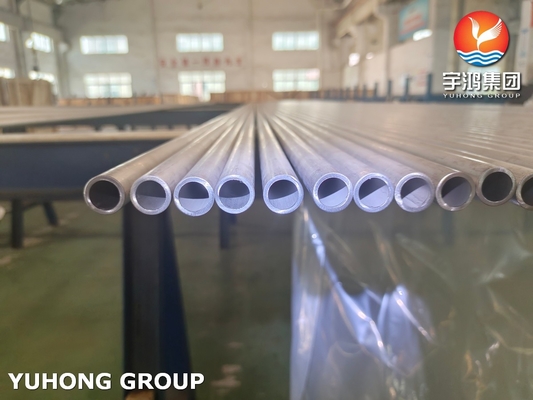

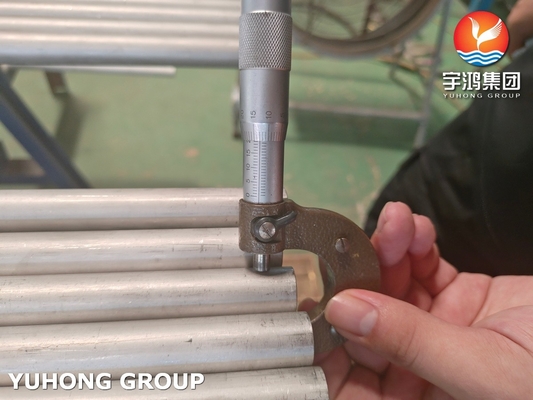

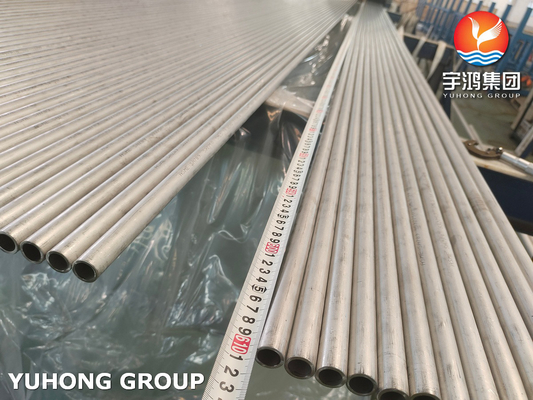

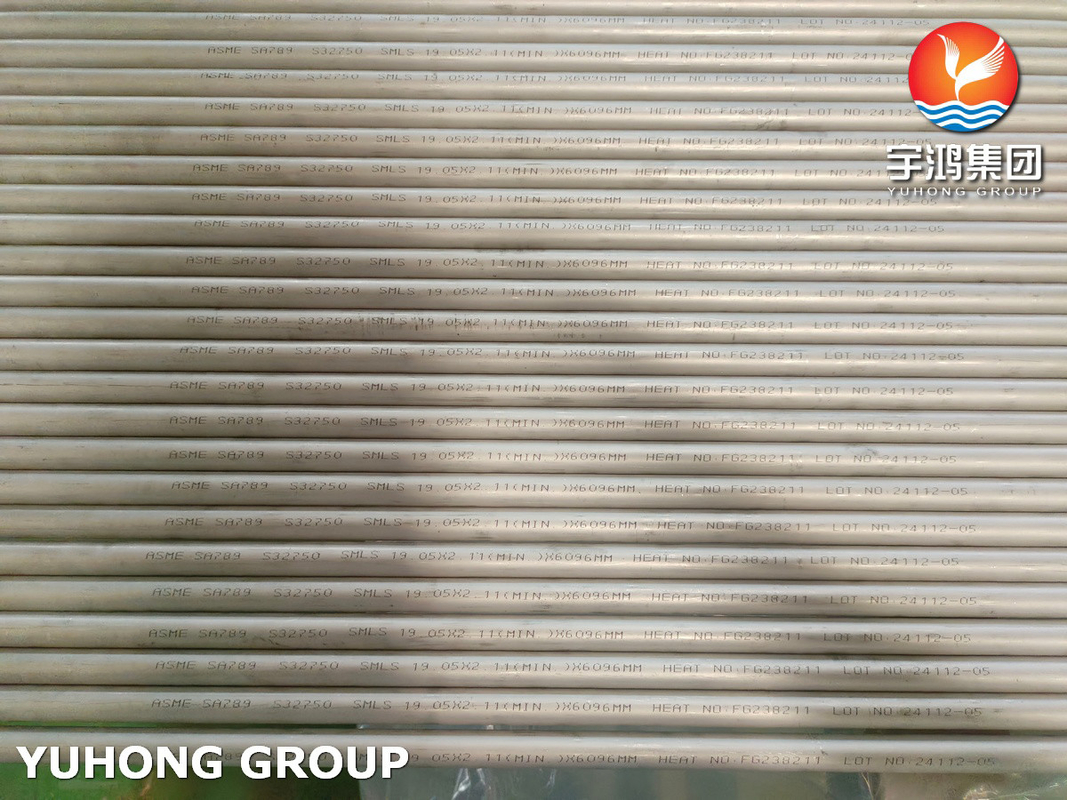

ASME SA789 UNS S32750 Super Duplex Stainless Steel Seamless Tube For Condenser

Product Specifications

Attribute	Value
Product Name	Duplex Stainless Steel Seamless Tube
Tube Specification	ASTM A789 / ASME SA789
Tube material	UNS S32750
Tube's OD	Customsized (Generally 1/2'' to 8'')
Tube's Wall Thickness	Customsized
Tube's End	Plain end
Tube's length	Depend on Customer
Application	Heat Exchangers and Condensers; Offshore and Onshore Pipelines; Seawater Desalination

Product Overview

ASME SA789 UNS S32750 Super Duplex Stainless Steel Seamless Tube is a specification for seamless tubes made from UNS S32750, a super duplex stainless steel. This material is known for its exceptional combination of high strength, excellent corrosion resistance, and good toughness, making it suitable for demanding applications in harsh environments.

Key Features

High Strength: UNS S32750 has a higher yield strength compared to standard duplex and austenitic stainless steels, making it suitable for high-pressure applications.
Excellent Corrosion Resistance: Superior resistance to pitting, crevice corrosion, and stress corrosion cracking (SCC), especially in chloride-rich environments like seawater.
Balanced Microstructure: Dual-phase microstructure (approximately 50% austenite and 50% ferrite) contributes to its strength and corrosion resistance.
Good Weldability and Fabricability: Can be welded and fabricated using standard techniques with proper procedures.
Resistance to Acids and Chemicals: Performs well in environments with acids, alkalis, and other corrosive chemicals.

Technical Specifications

Material Composition:

Chromium (Cr): 24-26%
Molybdenum (Mo): 3-4%
Nickel (Ni): 6-8%
Nitrogen (N): 0.24-0.32%

Mechanical Properties:

Tensile Strength: ≥ 800 MPa (116 ksi)
Yield Strength: ≥ 550 MPa (80 ksi)
Elongation: ≥ 15%

Testing Requirements: Hydrostatic testing or non-destructive testing (NDT) to ensure integrity, with additional tests like pitting resistance testing (ASTM G48) as required.

Heat Treatment: Tubes are typically supplied in the solution-annealed condition to optimize corrosion resistance and mechanical properties.

Applications

Oil and Gas Industry: Offshore/onshore pipelines, downhole and subsea equipment
Chemical and Petrochemical Industry: Heat exchangers, condensers, process piping
Desalination Plants: Seawater desalination components
Power Generation: Nuclear/fossil fuel plants, FGD systems
Marine and Shipbuilding: Seawater cooling systems, propulsion components
Pulp and Paper Industry: Bleaching equipment
Pharmaceutical Industry: High-purity systems
Food and Beverage Industry: Sanitary processing equipment
Water Treatment: Wastewater treatment plants
Aerospace and Defense: High-strength components
