Aluminium Brass Tube ASME SB111 C68700 U Bend Heat Exchanger Tube For Refinery Coolers

Brand Name:	YUHONG GROUP
MOQ:	1PC
Price:	Negotiable
Packaging Details:	WOODEN CASE WITH PLASTIC CAP
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Brand Name:

YUHONG GROUP

Tube Material:

C12200, C44300, C68700, C70600

Length:

Max 34M/PC

O.D.:

6-50.8mm

W.T.:

0.5-15mm

Testing:

UT, ET, HT, PMI

Product Name:

Aluminium Brass Tube

Minimum Order Quantity:

1PC

Price:

Negotiable

Packaging Details:

WOODEN CASE WITH PLASTIC CAP

Delivery Time:

According to the quantity

Payment Terms:

L/C,T/T

Supply Ability:

10000 tons/month

Highlight:

SB111 u bend heat exchanger tube

C68700 u bend heat exchanger tube

Refinery Coolers aluminium brass tube

Product Description

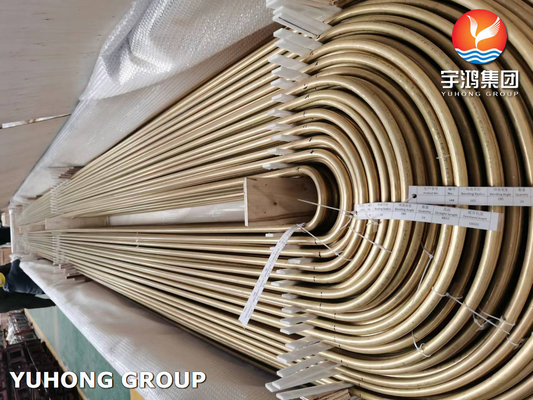

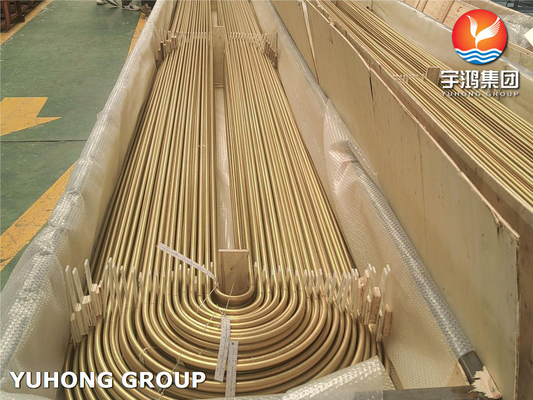

Aluminium Brass Tube ASME SB111 C68700 U Bend Heat Exchanger Tube For Refinery Coolers

Product Specifications

Tube Material	C12200, C44300, C68700, C70600
Length	Max 34M/PC
O.D.	6-50.8mm
W.T.	0.5-15mm
Testing	UT, ET, HT, PMI
Product Name	Aluminium Brass Tube

Applications

Marine & Offshore Systems

Seawater Cooled Condensers & Heat Exchangers: Shipboard condensers (main engine cooling), Offshore oil rig heat exchangers (cooling hydraulic systems, lube oil), Desalination plants (multi-stage flash evaporators)

Power Generation (Fossil & Nuclear)

Steam Surface Condensers: Coastal/nuclear power plants (seawater-cooled condensers), Waste heat recovery units (exhaust gas boilers)

Chemical & Petrochemical Processing

Corrosive Fluid Heat Transfer: Refinery coolers (hydrocarbon processing), Ammonia condensers (fertilizer plants)

HVAC & Refrigeration

Chillers & Evaporators: Compact design fits shell-and-tube evaporators (e.g., industrial chillers), Seawater-cooled HVAC (tropical coastal buildings), Industrial refrigeration systems

Industrial Process Cooling

High-Temperature/Pressure Exchangers: Meets strict dimensional tolerances for high-pressure systems, Brewery/distillery wort coolers, Pulp & paper mill heat recovery

Mechanical Properties

Property	Value
Tensile Strength (UTS)	380 - 520 MPa (55,000 - 75,000 psi)
Yield Strength (0.2% Offset, YS)	140 - 310 MPa (20,000 - 45,000 psi)
Elongation (in 50mm)	35 - 45% (varies with temper)
Hardness (Rockwell B)	50 - 85 HRB
Modulus of Elasticity	100 - 110 GPa (14.5 - 16 Msi)

Strength Considerations

Temperature Effects

At Elevated Temperatures (~150-250°C / 302-482°F): Tensile strength decreases by ~20-30%
Below 0°C (32°F): Becomes slightly stronger but more brittle (impact resistance drops)

Corrosion & Erosion Impact

Dezincification or pitting can reduce effective wall thickness
Erosion-corrosion (high-velocity seawater) may accelerate wear

U-Bend Stress Considerations

The bent region is work-hardened, increasing local strength
Residual stresses from bending may require stress relief annealing

Material Comparison

Material	Tensile Strength (MPa)	Yield Strength (MPa)	Key Advantage
C68700 (Al Brass)	380-520	140-310	Best for seawater corrosion
C70600 (90/10 Cu-Ni)	290-400	120-200	Better sulfide resistance
C71500 (70/30 Cu-Ni)	350-550	140-350	Higher strength than C70600
Titanium Gr. 2	345-483	275-345	Lightweight, no corrosion
Carbon Steel	400-550	205-250	Cheap but rusts easily

Design & Operational Limits

Max Allowable Pressure: Depends on tube diameter/wall thickness (use ASME BPVC Section VIII for calculations)
Fatigue Life: Excellent for cyclic thermal loads (U-bend accommodates expansion)
Avoid: Over-tightening in tube sheets (can collapse thin-walled tubes). Excessive vibration (may cause fretting wear)

Testing & Certification

Hydrostatic Test: Ensures no leaks at 1.5x design pressure
Eddy Current/UT Testing: Checks for defects affecting strength
Certifications: ASTM B111 / ASME SB111, EN 12451 (EU)
