ASME SA179 Carbon Steel Extruded Fin Tube With Al-1060 For Air Cooler

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable

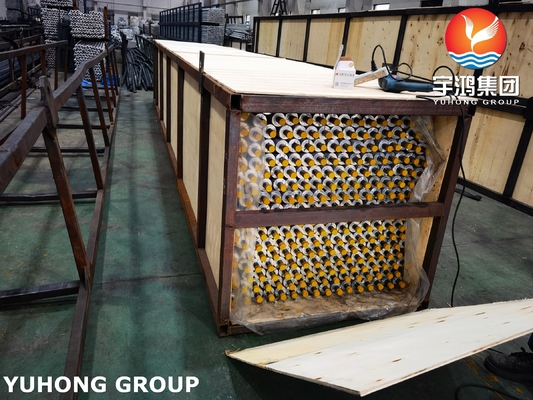

Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

Fin Type:

Extruded

Test:

HT, ET

Fin Material:

Al1060

Application:

Heat Exchanger, Air Cooler

Highlight:

Carbon Steel Extruded Fin Tube

SA179 Extruded Fin Tube

ASME extruded fin tube manufacturer

Product Description

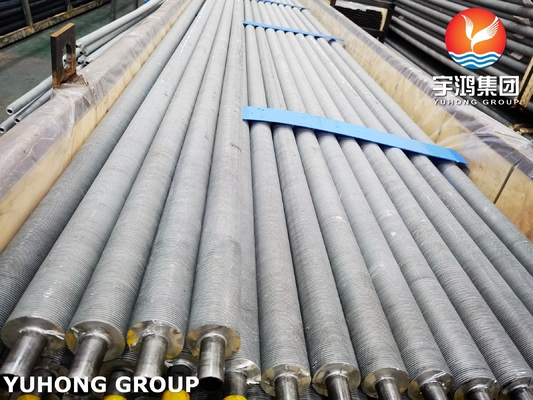

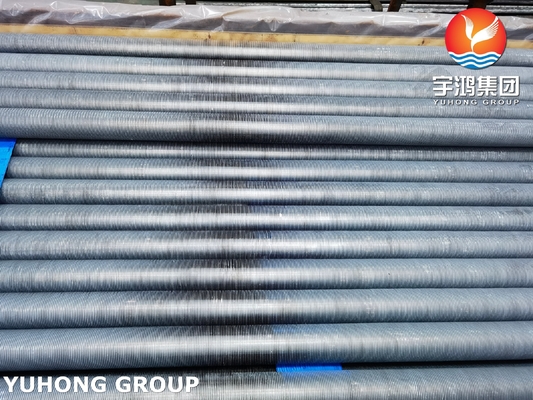

ASME SA179 Carbon Steel Extruded Fin Tube With Al-1060 For Air Cooler

Product Specifications

Attribute	Value
Material	A179
Fin Type	Extruded
Test	HT, ET
FPI	9-13
Fin Material	Al1060
Application	Heat Exchanger, Air Cooler

Product Description

ASME SA179 Carbon Steel Extruded Fin Tube with Al-1060 for Air Cooler is a high-performance component designed for industrial cooling systems, particularly in air coolers and heat exchangers. This combination of carbon steel tube and extruded aluminum (Al-1060) fin delivers optimal strength, durability, and heat transfer efficiency.

Chemical Composition - ASME SA179 Carbon Steel

Element	Percentage (%)
Carbon (C)	0.06 - 0.12
Manganese (Mn)	0.27 - 0.63
Phosphorus (P)	0.035 max
Sulfur (S)	0.035 max
Silicon (Si)	0.10 - 0.35
Iron (Fe)	Balance

Mechanical Properties - ASME SA179 Carbon Steel

Property	Value
Tensile Strength	415 MPa (60,200 psi)
Yield Strength	205 MPa (29,725 psi)
Elongation	35% min
Hardness (Rockwell B)	80 max
Modulus of Elasticity	190 GPa (27,500 ksi)
Poisson's Ratio	0.30
Thermal Conductivity	50 W/mK (29 BTU/hrft²*°F)
Specific Heat	470 J/kgK (0.11 BTU/lb°F)

Applications

Air Coolers: High surface area aluminum fins improve heat dissipation in air cooling systems
Heat Exchangers: Used in both air-to-air and air-to-liquid heat exchangers for industrial cooling
HVAC Systems: Essential in cooling towers and air handling units (AHUs) for heat transfer
Refrigeration Systems: Efficient cooling in warehouses, ice plants, and cold storage facilities
Industrial Process Cooling: Cools machinery and equipment in power plants and chemical processing
Automotive Applications: Compact cooling solutions for specialized air-cooled heat exchangers

Key Advantages

Enhanced Heat Transfer: Aluminum fins increase surface area for superior thermal performance
Cost-Effective: More economical than all-aluminum or stainless-steel alternatives
Mechanical Strength: Carbon steel tube provides excellent durability and tensile strength
Lightweight & Durable: Aluminum fins resist oxidation for long-lasting performance
Corrosion Resistance: Moderate protection against corrosion in air cooler applications
Customizable: Extrusion process allows for optimized fin design and surface area
Versatile: Suitable for various temperature ranges and cooling applications
