ASME SA249 TP304 Extruded Fin Tubes With AL1060 Fins For Heat Exchanger And Boiler

Brand Name:	YuHong
Model Number:	ASTM A249 TP304 Extruded Finned Tube with AL1060 Fins
MOQ:	200~500 KGS
Price:	Negotiable

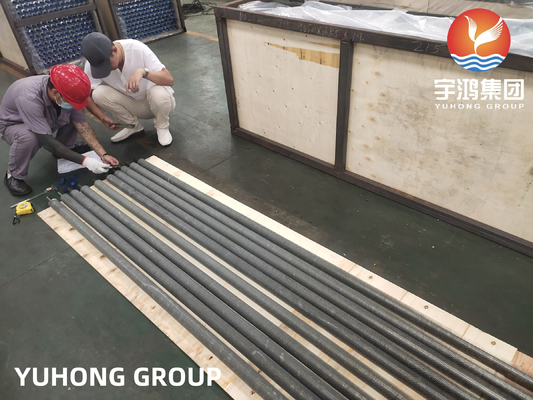

Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, ABS, BV, ISO, ASTM, SGS

Product Name:

Extruded Finned Tube

Base Tube Specification:

ASTM A249

Base Tube Material:

TP304

Fin Material:

ASTM B221 AL-1060

Fin Height:

＜17mm

Fin Thickness:

0.2~0.4mm

Base Tube OD:

8~51mm

Fin Pitch:

1.6~10mm

Application:

Heat Exchanger, Boiler, Power Generation, Petrochemical Industry...

Supply Ability:

According to Clients' requirements

Highlight:

TP304 extruded fin tubes

SA249 extruded fin tubes

Boiler extruded fin tube manufacturer

Product Description

ASME SA249 TP304 Extruded Fin Tubes With AL1060 Fins For Heat Exchanger And Boiler

Product Specifications

Product Name	Extruded Finned Tube
Base Tube Specification	ASTM A249
Base Tube Material	TP304
Fin material	ASTM B221 AL-1060
Fin Height	<17mm
Fin Thickness	0.2~0.4mm
Base Tube OD	8~51mm
Fin Pitch	1.6~10mm
Application	Heat Exchanger, Boiler, Power Generation, Petrochemical Industry

Product Description

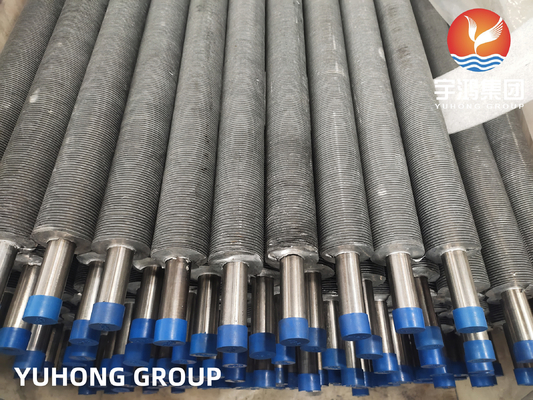

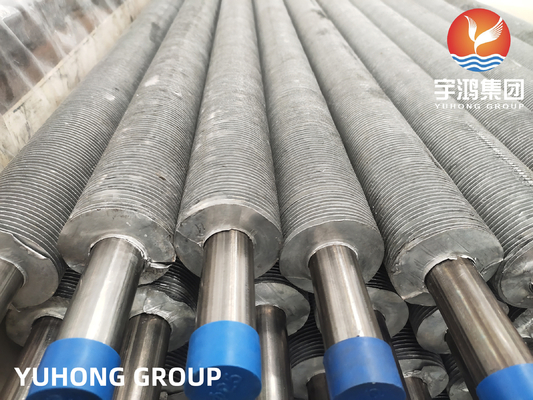

The Extruded Finned Tube ASME SA249 TP304 with AL1060 Fins is a specialized heat transfer tube designed for demanding applications in heat exchangers and boilers. This high-performance tube combines the corrosion resistance of TP304 stainless steel with the superior thermal conductivity of AL1060 aluminum fins.

Key Components

Base Tube Material: ASME SA249 TP304 Stainless Steel - offers excellent corrosion resistance and high-temperature strength
Fins: AL1060 Aluminum - provides exceptional thermal conductivity and lightweight properties
Extruded Fin Design: Creates a seamless, tightly bonded structure for maximum heat transfer efficiency

Key Features

High thermal efficiency with increased surface area
Excellent corrosion resistance for harsh environments
Lightweight construction for easier handling
Durable extruded fin design prevents separation
High temperature resistance suitable for boiler applications

Material Specifications

Chemical Composition of ASTM A249 TP304

Element	Composition (%)
Carbon (C)	≤ 0.08
Manganese (Mn)	≤ 2.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030
Silicon (Si)	≤ 1.00
Chromium (Cr)	18.00-20.00
Nickel (Ni)	8.00-11.00
Iron (Fe)	Balance

Mechanical Properties of ASTM A249 TP304

Property	Value
Tensile Strength	≥ 515 MPa (75,000 psi)
Yield Strength (0.2% Offset)	≥ 205 MPa (30,000 psi)
Elongation (in 2 inches)	≥ 35%
Hardness (Rockwell B)	≤ 90 HRB

Applications

Heat exchangers (shell-and-tube, air-cooled, condensers)
Boilers (waste heat recovery, steam boilers, thermal oil heaters)
Power plant cooling systems and HRSGs
Petrochemical processing plants
HVAC systems
Marine heat exchangers
Food and beverage processing equipment

Note: TP304 stainless steel offers excellent corrosion resistance and retains mechanical properties at elevated temperatures, making it ideal for heat exchanger and boiler applications.
