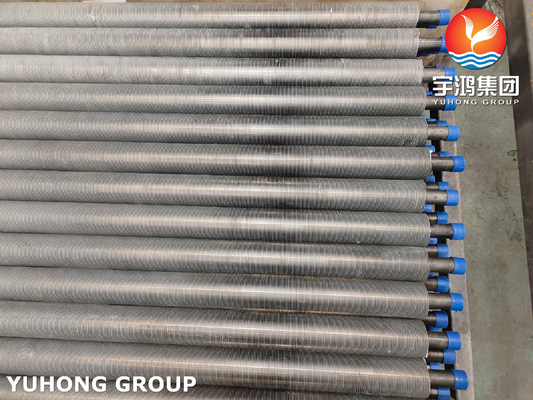

Carbon Steel Extruded Fin Tube ASTM A179 With Al1060 Fins For Power Plants

Brand Name:	YuHong
Model Number:	ASTM 179
MOQ:	200~500 KGS
Price:	Negotiable

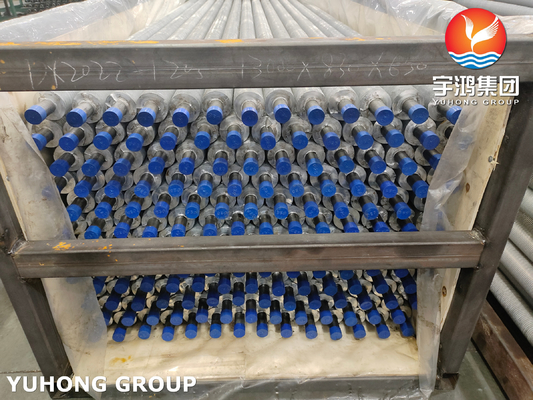

Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, ABS, BV, ISO, ASTM, SGS

Product Name:

Extruded Finned Tube

Bare Tube Specification&Material:

ASTM A179

Bare Tube OD:

8~51mm

Fin Material:

ASTM B221 AL-1060

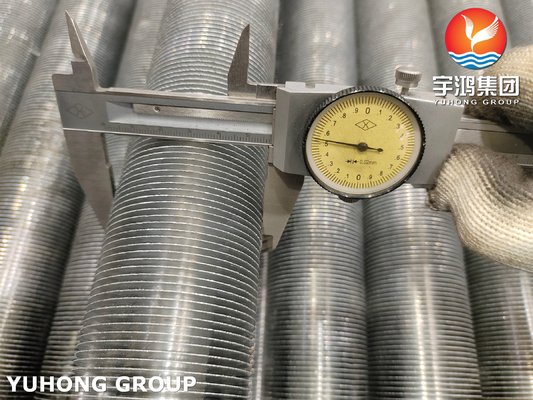

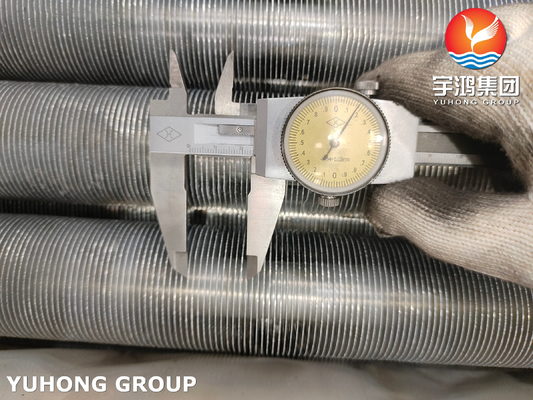

Fin Height:

＜17mm

Fin Thickness:

0.2~0.4mm

Fin Pitch:

1.6~10mm

Application:

Heat Exchangers For Power Plants, Steam Condensate Systems...

Supply Ability:

According to Clients' requirements

Highlight:

Carbon Steel extruded fin tube

ASTM extruded fin tube

A179 extruded fin

Product Description

Carbon Steel Extruded Fin Tube ASTM A179 With Al1060 Fins For Power Plants

Product Specifications

Attribute	Value
Product Name	Extruded Finned Tube
Bare Tube Specification & Material	ASTM A179
Bare Tube OD	8~51mm
Fin material	ASTM B221 AL-1060
Fin Height	<17mm
Fin Thickness	0.2~0.4mm
Fin Pitch	1.6~10mm
Application	Heat exchangers for power plants, Steam condensate systems

Product Overview

An extruded finned tube is a type of heat exchanger tube where fins are mechanically bonded to the outer surface of a base tube through an extrusion process. This design significantly increases the tube's surface area, improving heat transfer efficiency in applications involving air or gas cooling/heating.

Manufacturing Process

Base Tube Selection: Typically made of carbon steel (e.g., ASTM A179), stainless steel, or other alloys.
Fin Material: Common choices include Aluminum 1060 (Al1060) for lightweight and corrosion resistance.
Extrusion Process: The pressure and rotation mechanically bond the fin to the tube, creating a seamless, high-strength connection without soldering or welding.

Key Features

Strong Bond: The fins are integrally attached, reducing the risk of loosening under thermal cycling
High Heat Transfer Efficiency: More surface area = better heat exchange
Lightweight (if aluminum fins are used)
Corrosion-Resistant (if aluminum or stainless steel is used)

Comparison with Other Finned Tubes

Type	Bonding Method	Strength	Thermal Performance	Cost
Extruded Fins	Mechanical (cold-welded)	Very Strong	Excellent	Moderate
Embedded Fins	Grooved & wrapped	Good	Good	Lower
Welded Fins	High-frequency welding	Strong	Very Good	Higher
L-Footed Fins	Crimped onto tube	Moderate	Good	Low

Advantages Over Other Types

Better heat transfer than wrapped or L-footed fins
More durable than bonded fins (no adhesive failure risk)
Suitable for high-temperature cycling (unlike soldered fins)

Base Tube Material: ASTM A179

Material: Low-carbon steel (seamless cold-drawn tubes)

ASTM A179 Material Composition (Weight %)

Element	Composition Range
Carbon (C)	≤ 0.06 - 0.18%
Manganese (Mn)	0.27 - 0.63%
Phosphorus (P)	≤ 0.035%
Sulfur (S)	≤ 0.035%
Silicon (Si)	≥ 0.10% (typically 0.25-0.50%)
Iron (Fe)	Balance (≥ 98%)

ASTM A179 Mechanical Properties

Property	Value
Tensile Strength	≥ 325 MPa (47,000 psi)
Yield Strength	≥ 180 MPa (26,000 psi)
Elongation (in 2")	≥ 35%
Hardness (Rockwell B)	≤ 72 HRB

Key Characteristics

Cold-drawn seamless tubes: Improved surface finish and dimensional accuracy
High ductility (≥35% elongation) for bending/flaring without cracking
Moderate strength: Suitable for low/medium-pressure heat exchangers
Good thermal conductivity
Corrosion resistance in certain environments
Suitable for moderate-temperature applications (e.g., boilers, condensers, heat exchangers)

Comparison with Similar Standards

Standard	Carbon %	Tensile Strength	Key Difference
ASTM A179	0.06-0.18%	≥325 MPa	Cold-drawn, seamless
ASTM A192	0.06-0.18%	≥325 MPa	High-temp boilers
ASTM A106	0.30% max	≥415 MPa	Higher strength, piping

Why ASTM A179 for Finned Tubes?

Excellent thermal conductivity (better than stainless steel)
Cost-effective vs. alloy tubes
Compatible with aluminum fins (extrusion-friendly)

Applications

Power Plants & Energy Generation

Air-Cooled Condensers (ACC)
Heat Recovery Steam Generators (HRSG)
Economizers

Petrochemical & Refineries

Process Gas Cooling/Heating
Lube Oil & Fuel Oil Coolers

HVAC & Refrigeration

Chillers & Evaporators
Heat Pumps

Industrial Process Heating/Cooling

Drying Systems
Chemical Reactors

Marine & Offshore

Seawater Coolers

Renewable Energy

Biomass & Waste Heat Recovery
