Coolers A179 Carbon Steel Extruded Fin Tube Manufacturer With AL1060 Fins

Brand Name:	YUHONG
Model Number:	ASTM A179
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD

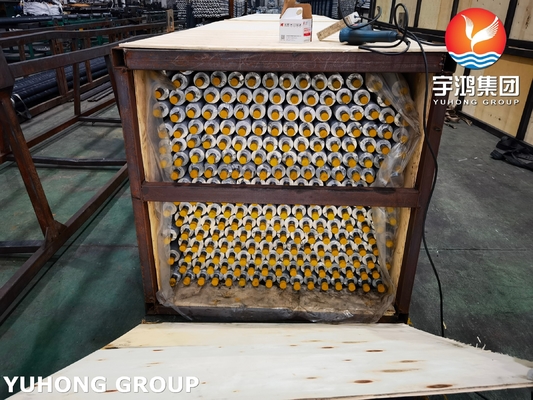

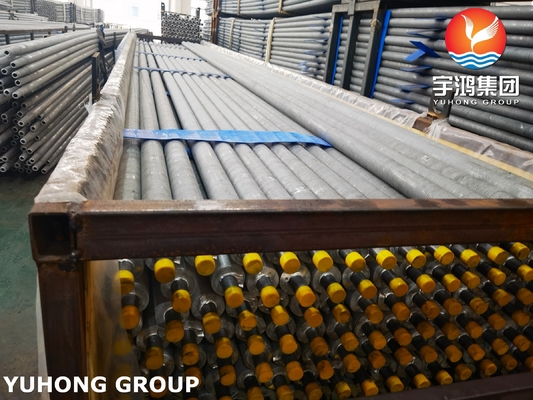

Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Product:

Fin Tubes Or Finned Tube

Type:

Extruded Finned Tubes

Material:

Base Tubes A179 And AL1060 Fins

Length:

6100MM/PC

Tube Details:

Base Tube 25.4mm O.D. And W.T. 2.11mm

Fins Details:

11FPI And 57.15mm Fin O.D., W.T. 0.2-0.4mm

Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

Carbon Steel extruded fin tube manufacturer

A179 extruded fin tube manufacturer

Coolers extruded fin tubes

Product Description

Coolers A179 Carbon Steel Extruded Fin Tube Manufacturer With AL1060 Fins

Product Specifications

Attribute	Value
Product	Fin Tubes or Finned Tube
Type	Extruded Finned Tubes
Material	Base Tubes A179 and AL1060 Fins
Length	6100MM/PC

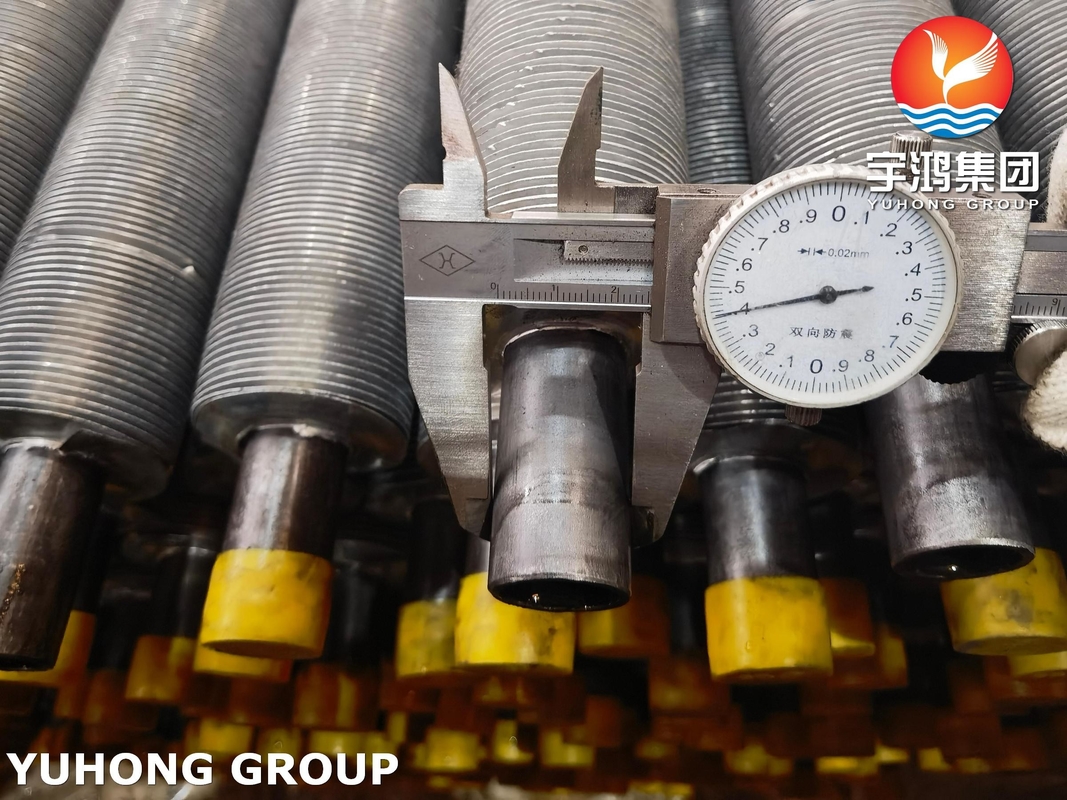

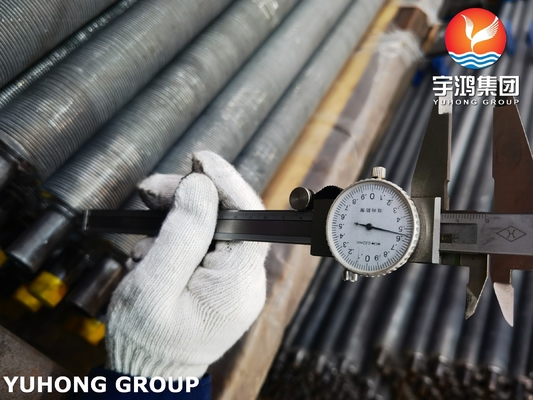

Tube Details	Base Tube 25.4mm O.D. and W.T. 2.11mm
Fins Details	11FPI and 57.15mm Fin O.D., W.T. 0.2-0.4mm
Use	Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air cooler, etc
Packing	Ply-wooden Case With Iron Frame

ASTM A179 Carbon Steel Extruded Fin Tubes With AL1060 Fins For Coolers

Chemical Composition (%) max

Grade	C	Mn	P	S
A179	0.06-0.18	0.27-0.63	0.035	0.035

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
A179	47ksi (325 MPa)	26ksi (180 MPa)	35%

ASTM A179 covers minimum-wall-thickness, seamless cold-drawn low-carbon steel tubes for tubular heat exchangers, condensers, and similar heat transfer apparatus.

Application Of ASTM A179 Tubes

Boilers: Suitable for use in low-pressure boiler systems, particularly in economizers and other heat recovery components.
Condensers: Commonly employed in condensers for power plants and refrigeration systems.
HVAC Systems: Used in heat exchangers and chillers for heating, ventilation, and air conditioning.
Heat Exchangers: Widely used in shell-and-tube heat exchangers due to excellent thermal conductivity.
Oil Refineries: Used in heat transfer applications like preheaters and coolers.
Petrochemical Industry: Utilized in various heat exchange processes requiring reliable performance.
General Industrial Applications: Suitable for any application requiring efficient heat transfer in low-temperature environments.

ASTM A179 carbon steel tubes are essential in industries requiring efficient heat transfer, such as power generation, petrochemicals, and HVAC systems, due to their durability, thermal conductivity, and corrosion resistance.

Extruded Fin Tubes

Extruded fin tubes are specialized heat transfer components widely used in industries requiring efficient thermal management.

Extruded fin tubes can be manufactured using various materials, depending on the application:

Base Tube Materials: Carbon steel, stainless steel, copper, titanium, and alloys.
Fin Materials: Aluminum (common for corrosion resistance and lightweight properties) or the same material as the base tube.

Features

Integrated Structure: Fins are mechanically bonded to the base tube for excellent thermal conductivity.
High Fin Density: Larger heat transfer surface area improves efficiency.
Corrosion Resistance: Seamless bond between fin and tube reduces corrosion risk.
Customizable Design: Fins can be tailored in height, thickness, and spacing.
Mechanical Strength: Enhanced structural integrity for high-pressure environments.

Advantages

Enhanced Heat Transfer: Large surface area improves thermal efficiency.
Compact Design: High fin density allows for space-efficient heat exchangers.
Durability: Mechanical bond ensures long-term performance.
Versatility: Suitable for wide range of temperatures and pressures.

Considerations

Temperature, pressure, and corrosive environment must be considered when selecting materials and designs. Regular inspection and cleaning are required to prevent fouling and maintain efficiency. Extruded fin tubes are more expensive than other types but offer superior performance and longevity.

Extruded fin tubes are critical components in heat transfer systems, offering high efficiency, durability, and versatility. They are widely used in industries such as heat exchangers, boilers, power generation, petrochemicals, HVAC, and renewable energy.
