Extruded Fin Tube
>
A179 Carbon Steel Extruded Finned Tubes Suppliers With Aluminium 1060 For Heat Exchanger

A179 Carbon Steel Extruded Finned Tubes Suppliers With Aluminium 1060 For Heat Exchanger

Brand Name: Yuhong
Model Number: ASTM A179
MOQ: 100KGS
Price: Negotiable
Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China
Certification:
DNV, BV, PED, LR, ABS, TS, CCS
Tube Material:
ASTM A179
Fin Material:
Al1060, Al1100
Fin Type:
Extruded
Fin Height:
15.875mm
Fin Thickness:
0.4mm
FPI:
10
Application:
Heat Exchanger, Air Cooler, Cooling Equipment
Highlight:

Carbon Steel extruded finned tubes suppliers

,

A179 extruded finned tubes suppliers

,

1060 aluminium extruded fin tube

Product Description
A179 Carbon Steel Extruded Finned Tubes with Aluminum 1060 for Heat Exchangers
Product Specifications
Attribute Value
Tube Material ASTM A179
Fin Material Al1060, Al1100
Fin Type Extruded
Fin Height 15.875mm
Fin Thickness 0.4mm
FPI 10
Application Heat Exchanger, Air Cooler, Cooling Equipment
Technical Specifications
Property Base Tube (Carbon Steel A179) Fin Material (Aluminum 1060)
Outer Diameter (OD) 19.05 mm - 50.8 mm Customizable based on design
Wall Thickness 1.2 mm - 3.0 mm -
Fin Thickness - 0.5 mm - 1.5 mm
Fin Height - 10 mm - 40 mm
Fin Attachment Extruded and bonded to base tube -
Chemical Composition
Element Carbon Steel A179 (Base Tube) Aluminum 1060 (Fin Material)
Carbon (C) ≤ 0.10% ≤ 0.03%
Manganese (Mn) 0.30% - 0.60% ≤ 0.03%
Phosphorus (P) ≤ 0.035% -
Sulfur (S) ≤ 0.035% -
Chromium (Cr) ≤ 0.30% -
Nickel (Ni) ≤ 0.40% -
Aluminum (Al) - ≥ 99.0%
Mechanical Properties
Property Carbon Steel A179 (Base Tube) Aluminum 1060 (Fin Material)
Tensile Strength 335 - 485 MPa 70 - 110 MPa
Yield Strength ≥ 205 MPa 35 - 55 MPa
Elongation ≥ 30% ≥ 20%
Key Advantages
  • Improved Heat Transfer: Al1060 fins provide excellent heat conductivity, boosting overall heat exchange efficiency.
  • Corrosion Resistance: Aluminum fins mitigate corrosion risks, especially beneficial in humid or marine environments.
  • Cost-Effectiveness: A179 steel keeps manufacturing costs lower while maintaining performance.
  • Weight Reduction: Aluminum fins decrease overall weight compared to steel or copper alternatives.
  • Enhanced Durability: A179 steel provides structural integrity while aluminum fins maintain lightweight performance.
Applications
  • Air Conditioning and Refrigeration Systems: Cooling coils and evaporators requiring efficient heat dissipation.
  • Automotive Industry: Radiators and cooling systems where high efficiency and reduced weight are critical.
  • Power Plants: Heat exchangers handling high heat loads with balanced cost and performance.
  • Oil & Gas: Offshore applications where corrosion resistance is essential.

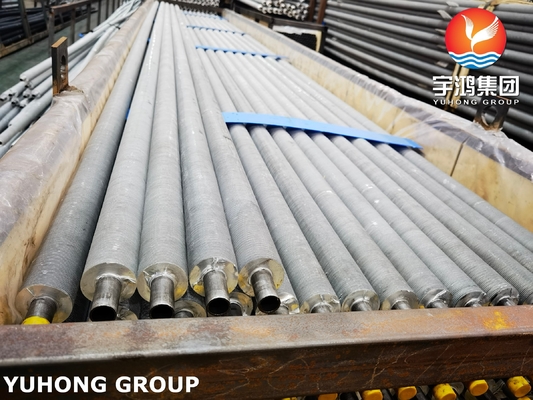

A179 Carbon Steel Extruded Finned Tubes Suppliers With Aluminium 1060 For Heat Exchanger 0
