ASME SA249 TP304 Extruded Finned Tubes With AL Fin For Air Cooler Heat Exchangers

Brand Name:	YUHONG
Model Number:	ASME SA249, Extruded
MOQ:	100 KGS
Price:	Negotiate
Packaging Details:	Plywooden case with Iron Frame
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Product Name:

Extruded Finned Tube

Tube Material Grade:

TP304, 316L, 321, SA179, T5, T9, T11, T12, T22

Material:

Carbon Steel, Stainless Steel, Alloy Steel

Application:

Heat Exchangers, Air Coolers, Condensers, Evaporators, Radiators

Fin Material:

Aluminum, Cooper

Fin Spacing:

2.0mm-20mm

Wall Thickness:

0.84mm

Tube Diameter:

15mm, 19mm, 25mm, 32mm, 38mm, 42mm

Supply Ability:

4150 Ton Per Month

Highlight:

Air Cooler Extruded Finned Tubes

AL Fin Extruded Finned Tubes

ASME SA249 Extruded Finned Tubes

Product Description

ASME SA249 TP304 Extruded Finned Tubes With AL Fin For Air Cooler Heat Exchangers

Product Specifications

Premium extruded aluminum finned tubes engineered for industrial air cooler applications, offering superior heat transfer efficiency and corrosion resistance.

Base Tube (TP304) Specifications

Parameter	Specification
Outer Diameter	19-50.8mm
Wall Thickness	1.65-3.05mm
Length	Up to 12m
Surface Finish	Bright Annealed

Aluminum Fin Properties

Parameter	Value
Fin Height	8-16mm
Fin Thickness	0.4-0.8mm
Fin Density	7-14 FPI
Thermal Conductivity	≥200 W/m*K

Technical Specifications

Chemical Composition (TP304)

Element	C	Mn	P	S	Si	Cr	Ni
%	≤0.08	≤2.00	≤0.045	≤0.030	≤1.00	18.0-20.0	8.0-10.5

Mechanical Properties

Property	Value
Tensile Strength	≥515 MPa
Yield Strength	≥205 MPa
Elongation	≥35%
Hardness	HRB ≤90

Key Features

Superior corrosion resistance
Excellent heat transfer efficiency
High mechanical strength
Outstanding fin-to-tube bonding
Enhanced thermal performance
Extended service life

Applications

Industrial air coolers
Process gas cooling
HVAC systems
Petrochemical processing
Power generation
Food and beverage processing

Quality Certifications

ASME Section VIII Division 1
ISO 9001:2015
PED 2014/68/EU
ASTM Standards
API Specifications

Manufacturing Process

Material certification
Base tube precision forming
Aluminum fin extrusion
Quality control inspection
Hydrostatic testing
Non-destructive examination

Testing & Quality Assurance

100% hydrostatic testing
Eddy current testing
Helium leak detection
X-ray inspection
Ultrasonic examination

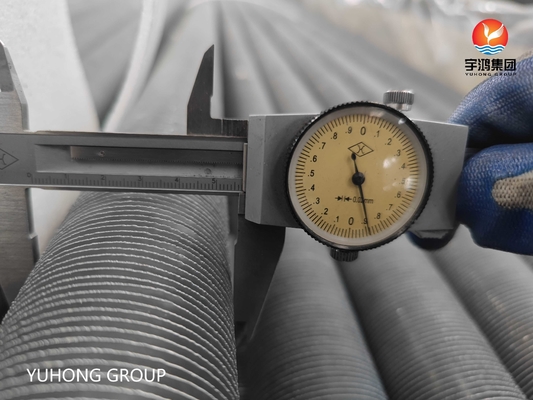

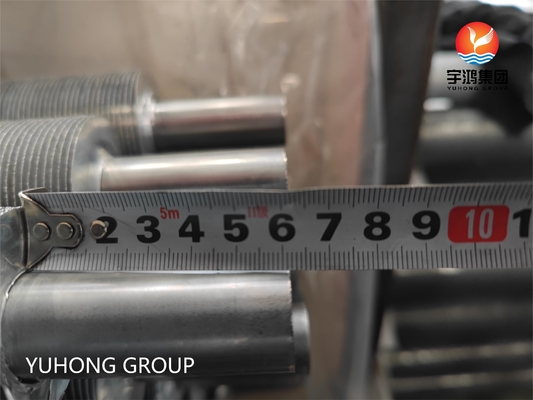

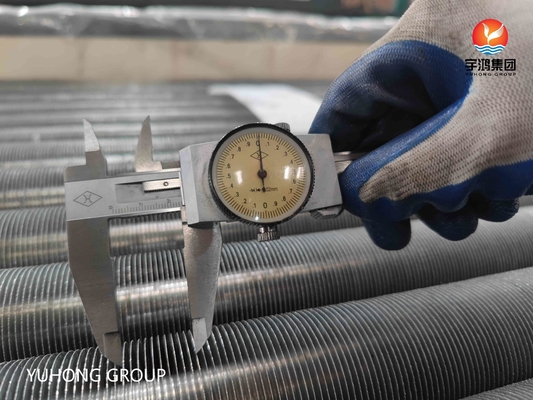

Dimensional verification

Yuhong Holding Group combines advanced manufacturing technology with stringent quality control to deliver superior finned tube solutions. Our experienced technical team provides comprehensive support from design to after-sales service.

With 20 years of excellence in finned tube manufacturing and exports to 80+ countries, our 20,000-square-meter facility houses 55 advanced production lines operated by 110+ skilled professionals.
