Stainless Steel Extruded Fin Tubes TP304 With AL1060 Fins For Condenser

Brand Name:	YUHONG
Model Number:	ASME SA249
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Product:

Fin Tubes Or Finned Tube

Type:

Extruded Finned Tubes

Standard:

ASME SA249

Material:

Welded Base Tubes TP304 And AL1060 Fins

Wall Thickness:

Generally Min. Wall Thickness For SA249 Base Tubes

Size And Length:

According To Clients' Need ( Length 500mm Min )

Radiator / Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

AL1060 Fins Extruded Fin Tubes

Condenser Extruded Fin Tubes

TP304 Extruded Fin Tubes

Product Description

Stainless Steel Extruded Fin Tubes TP304 With AL1060 Fins For Condenser

Product Specifications

Attribute	Value
Product	Fin Tubes or Finned Tube
Type	Extruded Finned Tubes
Standard	ASME SA249
Material	Welded Base Tubes TP304 and AL1060 Fins
Wall Thickness	Generally min. wall thickness for SA249 base tubes
Size and length	According to clients' need (length 500mm min)
Use	Radiator / Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air cooler, etc
Packing	Ply-wooden Case With Iron Frame

Extruded Finned Tubes Overview

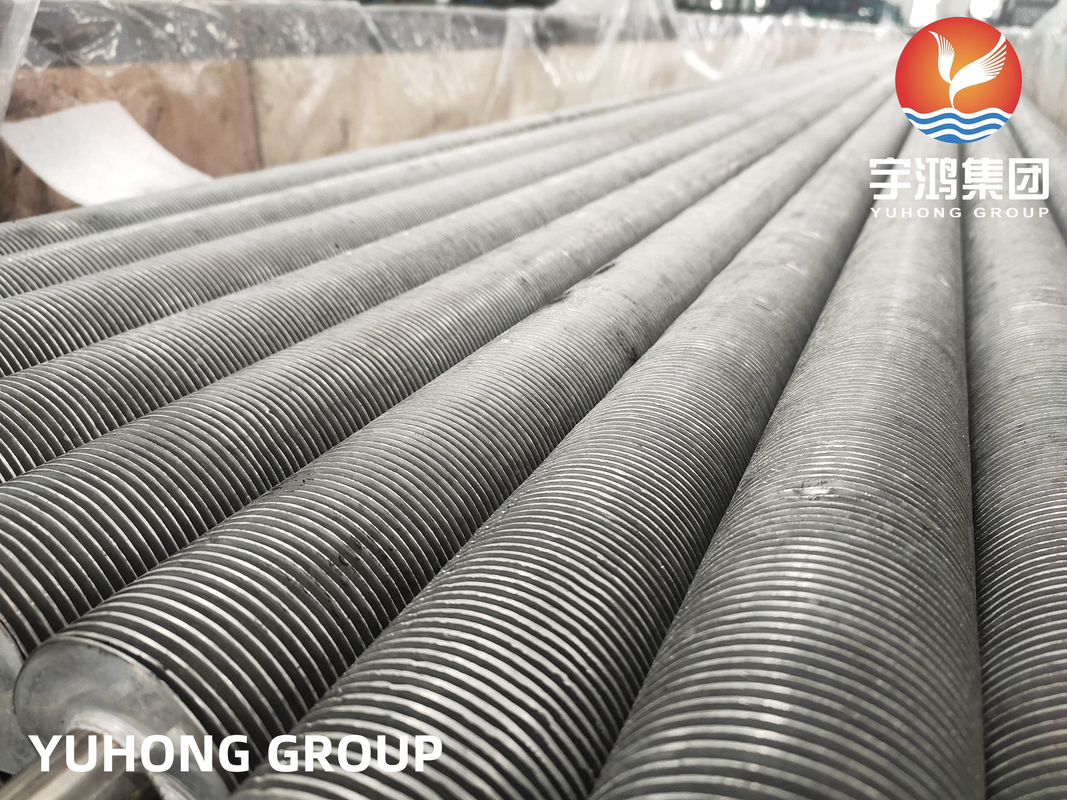

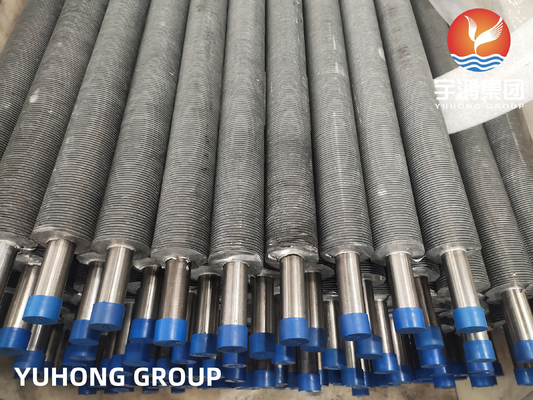

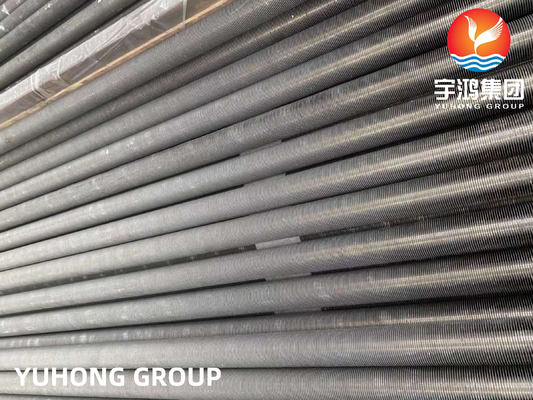

Extruded finned tubes are bimetallic tubes whose outer aluminium surface is finned by cold plastic deformation.

The general materials of base tubes about the extruded finned tube are carbon steel, copper, alloy, stainless steel; the general materials of fins about the extruded finned tube are copper, aluminum 1060/1070, aluminum alloy 6063/6061. Therefore, it is generally divided into four categories:

Steel aluminum composite finned tubes
Copper aluminum composite finned tubes
Pure aluminum composite finned tubes
Pure copper composite finned tube

ASME SA249 Welded Base Tubes Specifications

SA249 specification covers nominal-wall-thickness welded tubes and heavily cold worked welded tubes, with various grades intended for such use as boiler, superheater, heat exchanger, or condenser tubes.

Chemical Composition (%) max

Grade	C	Mn	P	S	Si	Cr	Ni
TP304	0.08	2.00	0.045	0.030	1.00	18.0-20.0	8.0-11.0

Mechanical Properties

Grade	Tensile Strength min	Yield Strength min	Elongation in 2" or 50mm min
TP304	75ksi (515 MPa)	30ksi (205 MPa)	35%

Applications of Extruded Finned Tubes

Operating temperatures less than 300°C
Offshore or other remote applications
Dry air coolers for air, gas or oil
Air to air heat exchangers for HVAC applications
Air dehumidification in air treatment plants
Energy recovery in air exhaust system

Advantages of Steel Aluminum Composite Extruded Finned Tubes

The processing technology of steel and aluminum cold-rolled fin tube consists of aluminum tube and steel pipe being processed into bimetal composite tube, and then forming fin after mechanical cold rolling.

Based on the physical characteristics of aluminum tube, the tube with steel tube as the core and the cold rolled aluminum fin are made into a finned tube. Widely used in steel, petroleum, chemical industry, machinery, shipbuilding, power stations and hospitals and food industries.

High heat transfer performance, small contact thermal resistance
The contact area between the fin and the pipe is large, the fit is tight and reliable
Good corrosion resistance, stable long-term use performance
The fin has good rigidity and is not easy to deform

Specifications For Various Types Of Finned Tubes

Type	Description	Base tube O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
Low fin tube / T-type fin tube		10-38	0.6~2	<1.6	~0.3
Bamboo tube / corrugated tube		16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL fin type	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
H / HH type fin tube		25-63	8~30	<200	1.5-3.5
Studed fin tube		25-219	8~30	5~35	φ5-20
