Extruded Fin Tube, Base Tube ASME SA179, Fin Material ASME SB221 Al 1060, Air Cooler Application

Brand Name:	YUHONG
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Ply-Wooden Case +Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

SA179

Base Tube Material Standard:

ASME SB221

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube

Fin Material:

Aluminum ,Copper, Stainless Steel, Carbon Steel

Supply Ability:

10000 tons/month

Highlight:

Fin Material Extruded Fin Tube

Extruded Fin Tube ASME SB221

ASME SA179 carbon steel

Product Description

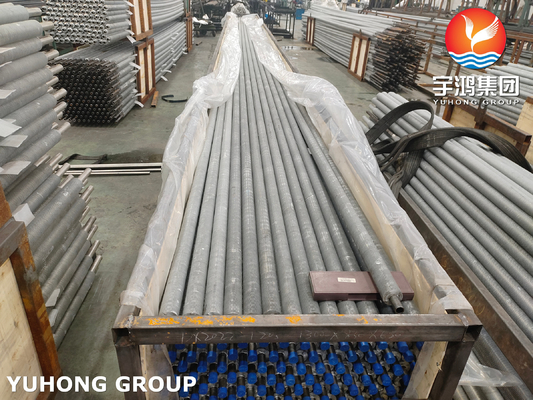

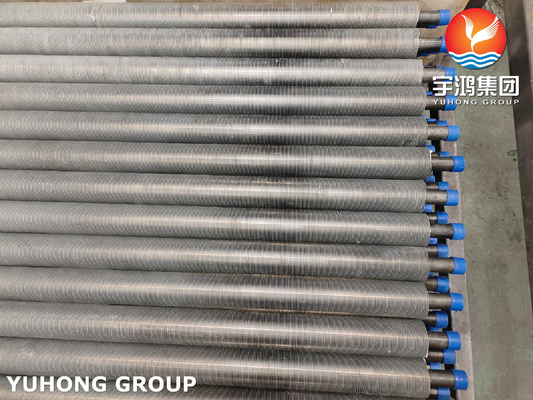

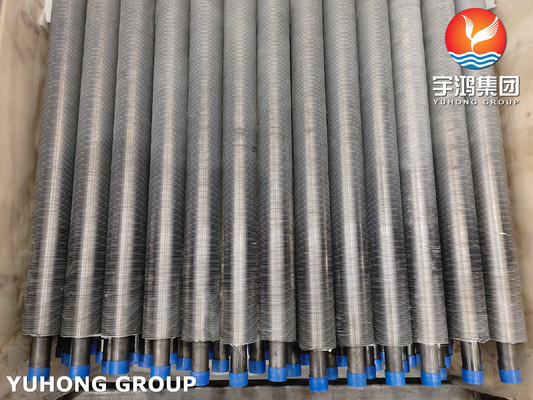

Extruded Fin Tube, Base Tube ASME SA179, Fin Material ASME SB221 Al 1060, Air Cooler Application

Product Specifications

Attribute	Value
Base Tube Material Grade	SA179
Base Tube Material Standard	ASME SB221
Type	Straight Tube, U bend Tube, Coil Tube
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

Yuhong Holding Group brings over 35 years of expertise in manufacturing steel pipes and fin tubes, specializing in applications for petrochemical, oil refinery, furnace, heating, boiler, heat exchanger, and air cooler systems. Our YUHONG brand products are exported to more than 85 countries worldwide and have earned an excellent market reputation.

We supply a wide variety of extruded fin tubes, all domestically sourced, developed, and produced to ensure immediate availability and the highest quality standards. Our extruded fin tubes feature:

Strong fin-to-tube connection resistant to heat stress, oxidation, and corrosion
Suitable for high temperature and high pressure applications
Excellent heat transfer properties and longevity
Superior corrosion protection for the base tube

Technical Specifications:

Tube/Pipe Size (OD): 15.88mm to 76.2mm
Maximum Fin Tube Length: 34m

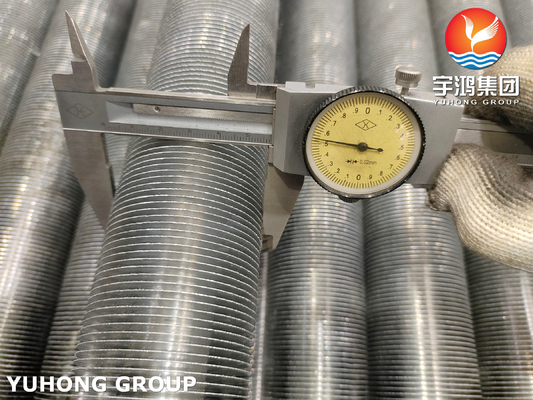

Fin Height: 10mm to 50.8mm
Fin Thickness: 0.2mm to 0.5mm
Fin Pitch: 1 to 20 fins per inch
Base Tube Materials: Carbon Steel, Alloy Steel, Stainless Steel, Corrosion-resistant Steel

ASME SA179 Chemical Composition (%)

C	Si	Mn	P	S	Result
0.06~0.18	/	0.27~0.63	≤0.035	≤0.035	/

ASME SA179 Tensile Test ASTM A370-20

Tensile Strength: Rm (Mpa)	Yield Strength: Rp 0.2(Mpa)	Elongation: A (%)
≥325	≥180	≥35

Company Advantages

20,000 square meters workshop with 20 finning machines
Daily extrusion capacity up to 30,000 meters
Strategic location near Shanghai Port (less than 2 hours' drive)
High rigidity tubes suitable for extreme temperature and pressure conditions

Applications

Our extruded fin tubes are ideal for various heat transfer equipment including:

Heat Exchangers
Boilers
Economizers
Super Heaters
Fired Heaters
HRSG
Waste Heat Recovery Systems
Air Coolers
Cooling Towers
