Extruded Fin Tube , ASTM B163 Incoloy 825 Base Tube , Fin Material Aluminum

Brand Name:	YUHONG
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube
MOQ:	1 PC
Price:	1 - 10000 USD
Payment Terms:	L/C, T/T
Supply Ability:	10000 Tons/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

UNS NO8825 , Incoloy 825 , Alloy 825

Base Tube Material Standard:

ASTM B163 , ASME SB163

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Packaging Details:

Ply-Wooden Case + Iron Frame

Supply Ability:

10000 Tons/Month

Highlight:

Incoloy 825 Extruded Fin Tube

Extruded Fin Tube Aluminum

ASTM B163

Product Description

Extruded Fin Tube, ASTM B163 Incoloy 825 Base Tube, Fin Material Aluminum

Product Attributes

Attribute	Value
Base Tube Material Grade	UNS NO8825, Incoloy 825, Alloy 825
Base Tube Material Standard	ASTM B163, ASME SB163
Type	Straight Tube, U bend Tube, Coil Tube
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type	Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

Extruded fin tubes with a base tube made of ASTM B163 Incoloy are specialized components designed for high-performance heat transfer applications. Incoloy, a family of nickel-chromium-based superalloys, provides excellent resistance to oxidation, corrosion, and high-temperature environments, making it an ideal choice for demanding applications. Their excellent thermal performance, combined with the robust properties of Incoloy, makes them suitable for a wide range of high-temperature and corrosive applications across various industries.

Advantages

High Thermal Efficiency:
- Improved Heat Transfer: The extruded fins increase the surface area, enhancing heat transfer efficiency.
- Effective Bonding: The extrusion process ensures effective bonding between the aluminum fins and the Incoloy base tube, maximizing thermal performance.
Durability and Longevity:
- Corrosion and Oxidation Resistance: Incoloy provides excellent resistance to corrosion and oxidation, ensuring long-term durability in harsh environments.
- Mechanical Strength: The robust construction ensures the mechanical integrity of the finned tubes under thermal and mechanical stresses.
Versatility:
- Wide Range of Applications: Suitable for various industries, including petrochemical, power generation, chemical processing, oil and gas, marine, and industrial processes.
- High-Temperature Capability: Incoloy's high-temperature performance makes these finned tubes ideal for applications involving extreme temperatures.

Features of Extruded Fin Tubes with ASTM B163 Incoloy Base Tube

Construction:

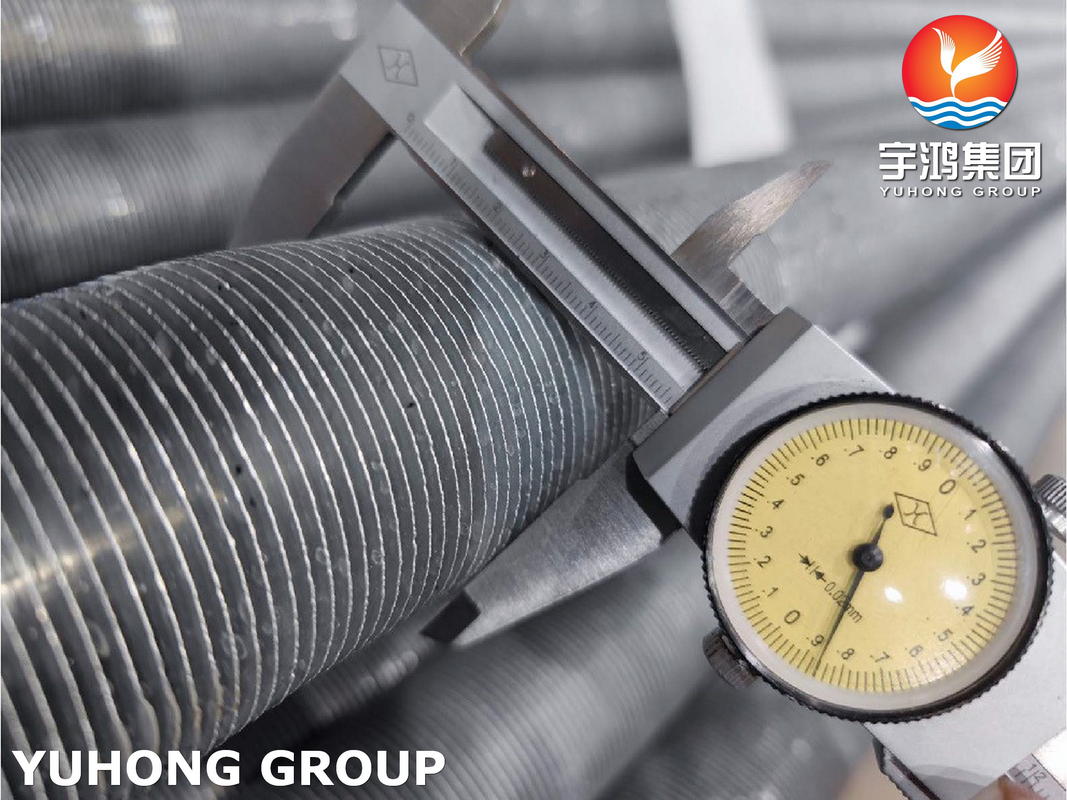

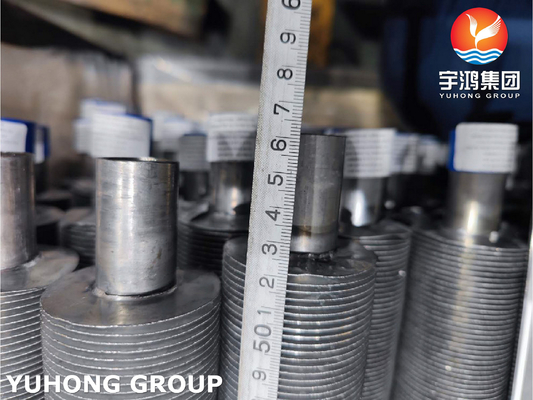

Extrusion Process: The fins are extruded from an aluminum sleeve onto the Incoloy base tube, ensuring a strong mechanical bond and maximizing heat transfer efficiency.
Enhanced Surface Area: The fins increase the surface area of the tube, facilitating improved heat transfer between the process fluid inside the tube and the surrounding air or other cooling mediums.

YUHONG GROUP Fin Tube Specification

Type	Description	Base tube O.D. (mm)	Fin Pitch (mm)	Fin Height (mm)	Fin Thick (mm)
Extruded	Single Metal Combined Metal	8-51	1.6-10	<17	0.2-0.4
Low Fin tube t-type fin tube		10-38	0.6-2	<1.6	~0.3
Bamboo tube corrugated tube		16-51	8~30	<2.5	/

Equivalent Material

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

Chemical Composition

Element	Ni	Cr	Mo	Cu	Ti	Fe	C	Mn	S	Si	Al
%	38.0-46.0	19.5-23.5	2.5-3.5	1.5-3.0	0.6-1.2	22.0 min (~33%)	0.05 max	1.0 max	0.03 max	0.5 max	0.2 max

Mechanical Properties

Incoloy (ASTM B163): Incoloy alloys, such as Incoloy 800, Incoloy 800H, and Incoloy 825, are known for their high strength, excellent resistance to oxidation and carburization at elevated temperatures, and good corrosion resistance in a variety of environments.
Aluminum Fins: Typically, the fins are made from aluminum due to its excellent thermal conductivity and lightweight properties. The extrusion process creates a strong bond between the aluminum fins and the Incoloy base tube.

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.14 g/cm3	1400 °C (2550 °F)	Psi - 80,000, MPa - 550	Psi - 32,000, MPa - 220	30 %

Applications

Petrochemical and Refinery Industry
Power Generation
Chemical Processing
Oil and Gas Industry
Marine Applications
High-Temperature Furnaces
