Extruded Fin Tube
>
Extruded Fin Tube With Base Tube ASME SA249 TP304 Aluminum Fin Applied For Heat Exchanger

Extruded Fin Tube With Base Tube ASME SA249 TP304 Aluminum Fin Applied For Heat Exchanger

Brand Name: YUHONG
Model Number: Extruded Fin tube , Aluminum Extruded Fin tube
MOQ: 1 PC
Price: 1 - 10000 USD
Packaging Details: Ply-Wooden Case + Iron Frame
Payment Terms: L/C, T/T
Detail Information
Place of Origin:
China , Korea
Certification:
ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001
Base Tube Material Grade:
TP304L
Base Tube Material Standard:
ASTM A249 , ASME SA249
Type:
Straight Tube , U Bend Tube , Coil Tube
Application:
Air Cooler, Cooling Tower, Heat Exchanger, Condenser
Fin Type:
Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube
Fin Material:
Aluminum , Copper , Stainless Steel , Carbon Steel
Supply Ability:
10000 Tons/Month
Highlight:

ASME SA249 extruded fin

,

extruded fin TP304L

,

Straight Aluminum Fin

Product Description
Extruded Fin Tube With Base Tube ASME SA249 TP304 Aluminum Fin Applied For Heat Exchanger
Product Specifications
Base Tube Material Grade TP304L
Base Tube Material Standard ASTM A249, ASME SA249
Type Straight Tube, U Bend Tube, Coil Tube
Application Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube
Fin Material Aluminum, Copper, Stainless Steel, Carbon Steel
Product Description

Extruded Fin Tube with Base Tube ASME SA249 TP304L Aluminum Fin is a specialized component designed to enhance heat transfer efficiency in heat exchangers, boilers, and other thermal systems. The base tube is constructed from TP304L stainless steel, offering excellent corrosion resistance and weldability, while the aluminum fins significantly increase the surface area for improved heat exchange.

Key Features
  • Material Properties: TP304L stainless steel base tube provides superior weldability and corrosion resistance; aluminum fins offer excellent thermal conductivity

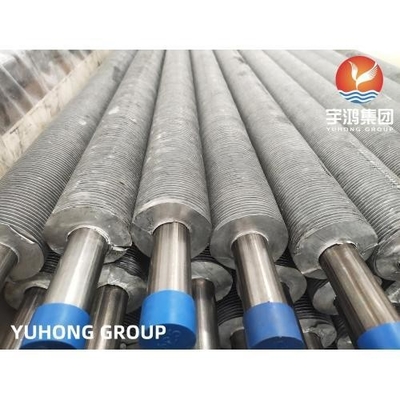

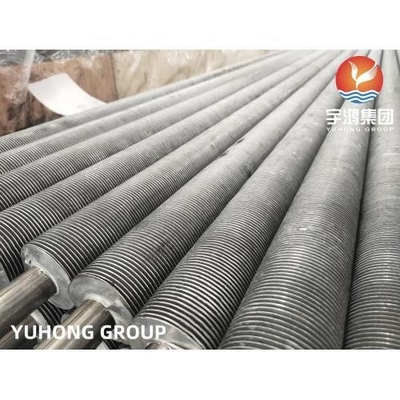

  • Construction: Fins are extruded from aluminum sleeve onto the base tube, creating a strong mechanical bond and maximizing heat transfer efficiency
  • Enhanced Surface Area: Fins significantly increase heat transfer surface between process fluid and surrounding medium
Advantages
  • Enhanced heat transfer efficiency through increased surface area
  • Excellent corrosion resistance, especially in welded applications
  • Superior weldability for easy system integration
  • Lightweight construction with high thermal efficiency
  • Durable mechanical bond between fins and base tube
Manufacturing Specifications
Sr. No Particulars Range
1 Base Tube Material Stainless Steel, Carbon Steel, Alloy Steel, Titanium, Copper, Duplex Stainless Steel, Inconel
2 Base Tube Outside Diameter 12.70 mm to 38.10 mm
3 Base Tube Thickness 1.50 mm And Above
4 Base Tube Length 500 mm Min To 15000 mm
5 Fin Material Aluminum, Copper
6 Fin Thickness 0.3mm to 0.65mm
7 Fin Density 197 FPM (5 FPI) to 433 FPM (11 FPI)
8 Fin Height 9.8 mm to 16.00 mm
9 Bare Ends As per Client Requirement
10 Manufacturing Capacity 5,00,000 Meter Per Annum
Applications
Heat Exchangers

Air-Cooled Heat Exchangers, Shell and Tube Heat Exchangers

Boilers

Industrial Boilers, Power Plant Boilers

HVAC Systems

Heating, Ventilation, Air Conditioning, Air Handlers

Chemical Processing Plants

Heat Recovery Systems, Process Cooling

Oil and Gas Industry

Refineries, Petrochemical Plants

Power Generation

Steam Turbines, Cooling Towers

Marine Applications

Shipboard Heat Exchangers
