Extruded Fin Tube With Base Tube ASME SB163 NO4400 And Aluminum Fin

Brand Name:	YUHONG
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

Monel 400 , NO4400 , 2.4360

Base Tube Material Standard:

ASTN B163 , ASME SB163

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

steel Fin Tube ASME SB163

steel Fin Tube NO4400

Aluminum Fin 20mm

Product Description

Extruded Fin Tube With Base Tube ASME SB163 NO4400 And Aluminum Fin

Product Specifications

Attribute	Value
Base Tube Material Grade	Monel 400, NO4400, 2.4360
Base Tube Material Standard	ASTN B163, ASME SB163
Type	Straight Tube, U bend Tube, Coil Tube
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

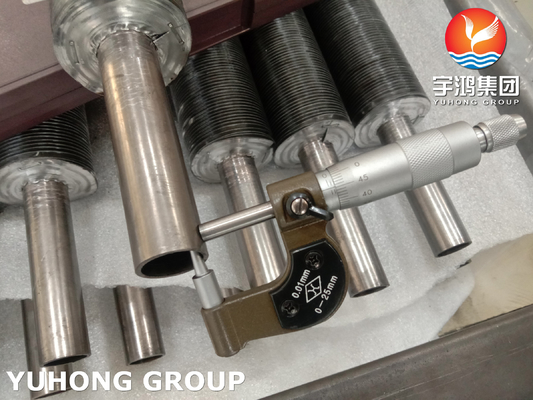

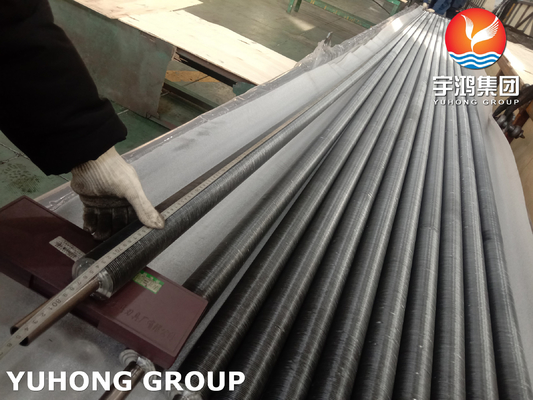

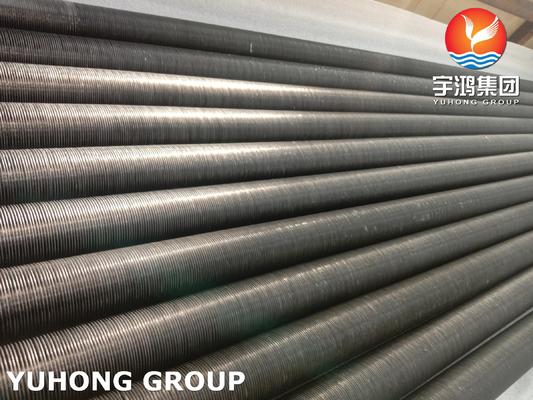

Extruded fin tubes feature fins formed by extruding a sleeve of aluminum or other materials over a base tube, creating a strong mechanical bond. This process delivers high-efficiency heat transfer with exceptional durability and resistance to thermal and mechanical stresses.

Widely used in air-cooled heat exchangers (ACHEs), these tubes provide superior heat transfer capabilities and robust construction. They efficiently transfer heat from process fluids within the tubes to surrounding air through the attached fins.

As integral components in industrial cooling systems, extruded fin tubes offer high efficiency, durability, and reliability across various applications. Their enhanced heat transfer performance and rugged construction make them ideal for demanding environments requiring efficient cooling and long service life.

Technical Specifications

Base Tube Details

Tube Diameter: 20 mm OD Min to 219 mm OD Max
Tube Thickness: Minimum 2 mm up to 16mm
Tube Material: Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel, Super Duplex Steel, Inconel, High Chrome High Nickel & Incolloy, CK 20 material

Fin Details

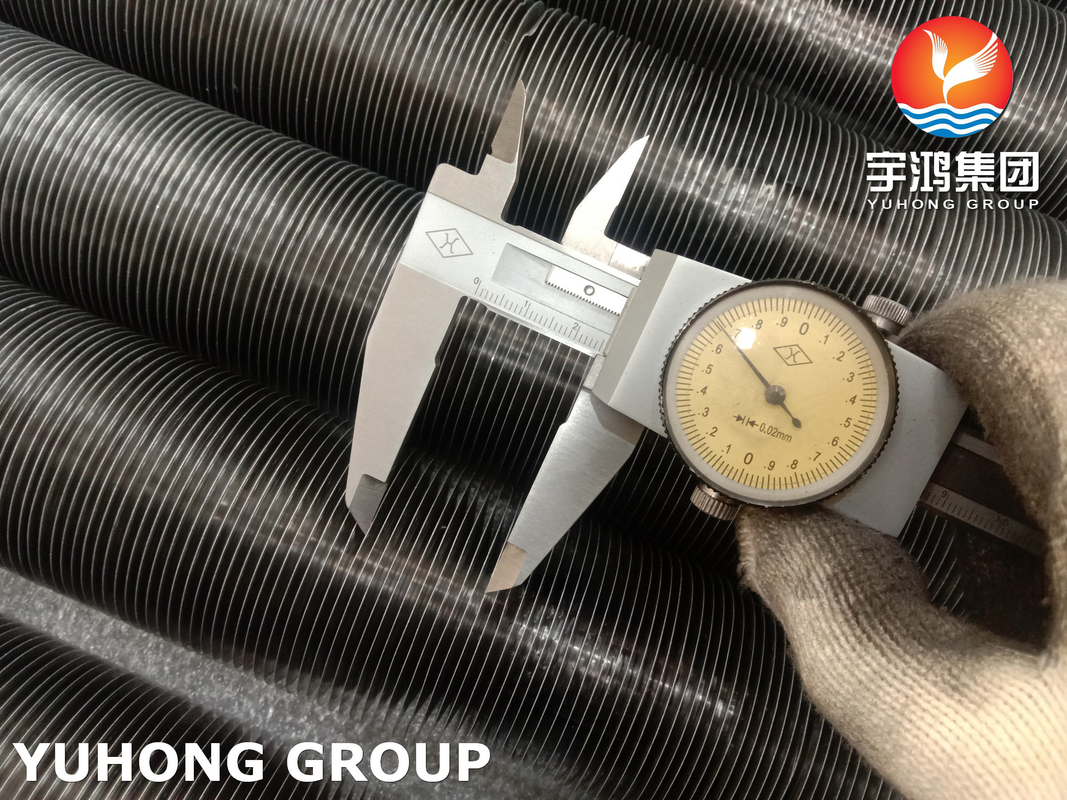

Fins Thickness: Min. 0.8 mm to Max. 4 mm
Fins Height: Min 0.25" (6.35 mm) To Max.1.5" (38 mm)
Fin Density: Min 43 Fins Per Meter To Max. 287 Fins Per Meter
Material: Carbon Steel, Stainless Steel, Alloy Steel, Corten steel, Duplex Steel and Incolloy

Monel 400 Alloy Properties

Monel 400 is a nickel-copper alloy (67% Ni - 23% Cu) resistant to seawater, high-temperature steam, salt, and caustic solutions. This solid solution alloy can only be hardened by cold working, offering excellent corrosion resistance, weldability, and high strength. Its low corrosion rate in brackish or seawater and resistance to stress-corrosion cracking make it ideal for marine applications and non-oxidizing chloride solutions.

Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Monel 400	0.30 max	2.00 max	0.50 max	0.24max	28.0-34.0	2.50 max	63.00 min	–

Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Monel 400	8.8 g/cm3	1350 °C (2460 °F)	Psi – 80,000, MPa – 550	Psi – 35,000, MPa – 240	40 %

Physical Properties

Properties	Metric	Imperial
Density	8.8 gm/cm3	0.318 lb/in3

Pressure Rating

Tube O.D.(in.)	Wall Thickness of Tube (inches)
Tube O.D.(in.)	.028	.035	.049	.065	.083	.095	.109	.120
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

Applications

Marine engineering
Chemical and hydrocarbon processing equipment
Gasoline and freshwater tanks
Crude petroleum stills
De-aerating heaters
Boiler feed water heaters and other heat exchangers
Valves, pumps, shafts, fittings, and fasteners
Industrial heat exchangers
Chlorinated solvents
Crude oil distillation towers
