Extruded Fin Tube , ASME SA249 TP304 Finned Tube For Heat Exchanger , Air Cooler

Brand Name:	YUHONG
Model Number:	Extruded Fin tube , Aluminum Extruded Fin tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

TP304

Base Tube Material Standard:

ASTM A249, ASME SA249

Type:

Straight Tube , U Bend Tube , Coil Tube

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

Extruded Fin Tube , Aluminum Extruded Fin Tube , Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

TP304 Extruded Fin Tube

Extruded Fin Tube For Heat Exchanger

Air Cooler ASME SA249

Product Description

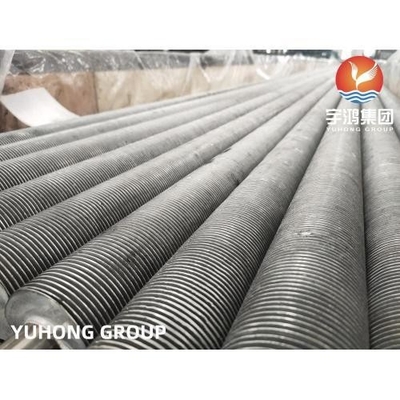

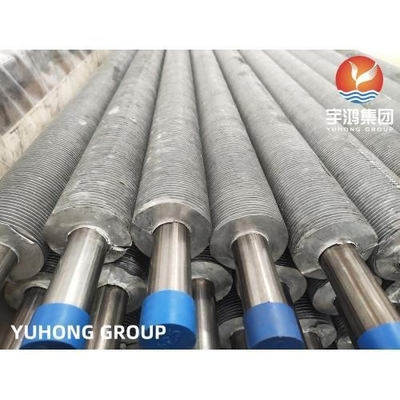

Extruded Fin Tube, ASME SA249 TP304 Finned Tube For Heat Exchanger, Air Cooler

Product Specifications

Attribute	Value
Base Tube Material Grade	TP304
Base Tube Material Standard	ASTM A249, ASME SA249
Type	Straight Tube, U Bend Tube, Coil Tube
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	Extruded Fin tube, Aluminum Extruded Fin tube, Fin tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

ASME SA249 TP304 is a specification for welded austenitic steel boiler, superheater, heat-exchanger, and condenser tubes. TP304 refers to the grade of stainless steel used in the tubes.

Finned Tubes are tubes that have fins attached to their outer surface. These fins increase the surface area of the tube, allowing for better heat transfer between the fluid inside the tube and the surrounding environment.

A finned tube heat exchanger is a type of heat exchanger that uses finned tubes to transfer heat between two fluids. One fluid flows inside the tubes, while the other fluid flows over the fins on the outside of the tubes. This design maximizes the heat transfer efficiency of the exchanger.

The ASME SA249 TP304 finned tubes for heat exchangers are specifically designed and manufactured to meet the requirements of the ASME SA249 specification. They are made from TP304 stainless steel, which is known for its excellent corrosion resistance and high-temperature strength.

Detailed Specifications

Specification:	ASME SA249	Grade:	TP304
Application:	Oil Cooler, Pre Heater, Radiator, Air Conditioner Evaporator	Type:	Extruded
Fin Grade:	Al 1060	Shape:	Round

Chemical Composition

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (μm/m/°C)	Thermal Conductivity (W/m.K)	Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nΩ.m)
304	8000	193	17.2	16.2	500	720

Applications

Air-cooled heat exchangers: These finned tubes are used in air-cooled heat exchangers to transfer heat from hot process fluids to the surrounding air. The fins on the tubes increase the surface area, allowing for efficient heat transfer.

Shell and tube heat exchangers: SA249 TP304 finned tubes are also used in shell and tube heat exchangers, where they are placed inside a shell and fluid flows through the tubes.

Condensers: Finned tubes are commonly used in condensers, where they help in the condensation of vapors by transferring heat from the vapor to the surrounding cooling medium.

Radiators: Radiators in various industrial and automotive applications also use finned tubes to dissipate heat efficiently.
