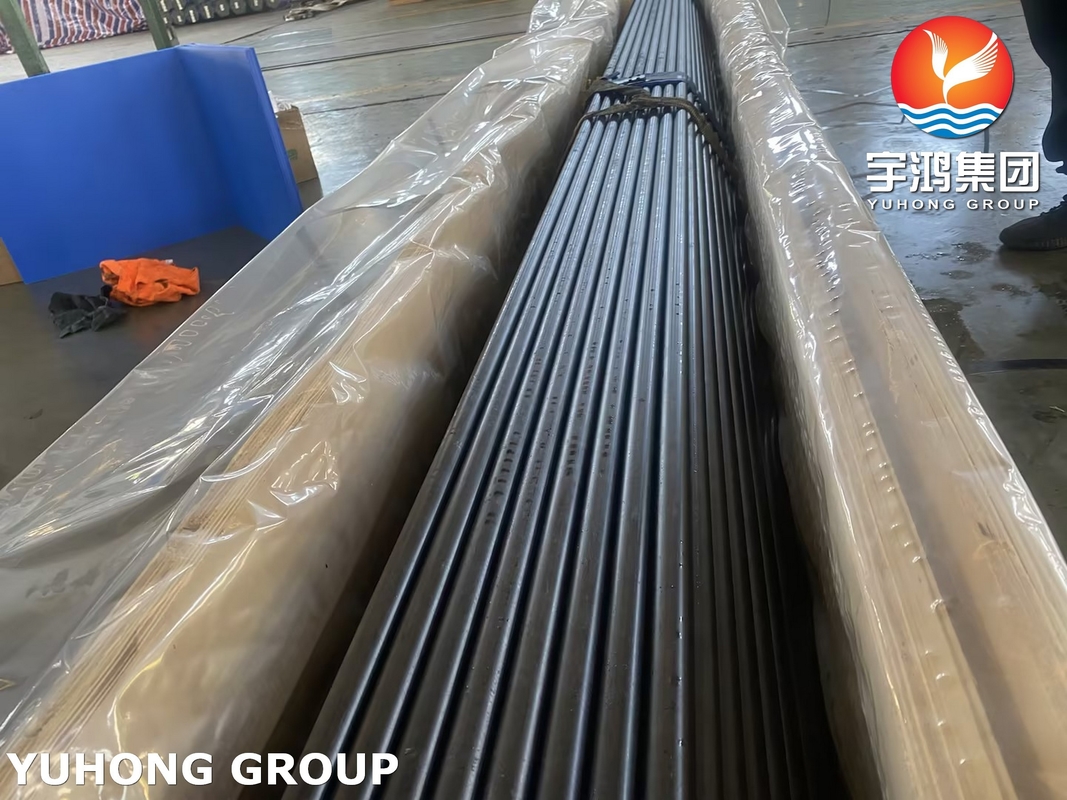

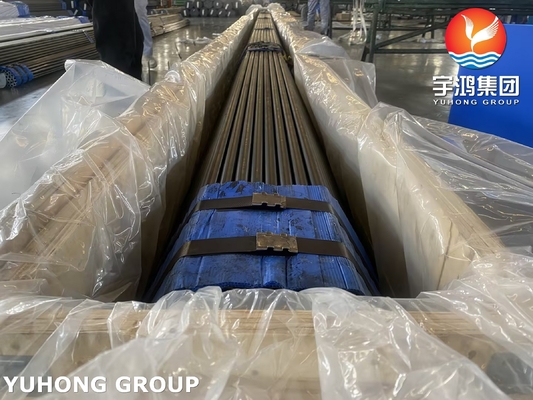

ASME SA179 Carbon Steel Tube For Heat Exchangers Condensers

Brand Name:	YUHONG
Model Number:	Boiler Tube
MOQ:	1PC
Price:	10-1000 USD/PC
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China, Korea

Certification:

ASME, ASTM, ABS, DNV-GL, LR, BV, CCS, KR, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Standards:

ASTM A179 , ASME SA179

Materials:

SA179

Ends:

PE, BE

Application:

Heat Exchangers , Boilers , Condensers

Supply Ability:

10000 TONS PER MONTH

Highlight:

SA179 Carbon Steel Boiler Tube

Heat Exchangers Carbon Steel Boiler Tube

Condensers carbon steel tube

Product Description

ASME SA179 Carbon Steel Tube For Heat Exchangers Condensers

Product Specifications

Attribute	Value
Standards	ASTM A179, ASME SA179
Materials	SA179
Ends	PE, BE
Application	Heat Exchangers, Boilers, Condensers

Product Description

The ASME SA179 Carbon Steel Tube is a seamless cold-drawn tube widely used in heat exchangers, condensers, and boilers due to its excellent thermal conductivity, durability, and resistance to high-temperature environments. This specification is part of the ASME (American Society of Mechanical Engineers) standards, which ensure high-quality materials for pressure vessels and piping systems.

Key Features and Benefits

High Heat Transfer Efficiency: The seamless cold-drawn structure allows for enhanced heat transfer, making it ideal for heat exchangers and condensers.
Excellent Dimensional Accuracy: Cold drawing ensures tight tolerances and uniformity in wall thickness, which is crucial for high-pressure systems.
Resistance to Corrosion and High Pressure: The material is designed to withstand corrosive environments and high-pressure applications.
Versatility: It can be used in a wide range of industries, including power plants, chemical processing, oil refineries, and marine applications.

Chemical Composition

Grade	C	Mn	P	S
ASME SA179	0.06 - 0.18	0.27 - 0.63	≤ 0.035	≤ 0.035

Mechanical Properties

Grade	Yield Strength	Tensile Strength	Elongation (in 2")
ASME SA179	≥ 180 MPa (26,000 psi)	≥ 325 MPa (47,000 psi)	≥ 35%

Applications

Heat Exchangers: Efficient in transferring heat between fluids due to its high thermal conductivity.
Condensers: Suitable for cooling and condensing steam in power plants.
Boilers: Withstands high pressure and temperature in boiler systems.
General Engineering: Utilized in oil refineries, chemical industries, and marine applications.
