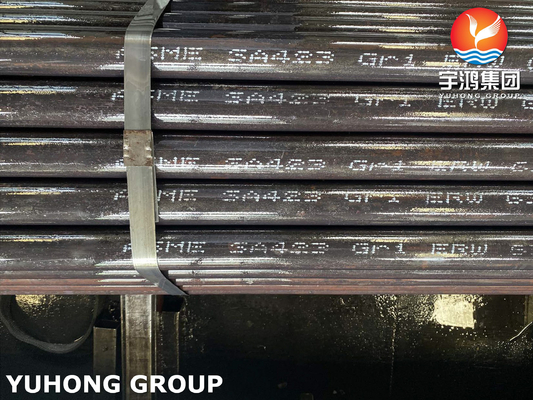

ASME SA423 GR.1 Low Alloy Steel Welded Tube For Boiler And Superheater

Brand Name:	YuHong
Model Number:	ASME SA423 GR.1 ERW Tube
MOQ:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Plastic Caps on Tube's Both Ends
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, ABS, BV, ISO, ASTM, SGS

Product Name:

Low Alloy Steel Welded Tube

Tube Specification:

ASTM A423/ ASME SA423

Tube Material:

Tube Type:

Tube's OD&WE:

Depend On Customer

Tube's Length:

Depend On Customer

Tube's End:

Plain End

Application:

Superheater, Heat-Exchanger, Boiler

Supply Ability:

According to Clients' requirements

Highlight:

GR.1 alloy steel boiler tube

Superheater alloy steel boiler tube

SA423 alloy steel tube

Product Description

ASME SA423 GR.1 Low Alloy Steel Welded Tube For Boiler And Superheater

Product Specifications

Product Name

Low Alloy Steel Welded Tube

Tube Specification

ASTM A423/ ASME SA423

Tube material

Gr.1

Tube Type

ERW

Tube's OD&WE

Depend on Customer

Tube's length

Depend on Customer

Tube's End

Plain end

Application

Superheater, Heat-Exchanger, Boiler

Product Description

ASME SA423 Grade 1 Electric Resistance Welded (ERW) tube is a low-alloy steel tube manufactured using the electric resistance welding process. This specification covers low-alloy steel tubes designed for high-temperature and high-pressure service, particularly in boilers and heat exchangers, with excellent resistance to atmospheric corrosion.

Material Composition

Composition, %	Grade 1	Grade 2	Grade 3
Carbon, max	0.15	0.15	0.15
Manganese	0.55 max	0.50-1.00	0.70-1.40
Phosphorus	0.06-0.16	0.04 max	0.020 max
Sulfur, max	0.060	0.05	0.020
Silicon	0.10 min	...	0.55 max
Copper	0.20-0.60	0.30-1.00	0.25-0.45
Chromium	0.24-1.31	...	...
Nickel	0.20-0.70	0.40-1.10	0.50 max
Molybdenum	...	0.10 min	0.20 max
Antimony	...	...	0.05-0.15

Mechanical Properties

Property	Grades 1 and 2	Grade 3
Tensile Strength	415 MPa (60,000 psi)	380 MPa (55,000 psi)
Yield Strength	255 MPa (37,000 psi)	230 MPa (33,000 psi)
Elongation, min (%), (in 50 mm / 2 in)	25	35
Hardness (Brinell/Rockwell)	≤ 170 HBW / ≤ 87 HRB

Standards & Specifications

ASME SA423: Standard specification for seamless and welded low-alloy steel tubes for boilers and superheaters
Grade 1: Optimized for high-temperature service applications
Complies with ASME Boiler and Pressure Vessel Code (BPVC) Section II for material properties

Testing & Inspection

Hydrostatic testing, ultrasonic testing (UT), or eddy current testing to ensure weld integrity
Chemical and mechanical property verification per ASTM/ASME standards

Key Advantages

Cost-Effective: More economical than seamless tubes while maintaining high strength and durability
High-Temperature Resistance: Chromium-molybdenum (Cr-Mo) alloy provides excellent creep resistance up to 450°C (850°F)
Good Weldability: ERW process ensures strong, uniform welds without filler metals
Consistent Quality: Precise dimensional control for reliable performance in pressure applications
Corrosion Resistance: Resists oxidation and scaling in steam/high-heat environments
ASME Compliance: Meets strict Boiler & Pressure Vessel Code standards for safety

Primary Applications

Power Generation: Boiler tubes in thermal power plants, superheaters & reheaters, heat exchangers & condensers
Oil & Gas / Petrochemical: Refinery heat exchangers, high-temperature pipelines, furnace components
Industrial Process Equipment: Chemical processing units, pressure vessels, thermal fluid systems
District Heating Systems: Hot water supply pipelines, steam distribution networks
