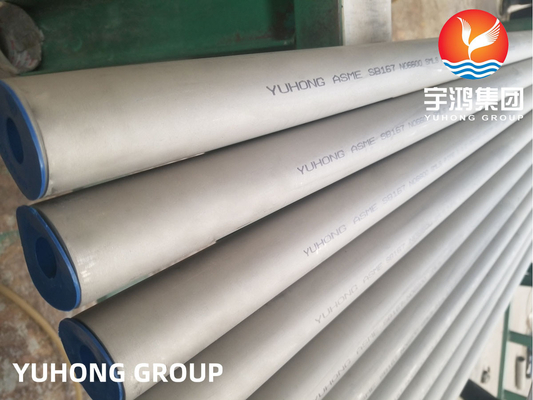

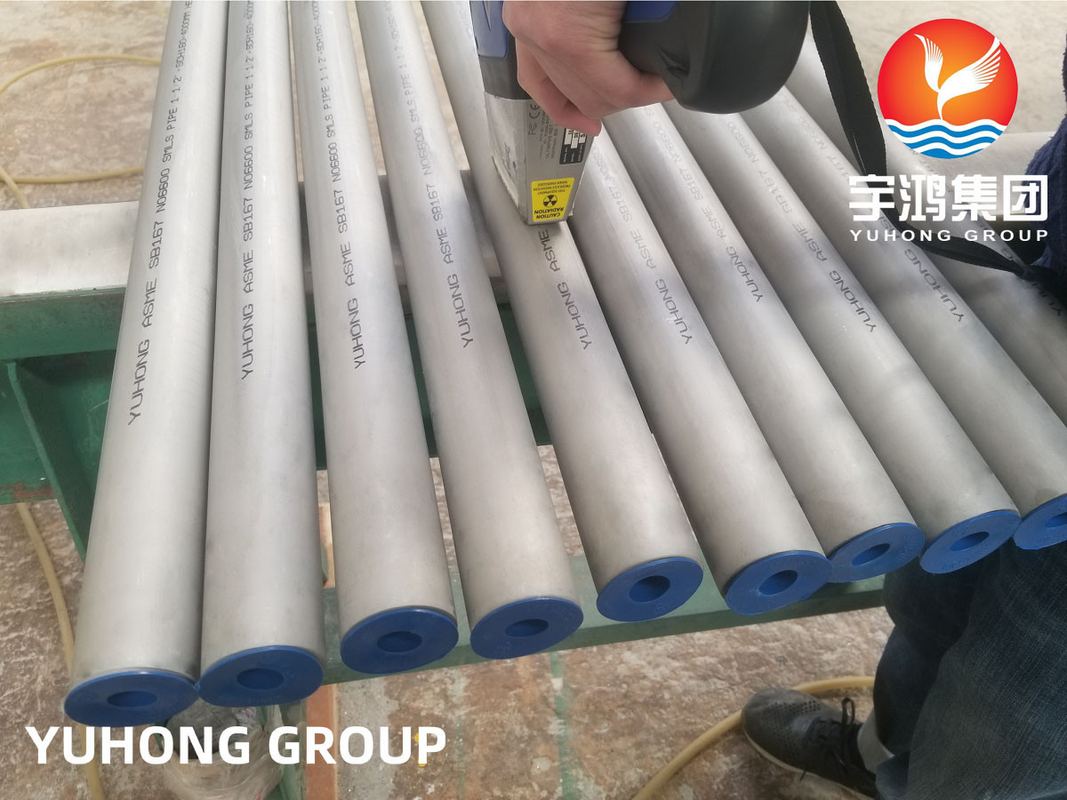

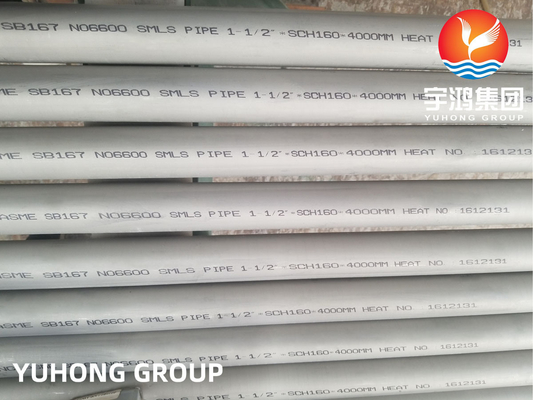

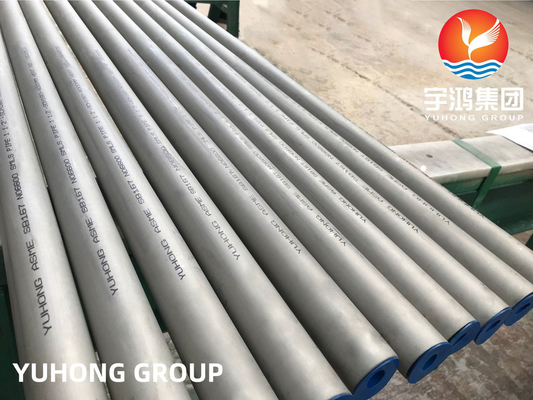

N06600 ASTM B167 Nickel Alloy Steel Seamless Tube For Power Generation

Brand Name:	YUHONG
Model Number:	Seamless Tube
MOQ:	1PC
Price:	1 - 10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Material Grade:

N06600

Material Standard:

ASTM B167 , ASME SB167

ET, UT, HT, PT, PMI

Size Of OD:

6mm ~ 219.1mm

Wall Thickness:

1mm ~ 50mm

Length:

Max.: 26m/pc

Supply Ability:

10000 Tons/Month

Highlight:

N06600 steel seamless tube

B167 steel seamless tube

Power Generation seamless steel pipe

Product Description

N06600 ASTM B167 Nickel Alloy Steel Seamless Tube For Power Generation

Product Specifications

Attribute	Value
Material Grade	N06600
Material Standard	ASTM B167, ASME SB167
NDT	ET, UT, HT, PT, PMI
Size of OD	6mm ~ 219.1mm
Wall Thickness	1mm ~ 50mm
Length	Max.: 26m/pc

Product Description

ASTM B167 N06600 Nickel Alloy Steel Seamless Tube For Power Generation

ASTM B167 covers nickel-chromium-based Alloy 600 in the form of seamless tubes. Alloy 600 is a solid-solution strengthened, nickel-chromium alloy with excellent oxidation and corrosion resistance, particularly at high temperatures. This alloy is often used in extreme environments, such as those encountered in heat exchangers, chemical processing, and aerospace applications.

Alloy 600 maintains its strength and stability even in environments with temperature fluctuations and high stresses. The tube form is typically used in heat exchangers, furnace components, gas turbines, and other high-temperature applications where oxidation and carburization resistance are critical.

Chemical Composition

Nickel (Ni): 72.0% - 78.0%
Chromium (Cr): 14.0% - 17.0%
Iron (Fe): Balance (approximately 6.0% maximum)
Manganese (Mn): 1.0% maximum
Silicon (Si): 0.5% maximum
Copper (Cu): 0.5% maximum
Carbon (C): 0.15% maximum
Sulfur (S): 0.015% maximum
Phosphorus (P): 0.015% maximum
Titanium (Ti): 0.30% maximum (optional, depending on grade)

Mechanical Properties

Tensile Strength: Range: 690 - 1030 MPa (100 - 150 ksi)
Yield Strength: Minimum: 275 MPa (40 ksi) at room temperature
Elongation: Minimum: 30% in 2 inches (50.8 mm)
Hardness: Brinell Hardness: 170 HB (typical value)

Applications

Heat Exchangers: Used in power generation, chemical processing, and petrochemical plants due to excellent high-temperature resistance
Furnace Components: Withstands high temperatures without significant degradation in industrial furnaces
Gas Turbines: Ideal for combustion chambers and blades requiring stability at elevated temperatures
Chemical Processing: Highly resistant to corrosive environments in industrial applications
Nuclear Reactors: Used for resistance to radiation-induced degradation and high-temperature strength
A Aerospace: Components exposed to extreme heat and oxidative environments in aircraft and engines
