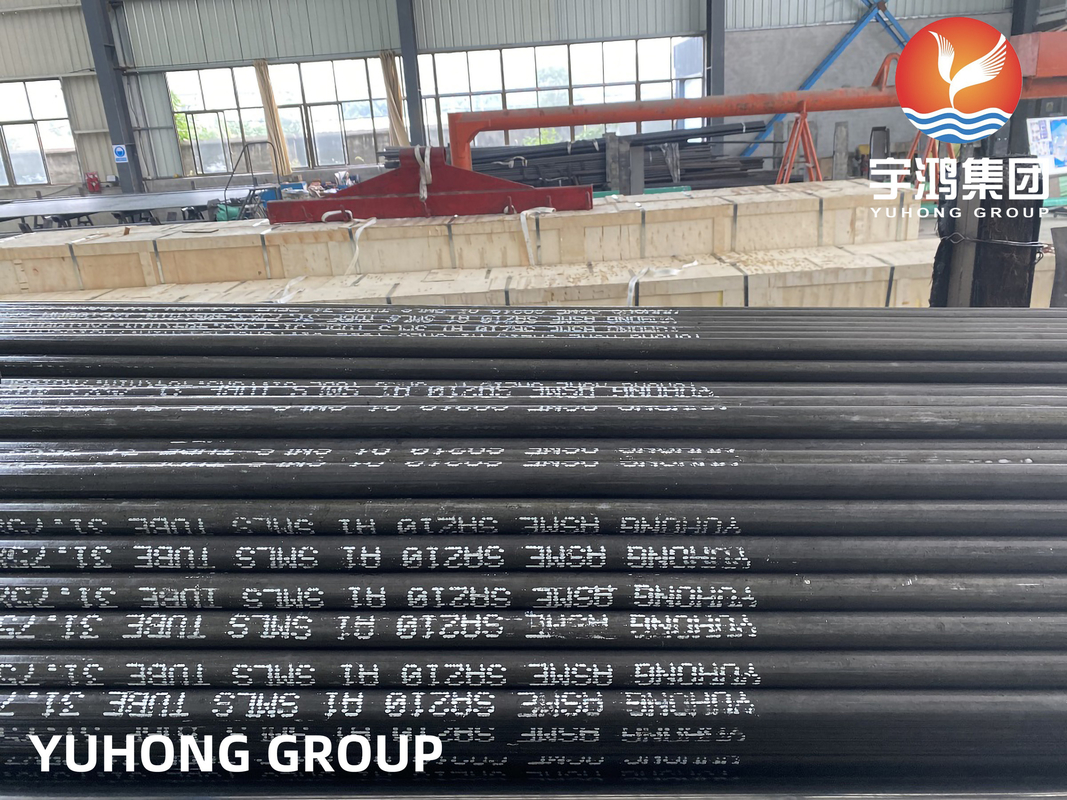

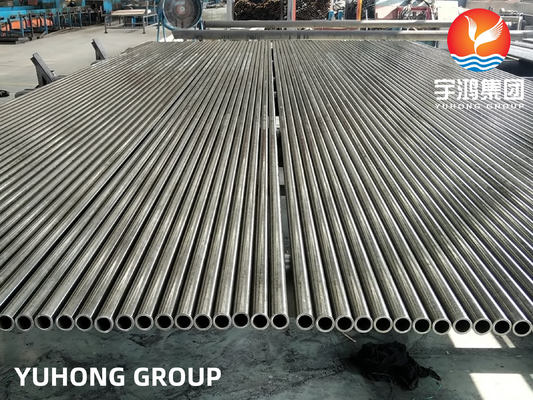

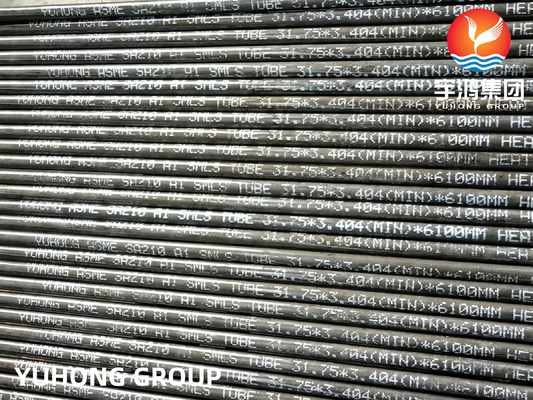

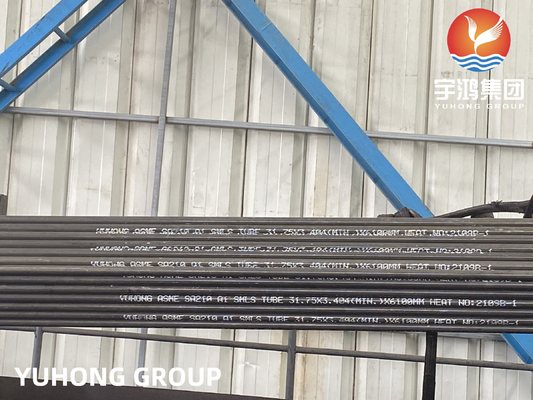

ASME SA210 GR A1 Carbon Steel Seamless Tube For Boilers Application

Brand Name:	YUHONG
Model Number:	Seamless Tube
MOQ:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Plastic Caps on Tube's Both Ends
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, ABS, BV, ISO, ASTM, SGS

Material Grade:

GR.A1

Standard:

ASTM A210 , ASME SA210

Tube Material:

Nickel Alloy , Alloy , Stainless Steel , Duplex Stainless Steel , Carbon

Tube's OD&WE:

Depend On Customer

Tube's End:

Plain End

Application:

Boiler, Superheater, And Heat-Exchanger

Supply Ability:

According to Clients' requirements

Highlight:

ASME SA210 Carbon Steel Seamless Tube

Boilers Carbon Steel Seamless Tube

GR A1 Carbon Steel Seamless Tube

Product Description

ASME SA210 GR A1 Carbon Steel Seamless Tube For Boilers Application

Product Specifications

Attribute	Value
Material Grade	GR.A1
Standard	ASTM A210, ASME SA210
Tube material	Nickel Alloy, Alloy, Stainless Steel, Duplex Stainless Steel, Carbon
Tube's OD&WE	Depend on Customer
Tube's End	Plain end
Application	Boiler, Superheater, and Heat-Exchanger

Product Description

The ASME SA210 GR.A1 Carbon Steel Seamless Tube is a high-quality pressure vessel and boiler tubing that meets stringent ASME standards. This carbon steel alloy primarily consists of iron and carbon, with controlled amounts of manganese and silicon for enhanced performance.

Chemical Composition

Carbon (C): 0.25% to 0.35%
Manganese (Mn): 0.30% to 0.60%
Silicon (Si): 0.10% to 0.35%
Phosphorus (P): ≤ 0.035%
Sulfur (S): ≤ 0.035%

Mechanical Properties

Tensile Strength: 415 - 550 MPa (60 - 80 ksi)
Yield Strength: Minimum 240 MPa (35 ksi)
Elongation: Minimum 35% in 8 inches (200 mm) or 40% in 200 mm
Hardness: Maximum Brinell Hardness of 160 HB
Modulus of Elasticity: Typically 200 GPa (29 × 10⁶ psi)

Key Applications

Boilers: Essential for steam generation in power plants and industrial heating systems.

Pressure Vessels: Ideal for high-temperature applications requiring strength and reliability.

Heat Exchangers: Used in fluid heating and cooling systems across various industries.
