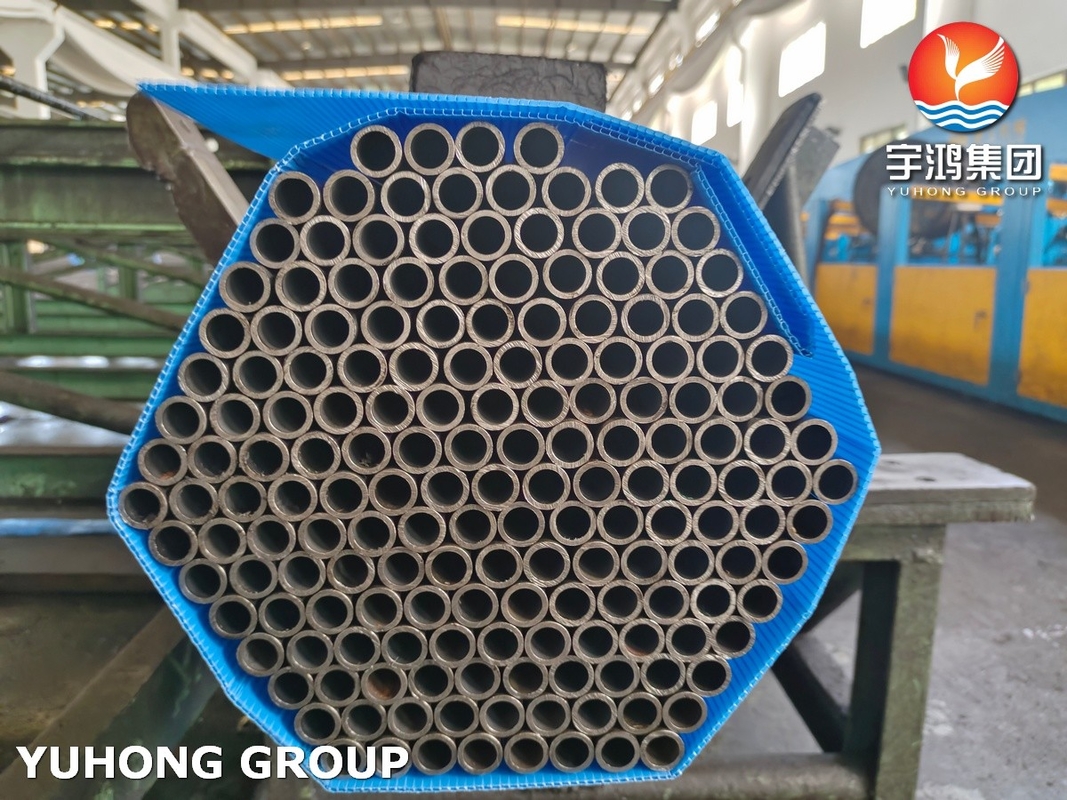

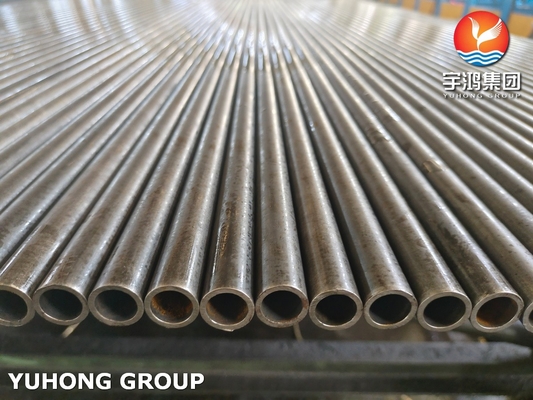

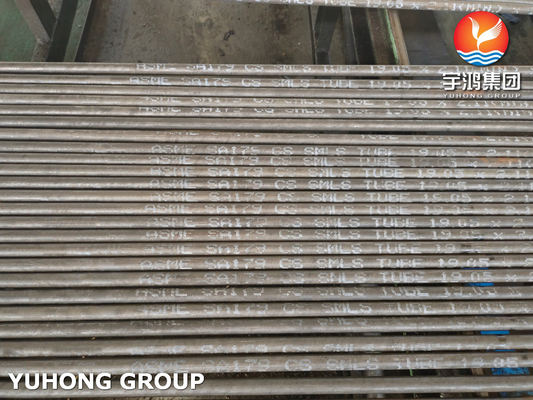

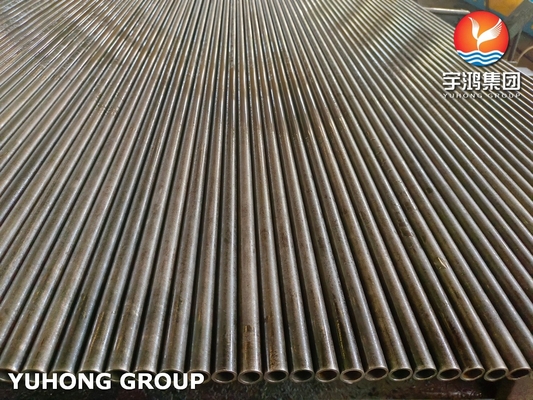

ASME SA179 Carbon Steel Boiler Tube For Boilers , Petrochemical

Brand Name:	YUHONG
Model Number:	Boiler Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material Grade:

Standard:

ASTM A179 , ASME SA179

External Diameter:

>38.1

Ends:

PE , BE

Tube Material:

Nickel Alloy , Alloy , Stainless Steel , Duplex Stainless Steel , Carbon

Application:

Boiler

Supply Ability:

10000 Tons/Month

Highlight:

Petrochemical Carbon Steel Boiler Tube

Boilers Carbon Steel Tube

ASME SA179 Carbon Steel Boiler Tube

Product Description

ASME SA179 Carbon Steel Boiler Tube For Boilers, Petrochemical

Product Specifications

Attribute	Value
Material Grade	A179
Standard	ASTM A179, ASME SA179
External Diameter	>38.1
Ends	PE, BE
Tube Material	Nickel Alloy, Alloy, Stainless Steel, Duplex Stainless Steel, Carbon
Application	Boiler

Product Overview

ASME SA179 Carbon Steel Boiler Tube is a specification for seamless carbon steel tubes specifically designed for heat exchangers, condensers, and boiler systems. These tubes excel in moderate-temperature, lower-pressure environments compared to higher-grade steels like ASME SA192.

SA179 is an ASME (American Society of Mechanical Engineers) standard for seamless cold-drawn carbon steel tubes, ideal for heat transfer applications with moderate temperature and pressure conditions.

Chemical Composition

Carbon: 0.06-0.15%
Manganese: 0.27-0.63%
Phosphorus: ≤ 0.035%
Sulfur: ≤ 0.035%
Silicon: 0.10-0.35%

Mechanical Properties

Tensile Strength: 45,000-70,000 psi (310-480 MPa)
Yield Strength: 25,000 psi (172 MPa)
Elongation: Minimum of 30% in 8 inches (200 mm) of gauge length
Hardness: Relatively low, contributing to excellent formability and resilience in heat transfer applications

Key Features

Cold-Drawn Seamless Construction: Manufactured without seams for superior structural integrity under internal pressures
Optimized Performance: Designed for lower pressure and temperature resistance compared to higher-grade boiler tubes

Applications

Heat Exchangers: Efficient thermal transfer in low- to medium-pressure systems
Condensers: Power plant condenser units and industrial steam cooling systems
Boilers: Low-pressure boiler designs with moderate temperature requirements
Steam Generators: Moderate pressure steam generation in smaller systems
Water-Filled Systems: Water-based systems requiring moderate pressure and temperature conditions
