EN10216-5 1.4841 Stainless Steel Boiler Tube , Heating , Condenser

Brand Name:	YUHONG
Model Number:	Boiler Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material:

1.4841

Standard:

EN10216-5

ET, UT, HT, PT, PMI

Size OD:

31.75 ~ 165.2mm

Size Thickness:

2~20mm

Size Length:

Max.: 34m/pc

Supply Ability:

10000 Tons/Month

Highlight:

ASME SA36 Baffle Plate

Baffle Plate For Pressure Vessel

ASME SA36 Support Plate

Product Description

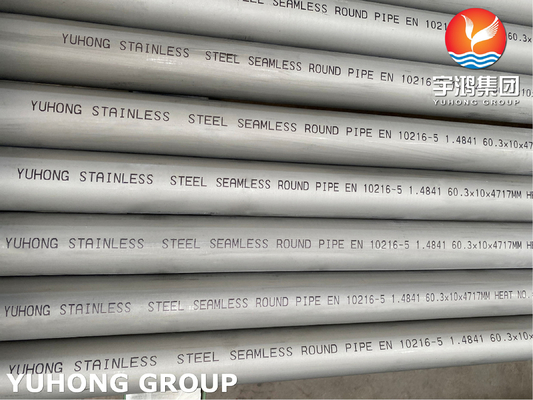

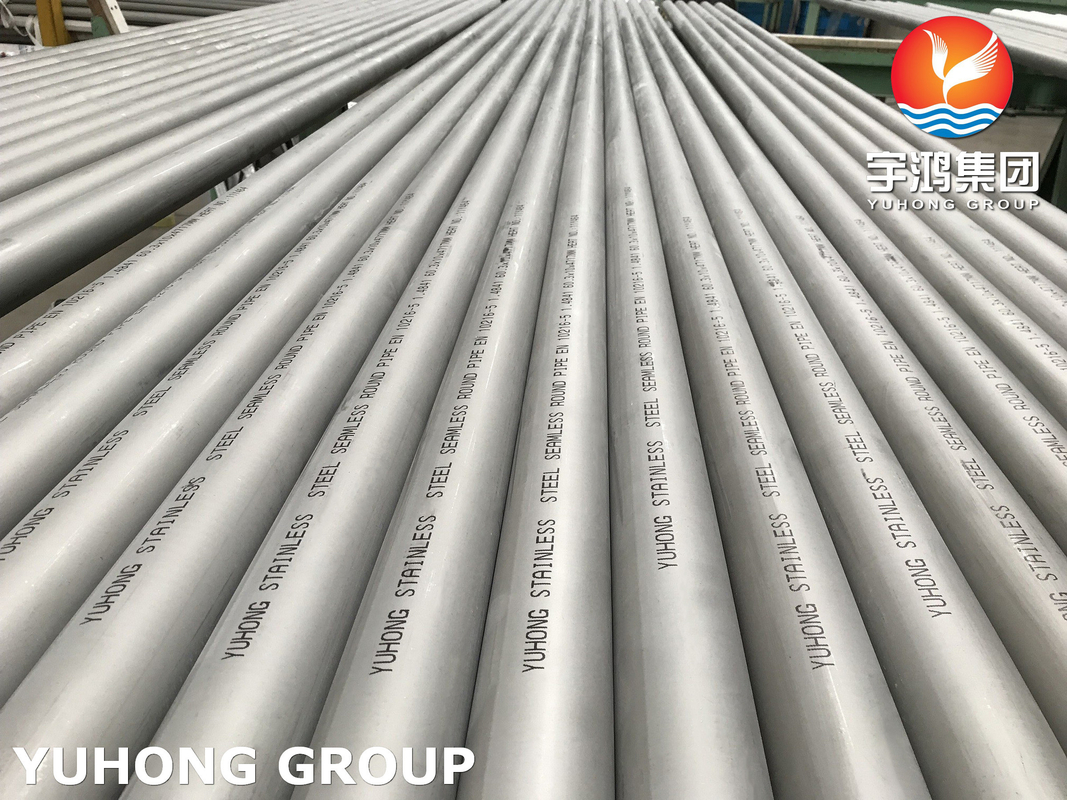

EN10216-5 1.4841 Stainless Steel Boiler Tube for Heating & Condenser Applications

Product Specifications

Attribute	Value
Material	1.4841
Standard	EN10216-5

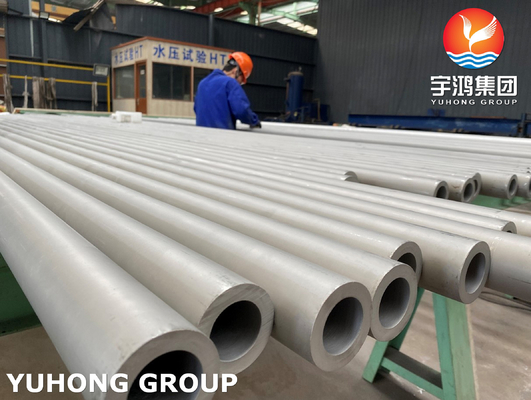

NDT	ET, UT, HT, PT, PMI

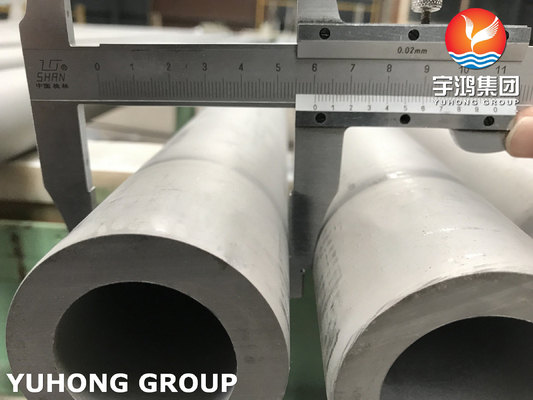

Size OD	31.75 ~ 165.2mm
Size Thickness	2~20mm
Size Length	Max.: 34m/pc

Product Overview

The EN10216-5 1.4841 Stainless Steel Boiler Tube is engineered for high-temperature applications, offering superior heat and oxidation resistance. This austenitic stainless steel (similar to AISI 314) features high chromium and nickel content for exceptional performance in demanding environments.

Key Features

High chromium (24-26%) and nickel (19-22%) content for excellent corrosion resistance
Superior resistance to oxidation and thermal cycling
Reduced scaling and spalling for extended component lifespan
Ideal for high-temperature processes up to 1150°C

Chemical Composition

Grade	Cr	Ni	C
1.4841	24.0-26.0%	19.0-22.0%	≤ 0.20%

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
1.4841	≥ 210 MPa (30 ksi)	≥ 520 MPa (75 ksi)	≥ 35% in 50 mm	Typically ≤ 95 HRB

Industrial Applications

Power Generation: Steam boilers, superheaters, and reheaters in thermal power plants
Petrochemical Industry: Heat exchangers and reformers for high-temperature processes
Chemical Processing: Reactors and separators requiring corrosion resistance
Waste Heat Recovery: Systems converting industrial waste heat to energy
Flue Gas Desulfurization: Components handling corrosive flue gases
Food Processing: Hygienic heat exchangers and processing equipment
Marine Applications: Exhaust systems resistant to seawater corrosion
