Stainless Steel Boiler Tube,ASME SA213 TP347H, Power Plant Boiler Application

Brand Name:	YUHONG
Model Number:	ASTM A213 , ASME SA213 , ASTM A376, ASME SA376, TP347, TP347H
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Material Grade:

TP347, TP347H, 1.4550, 1.4551

Material Standard:

ASTM A213, ASME SA213, JIS G3459, EN10216-5, GOST 9941-81, ASTM A376 , ASME SA376

ET, UT, HT, PT, PMI

Size OD:

31.75 ~ 165.2mm

Size Thickness:

2~20mm

Size Length:

Max.: 34m/pc

Supply Ability:

10000 tons/month

Highlight:

TP347H Stainless Steel Boiler Tube

Stainless Steel Boiler Tube ASTM

Power Plant boiler superheater tube

Product Description

Stainless Steel Boiler Tube, ASME SA213 TP347H, Power Plant Boiler Application

Product Specifications

Attribute	Value
Material Grade	TP347, TP347H, 1.4550, 1.4551
Material Standard	ASTM A213, ASME SA213, JIS G3459, EN10216-5, GOST 9941-81, ASTM A376, ASME SA376
NDT	ET, UT, HT, PT, PMI
Size OD	31.75 ~ 165.2mm
Size Thickness	2~20mm
Size Length	Max.: 34m/pc

Product Description

Yuhong Group's ASME SA213 TP347H grade stainless steel boiler tubes are specifically designed for power plant applications. These tubes undergo stabilization heat treatment with furnace temperature controlled at approximately 950℃ for 2-4 hours during the final heat treatment process.

Technical Specifications

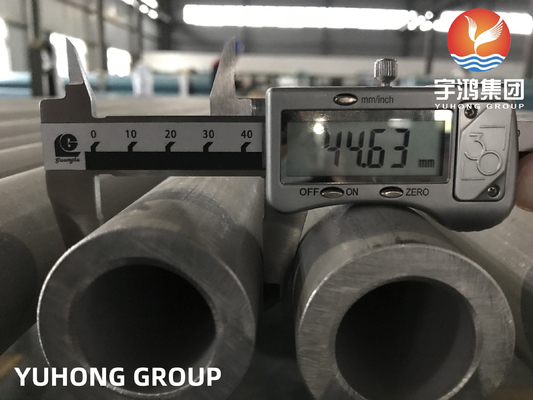

Outer Diameter: 31.75mm to 165.2mm
Wall Thickness: 2mm to 20mm
Length: Maximum 34m per piece
All tubes meet grain size requirements of ASTM E112 (Grain Size <7)
100% Eddy Current Test (ASTM E426)
100% Hydrostatic Test (ASTM A1016 - 7Mpa/5s)

Quality Tests

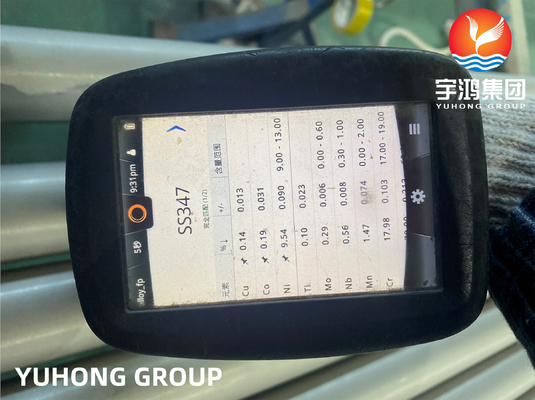

Chemical Analysis
Mechanical Properties Testing
- Tensile Requirement
- Hardness Requirement
- Flattening Test
- Flaring Test
Hydrostatic Test or Nondestructive Electric Test

Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Niobium	Other
TP347	min: - max: 0.08	min: 2.0 max: -	min: 1.0 max: -	min: 0.045 max: -	min: 0.03 max: -	min: 17 max: 19	-	min: 9 max: 13	10*C ~1.10	/
TP347H	min: 0.04 max: 0.1	min: 2.0 max: -	min: 1.0 max: -	min: 0.045 max: -	min: 0.03 max: -	min: 17 max: 19	-	min: 9 max: 13	8*C ~1.10	/

Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
TP347	515	205	35	Rockwell B (HRB) max: 90 Brinell (HBW) max: 192
TP347H	515	205	35	Rockwell B (HRB) max: 90 Brinell (HBW) max: 192

TP347H has an additional requirement for a grain size of ASTM No 7 or coarser.

Applications

Food preparation equipment
Laboratory benches & equipment
Coastal architectural panelling, railings & trim
Power Plant Boiler
Chemical containers, including for transport
Heat Exchanger
Oil and Gas
Petrochemical
Super Heater parts
Furnace
