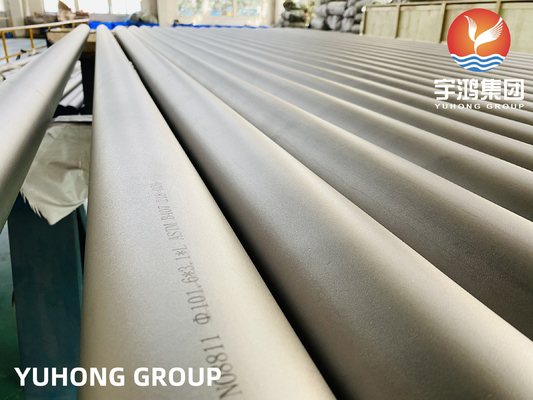

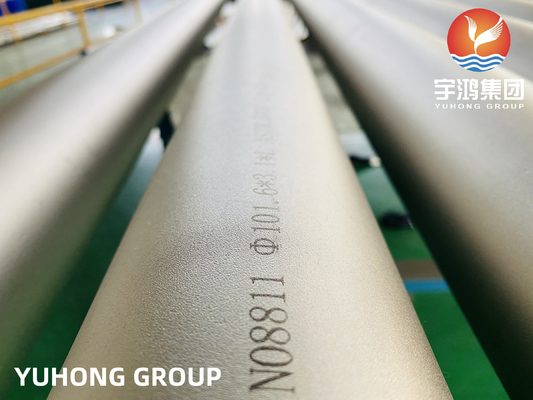

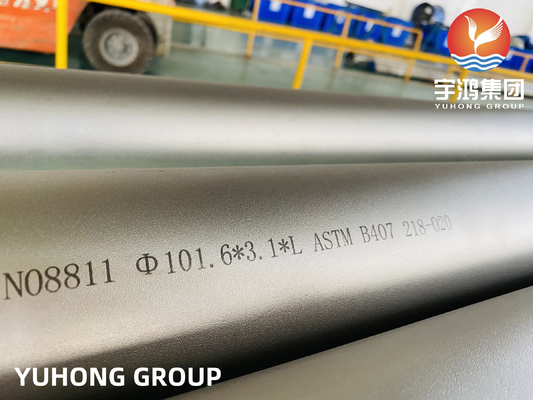

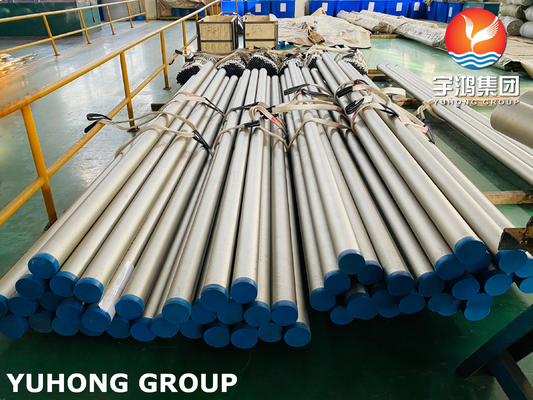

Nickel Alloy Steel Boiler Tube, ASME SB407 Alloy 800HT, For Steel Melting Furnace Application

Brand Name:	YUHONG
Model Number:	ASME SB407 ALLOY 800HT , UNS NO8811
MOQ:	1PC
Price:	1--10000 USD
Packaging Details:	Bundle + Cap , Ply wooden case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China,Korea

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Material Grade:

Alloy800, 800H, 800HT, UNS NO8800, UNS NO8810, UNS NO8811

Material Standard:

ASTM B407, ASME SB407

ET, UT, HT, PT, PMI

Size Of OD:

6mm ~ 219.1mm

Wall Thickness:

1mm ~ 50mm

Length:

Max.: 26m/pc

Supply Ability:

10000 tons/month

Highlight:

Nickel alloy steel boiler tube

alloy steel boiler tube Alloy 800HT

ASME SB407 for melting Furnace

Product Description

Nickel Alloy Steel Boiler Tube, ASME SB407 Alloy 800HT, For Steel Melting Furnace Application

Product Specifications

Attribute	Value
Material Grade	Alloy800, 800H, 800HT, UNS NO8800, UNS NO8810, UNS NO8811
Material Standard	ASTM B407, ASME SB407
NDT	ET, UT, HT, PT, PMI
Size of OD	6mm ~ 219.1mm
Wall Thickness	1mm ~ 50mm
Length	Max.: 26m/pc

Product Description

Yuhong Holding Group is a leading exporter of Nickel Base Alloy Tubes in China, with extensive experience since 2012 in supplying high-quality alloys including Hastelloy, Monel, Inconel, and Incoloy series for various industrial applications.

Alloys 800H/HT are specifically designed for corrosive environments and high-temperature applications, making them ideal for heat treating equipment, chemical processing, petrochemical plants, nuclear power generation, and paper pulp industries.

Chemical Composition

Grade	Ni	Cr	Fe	C	Al	Ti	Al+Ti
Alloy 800	30-35	19-23	39.5 min	0.10 max	0.15-0.60	0.15-0.60	0.30-1.20
Alloy 800H	30-35	19-23	39.5	0.05-0.10	0.15-0.60	0.15-0.60	0.30-1.20
Alloy 800HT	30-35	19-23	39.5	0.06-0.10	0.25-0.60	0.25-0.60	0.85-1.20

ASTM Grain Size: Alloy 800 is not specified, Alloy 800H is 5 or coarser, Alloy 800HT is 5 or coarser.

Mechanical Properties

Material	Temp. °F	Temp. °C	Hardness BHN	Tensile Strength MPa	Yield Strength (0.2% Offset)
Alloy 800H and Alloy 800HT	80	27	126	77.8	21.7
	800	425		67.5	18.8
	1000	540	90	62.7	13
	1200	650	84	54.8	13.5
	1300	705	82	47.7	15.8
	1400	760	74	34.2	13.1

Applications

Gas Processing Industries
Petrochemical Industries
Power Generation Industries
Food Processing Industries
Chemical Industries
Oil & Gas Industries
Fertilizers Industries
Sugar Industries
