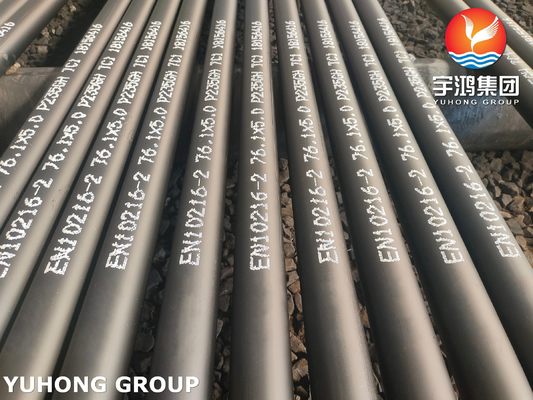

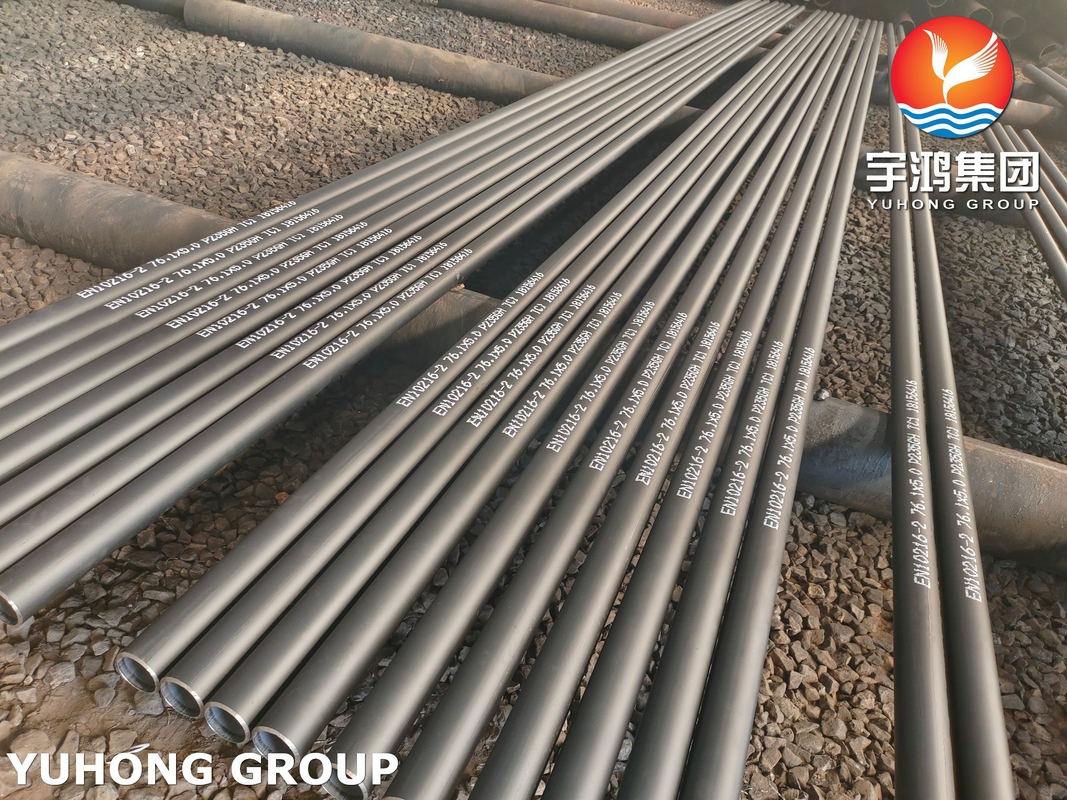

EN10216-2 P235GH TC1 Alloy Steel Heat Exchanger Tube For Power Plants

Brand Name:	YUHONG
Model Number:	Seamless tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material Grade:

P235GH TC1

Standard:

EN10216-2

Ends:

Testing:

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

P235GH Alloy Steel Heat Exchanger Tube

TC1 Alloy Steel Heat Exchanger Tube

Power Plants Heat Exchanger Tube

Product Description

EN10216-2 P235GH TC1 Alloy Steel Heat Exchanger Tube For Power Plants

Product Specifications

Attribute	Value
Material Grade	P235GH TC1
Standard	EN10216-2
Ends	PE
Testing	UT, ET, HT, PMI
Size	OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc
Application	Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle

Product Overview

EN 10216-2: This European standard specifies requirements for seamless tubes made from carbon and alloy steel for pressure equipment and piping systems, particularly for high-temperature service where pressure resistance and good mechanical properties are essential.

P235GH: A non-alloy steel grade offering good weldability, moderate strength, and excellent high-temperature performance. The "P" indicates pressure applications, while "235" refers to the minimum yield strength (235 MPa) at room temperature.

GH: Indicates the steel grade is designed for high-temperature applications (typically up to 400°C+), making it suitable for heat exchangers, boilers, and other high-pressure equipment.

Material Composition

Tensile Strength (R_m): 360-510 MPa
Yield Strength (R_eH): ≥ 235 MPa
Elongation: 22% (in 5.65 √S)
Hardness: Typically ≤ 180 HB

Mechanical Properties

Yield Strength: Minimum 235 MPa at room temperature, suitable for medium-pressure applications
Tensile Strength: 360-510 MPa range ensures capability to handle mechanical stresses
Temperature Resistance: Designed for elevated temperature environments with resistance to creep and high-temperature oxidation

Key Characteristics

High-Temperature Performance: Maintains stability under thermal expansion
Excellent Weldability: Facilitates ease of fabrication for pressure equipment
Durability and Reliability: Seamless construction with TC1 testing ensures robustness and defect resistance

Applications

Boilers: Ideal for high-pressure boilers in power plants and industrial heating systems
Heat Exchangers: Critical for industrial heat exchangers requiring efficient heat transfer and high-temperature fluid resistance
Pressure Vessels: Used in construction of vessels for chemical processing, petroleum refining, and gas storage
Piping Systems: Suitable for high-temperature fluid transport in power plants and industrial systems
