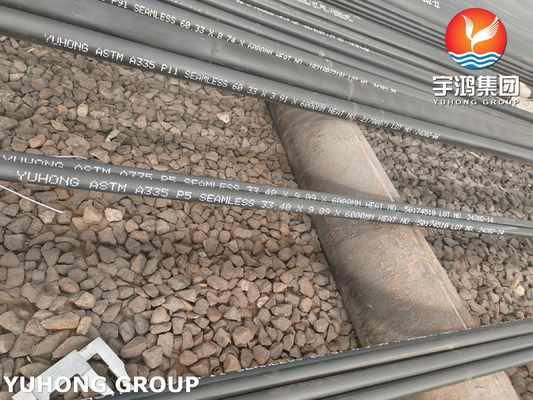

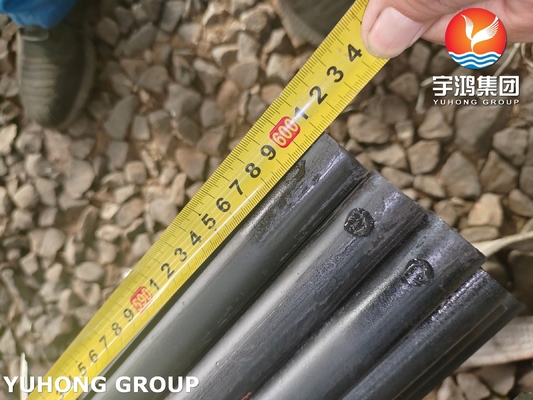

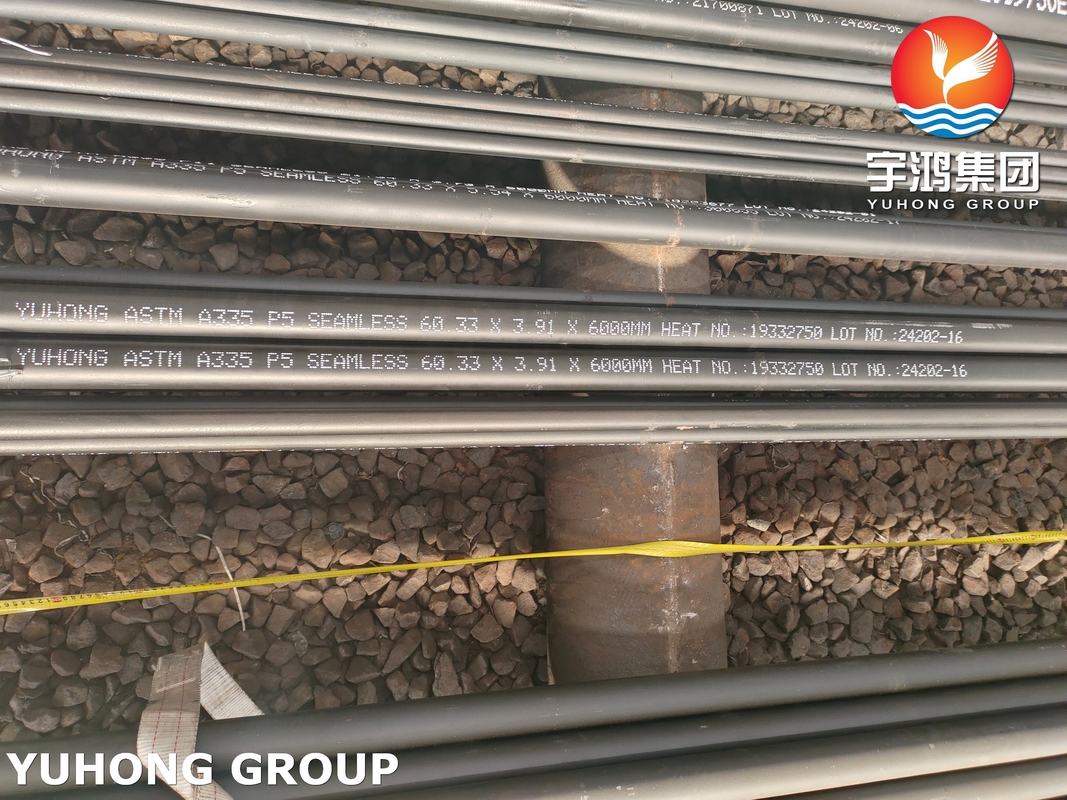

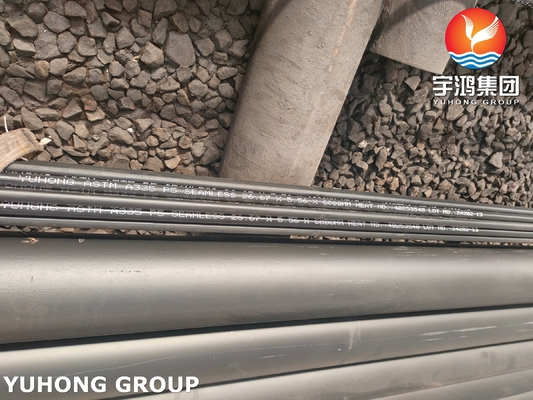

Alloy Steel ASTM A335 P5 Heat Exchanger Tube Refining Industries

Brand Name:	YUHONG
Model Number:	Seamless tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material Grade:

Standard:

ASTM A335 , ASME SA335

Ends:

Testing:

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

Alloy Steel Heat Exchanger Tube

ASTM A335 P5 Heat Exchanger Tube

Product Description

Alloy Steel ASTM A335 P5 Heat Exchanger Tube Refining Industries

Product Specifications

Attribute	Value
Material Grade	P5
Standard	ASTM A335, ASME SA335
Ends	PE
Testing	UT, ET, HT, PMI
Size	OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc
Application	Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle

Product Overview

ASTM A335 P5 is a specification for seamless ferritic alloy steel pipes designed for high-temperature service. The "P5" grade contains chromium (Cr) and molybdenum (Mo), which enhance the steel's creep resistance, high-temperature strength, and oxidation resistance. These pipes are commonly used in boilers, superheaters, heat exchangers, and other high-temperature, high-pressure equipment.

Material Composition

Chromium (Cr): 0.80 - 1.05%
Molybdenum (Mo): 0.44 - 0.65%
Carbon (C): 0.05 - 0.15%
Manganese (Mn): 0.30 - 0.60%
Silicon (Si): 0.50 - 0.80%
Phosphorus (P) & Sulfur (S): Strictly controlled to ensure strength and ductility

Mechanical Properties

Tensile Strength: ≥415 MPa (60 ksi)
Yield Strength: ≥205 MPa (30 ksi)
Elongation: ≥30% (8 inches) or ≥35% (2 inches)
Hardness: HB 185-250

Key Characteristics

Seamless Construction: Enhanced strength and pressure-handling capacity
Creep Resistance: Excellent performance under long-term thermal cycling
Fabricability: Easy to weld and form into required shapes
Corrosion Resistance: Performs well in steam and gas environments

Applications

Heat exchangers in power generation, chemical processing, and petrochemical industries
Boiler tubes in power plant superheating sections
Superheaters in steam boilers
Reactors and distillation columns in petrochemical plants
Fossil fuel power plant heat exchangers and steam systems
