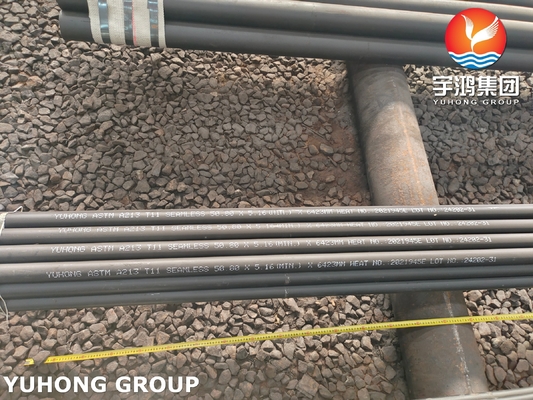

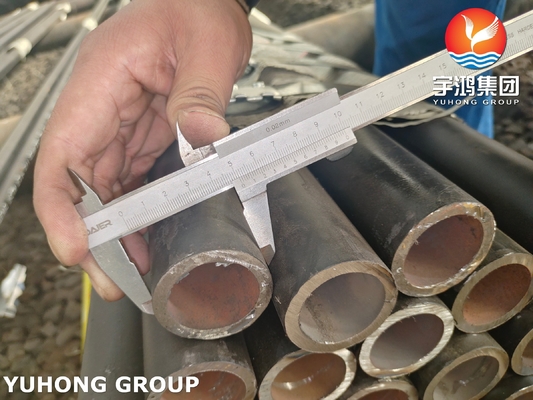

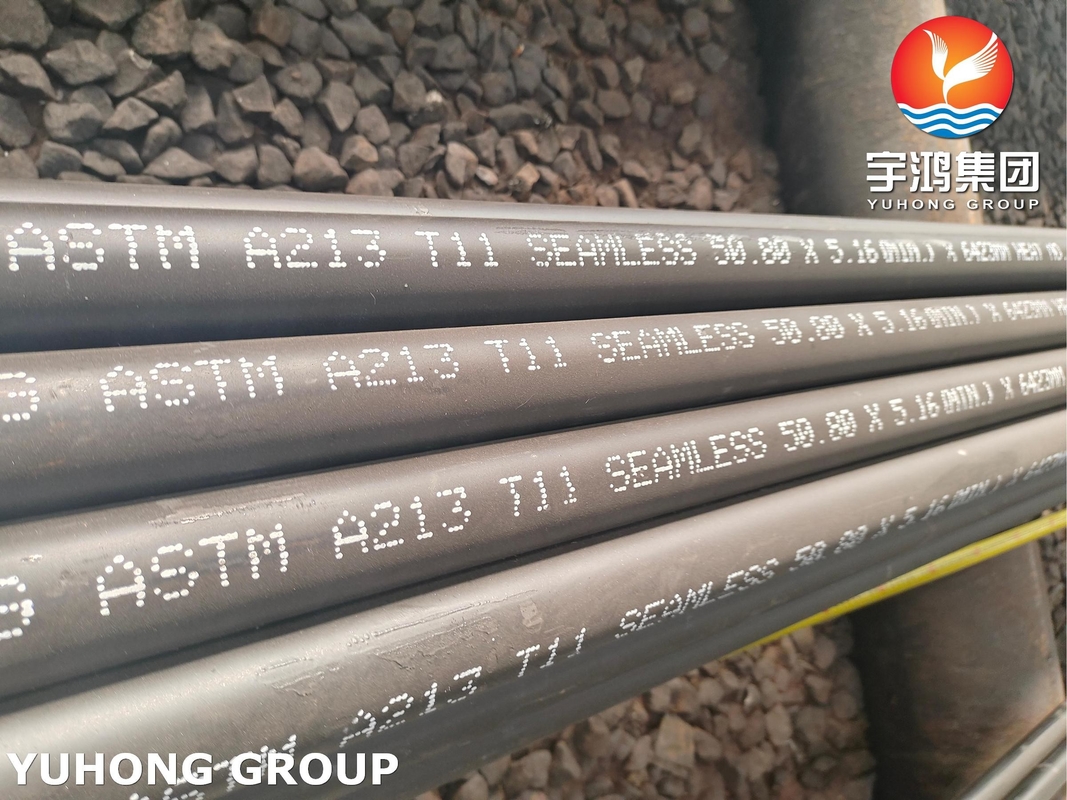

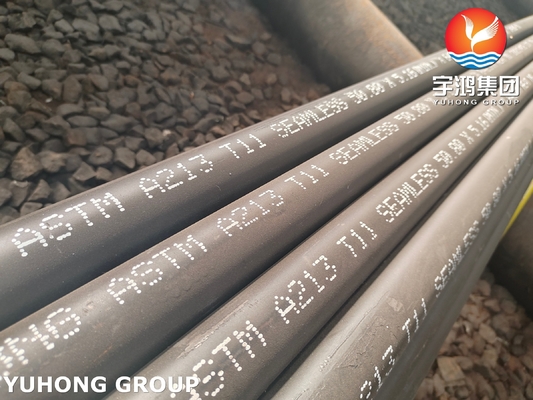

ASTM A213 T11 Alloy Steel Heat Exchanger Tube For Tube Bundle

Brand Name:	YUHONG
Model Number:	Seamless tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material Grade:

Standard:

ASTM A213 , ASME SA213

Ends:

Testing:

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

T11 Alloy Steel Heat Exchanger Tube

ASTM A213 T11 Heat Exchanger Tube

Product Description

ASTM A213 T11 Alloy Steel Heat Exchanger Tube For Tube Bundle

Product Specifications

Attribute	Value
Material Grade	T11
Standard	ASTM A213, ASME SA213
Ends	PE
Testing	UT, ET, HT, PMI
Size	OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc
Application	Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle

Product Description

ASTM A213 T11 tubes are made from a ferritic alloy steel, primarily composed of 1% Molybdenum (Mo), with the balance being carbon, manganese, silicon, phosphorus, sulfur, and small amounts of chromium and other elements. The presence of molybdenum enhances the steel's strength, toughness, and resistance to corrosion at elevated temperatures.

The "T11" grade refers to a specific type of chrome-molybdenum (Cr-Mo) steel. This material is designed to withstand high temperature and pressure conditions, making it ideal for heat transfer applications in power plants, refineries, and chemical plants.

Material Composition

Chromium (Cr): 1.00 - 1.50%
Molybdenum (Mo): 0.44 - 0.65%
Carbon (C): 0.05 - 0.15%
Manganese (Mn): 0.30 - 0.60%
Silicon (Si): 0.50 - 0.80%
Phosphorus (P) & Sulfur (S): Limits set by the specification to ensure high strength and durability

Mechanical Properties

Tensile Strength: Minimum of 415 MPa (60 ksi)
Yield Strength: Minimum of 205 MPa (30 ksi)
Elongation: 30% (in 8 inches) or 35% (in 2 inches)

These properties ensure that the tube can withstand high operating pressures and temperatures typically encountered in power plant boilers or heat exchangers.

Temperature Resistance

Operating Temperature Range: Up to 550°C (1022°F)

T11 alloy steel is known for its excellent heat resistance and is used in applications where the tube is exposed to high-pressure steam or gas for extended periods.

Key Characteristics

Seamless Construction: Produced without welded seams, enhancing strength and pressure-handling capacity
Creep and Stress Rupture Resistance: Good creep resistance at high temperatures for power generation applications
Corrosion Resistance: Exhibits good resistance to oxidizing environments at high temperatures
Fabricability: Can be easily formed, welded, and machined for specific applications

Applications

Heat exchangers requiring high thermal conductivity and resistance to pressure/temperature fluctuations
Superheating sections of steam boilers
Boiler tubes in power plants and industrial boilers
Chemical processing applications with high-temperature heat transfer fluids
Fossil fuel and nuclear power plants requiring reliability and durability
