ASME SB338 GR7 Titanium Alloy Steel Heat Exchanger Tube For Power Plant

Brand Name:	YUHONG
Model Number:	Seamless Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case + Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material:

Standard:

ASTM B338 , ASME SB338

Ends:

PE , BE

Application:

Heat Exchangers, Condensers, Coolers, Etc.

Supply Ability:

10000 Tons/Month

Highlight:

ASME SB338 GR7 Heat Exchanger Tube

Titanium Alloy Steel Power Plant Tube

Heat Exchanger Titanium Alloy Steel Tube

Product Description

ASME SB338 GR7 Titanium Alloy Steel Heat Exchanger Tube For Power Plant

Attribute	Value
Material	GR7
Standard	ASTM B338, ASME SB338
Ends	PE, BE
Application	Heat Exchangers, Condensers, Coolers, Etc.

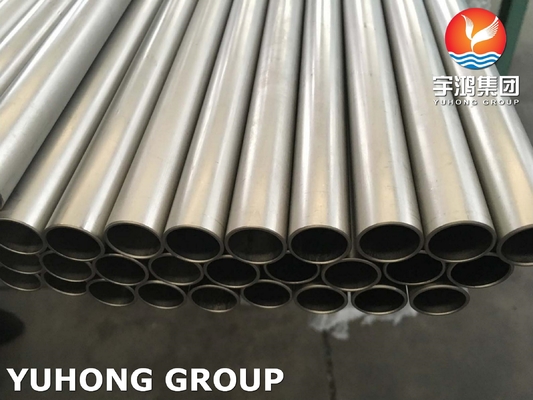

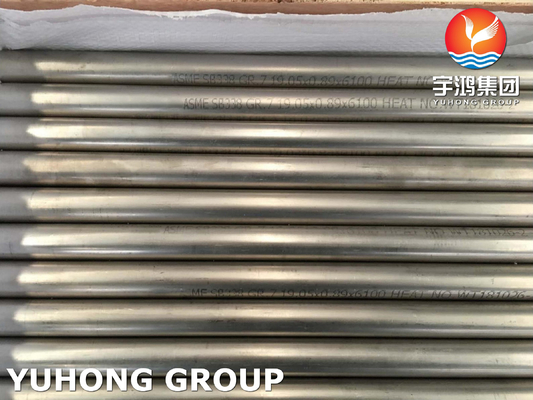

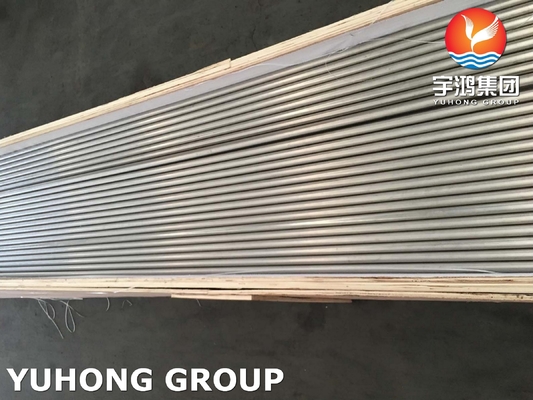

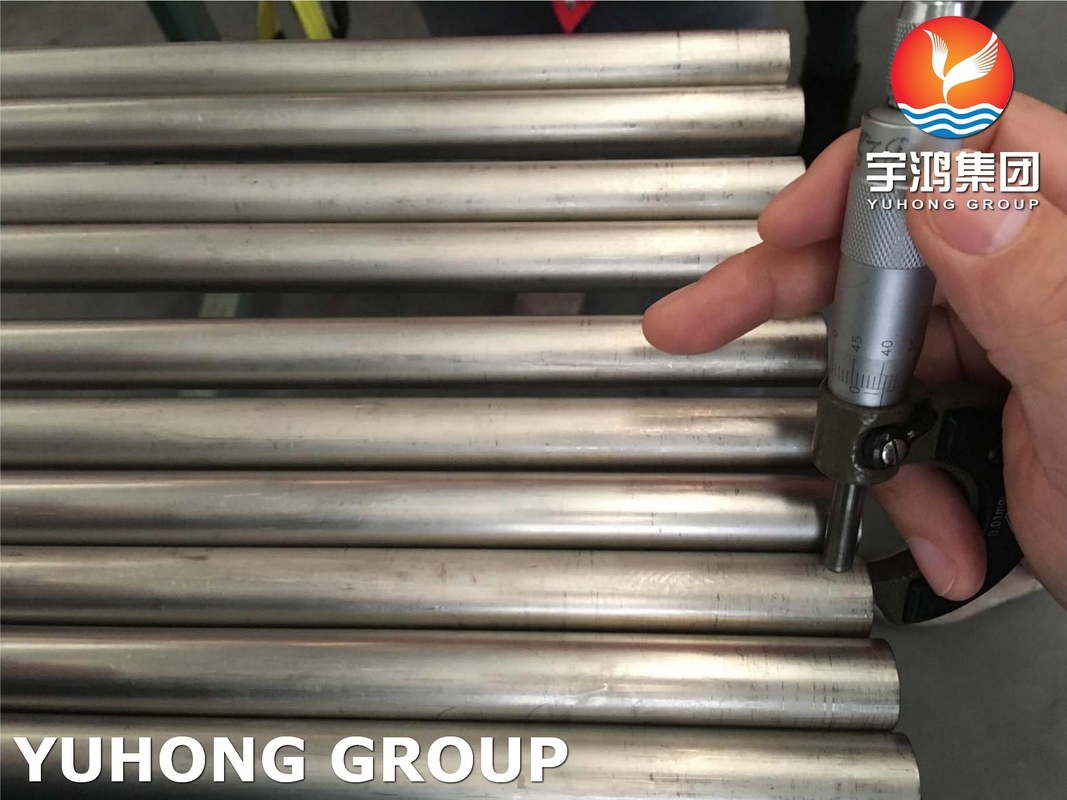

ASME SB338 GR7 Titanium Alloy Steel Heat Exchanger Tube

ASME SB338 Grade 7 refers to a specific standard and material specification for Titanium Alloy (Ti-0.2Pd). This material is engineered for applications demanding exceptional corrosion resistance and high strength in challenging environments.

The GR7 designation indicates a titanium alloy containing Titanium (Ti) as the base metal with 0.12% to 0.25% Palladium (Pd) as the alloying element. The palladium addition provides superior corrosion resistance, particularly in acidic environments and seawater, resulting in reduced maintenance requirements and extended service life compared to stainless steel or carbon steel alternatives.

Chemical Composition

Titanium Grade 7 (Ti-0.2Pd) primarily consists of titanium with 0.12-0.25% palladium, offering enhanced corrosion resistance in aggressive environments including seawater, chemicals, and heat exchangers
Titanium (Ti) provides an excellent strength-to-weight ratio, outstanding corrosion resistance, and high-temperature performance
Palladium (Pd) improves resistance to general corrosion, particularly in acidic environments

Mechanical Properties

Tensile Strength: 550 to 750 MPa (80-110 ksi)
Yield Strength: 275 to 450 MPa (40-65 ksi), ensuring reliable performance under pressure
Elongation: 15-20%, demonstrating good ductility

Applications

Heat Exchangers: Ideal for environments with high corrosion potential including desalination plants, chemical processing industries, and offshore oil and gas platforms
Marine and Offshore Applications: Superior saltwater corrosion resistance makes it perfect for marine environments
Petrochemical and Chemical Industries: Excellent performance in acidic and corrosive environments
