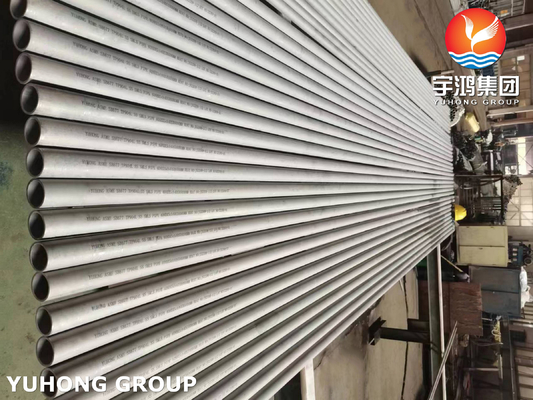

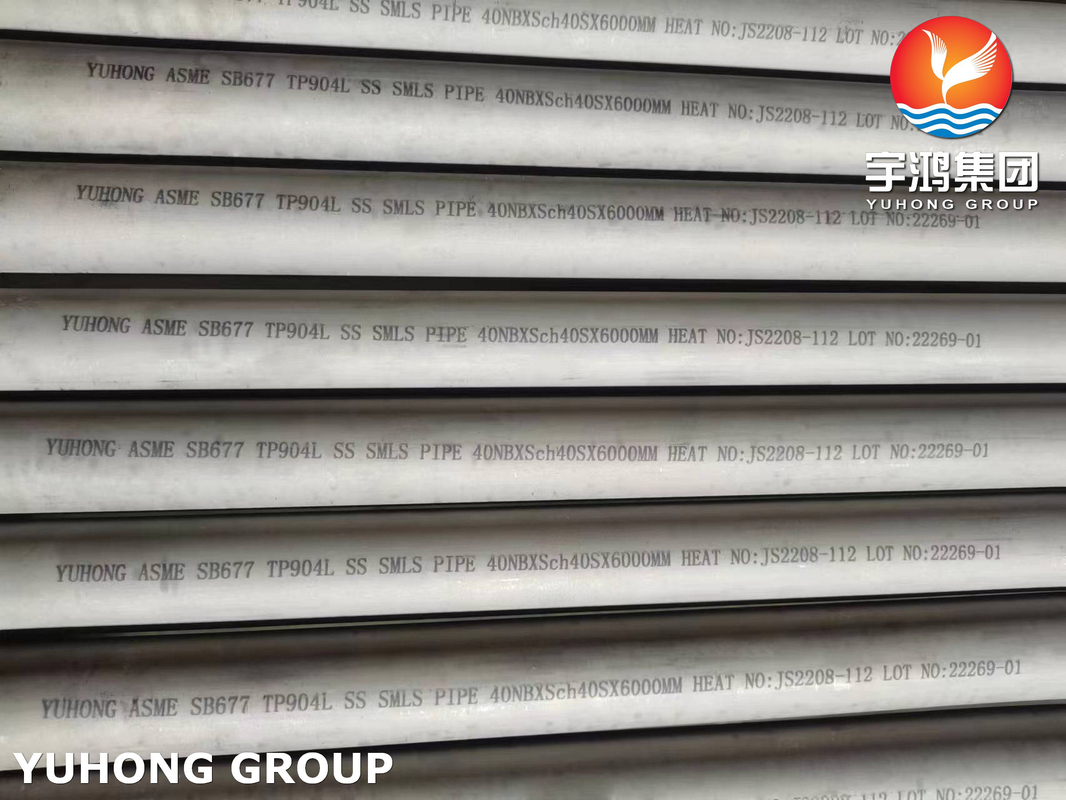

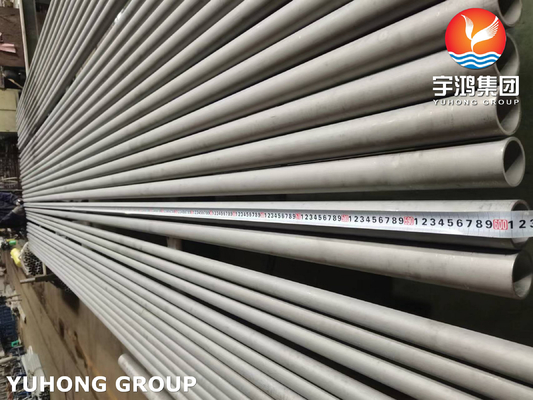

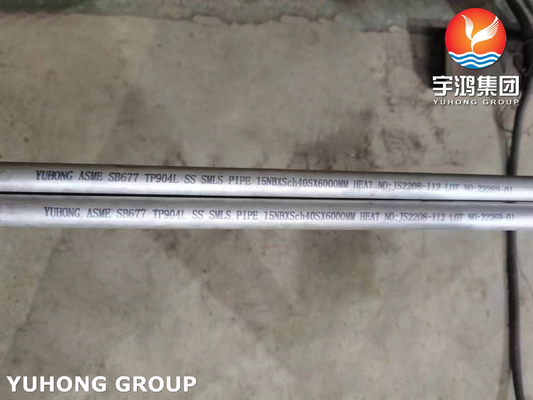

Nickel Alloy Steel Heat Exchanger Tube ASME SB677 TP904L In Petrochemical Industry

Brand Name:	YUHONG
Model Number:	Seamless Tube
MOQ:	1PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material:

TP904L

Standard:

ASTM B677 , ASME SB677

Ends:

PE , BE

Testing:

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

Petrochemical Industry Heat Exchanger Tube

ASME SB677 TP904L Heat Exchanger Tube

Nickel Alloy Steel Heat Exchanger Tube

Product Description

Nickel Alloy Steel Heat Exchanger Tube ASME SB677 TP904L In Petrochemical Industry

Product Specifications

Attribute	Value
Material	TP904L
Standard	ASTM B677, ASME SB677
Ends	PE, BE
Testing	UT, ET, HT, PMI
Size	OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc
Application	Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle

Product Description

The Nickel Alloy Steel Heat Exchanger Tube ASME SB677 TP904L is a high-performance solution designed for extreme corrosion resistance in harsh industrial environments. Manufactured from TP904L stainless steel, this super austenitic alloy features elevated levels of chromium, nickel, and molybdenum for superior durability.

TP904L Stainless Steel offers enhanced corrosion resistance with its low carbon content and high alloy composition. The tubes comply with ASME SB677 specifications, ensuring adherence to rigorous industry standards for quality and performance in demanding applications.

Chemical Composition

Grade	Cr	Ni	Mo	Cu	C
TP904L	19.0-23.0%	23.0-28.0%	4.0-5.0%	1.0-2.0%	0.02% max

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
TP904L	≥ 220 MPa (32 ksi)	≥ 490 MPa (71 ksi)	≥ 35% in 50 mm	Typically ≤ 90 HRB

Industrial Applications

Petrochemical Industry: Heat exchangers in refineries and chemical processing equipment handling aggressive chemicals
Power Generation: Boiler feedwater heaters and heat recovery steam generators in power plants
Marine Applications: Cooling systems for ships and offshore platforms requiring seawater corrosion resistance
Pharmaceuticals: High-purity process equipment meeting strict health regulations
Food and Beverage: Pasteurization equipment and heat recovery systems
Aerospace and Defense: Heat exchangers in aircraft engines
Nuclear Power Plants: Secondary cooling loop systems
Cryogenic Applications: LNG heat exchangers
Environmental Technology: Waste heat recovery systems
