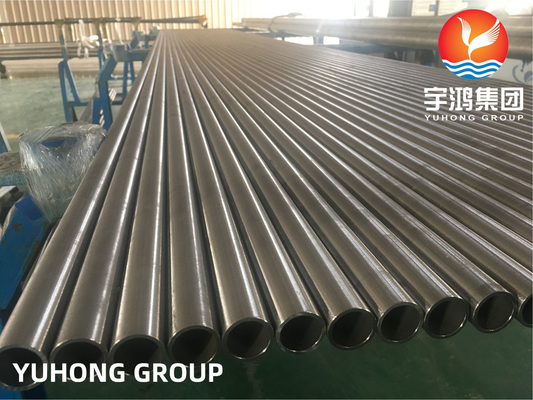

Nickel / Nickel Alloy Steel ASTM B163 NO8825 Heat Exchanger Tube

Brand Name:	YUHONG
Model Number:	Seamless Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material:

NO8825

Standard:

ASTM B163 , ASME SB163

Ends:

PE , BE

Testing:

HT , ET

Size:

1/2 Inch - 98 Inch

Application:

Heat Exchanger

Supply Ability:

10000 Tons/Month

Highlight:

ASTM B163 Stainless Steel Heat Exchanger Tube

Stainless Steel Heat Exchanger Tube NO8825

seamless steel Tube Corrosion Resistance

Product Description

Nickel / Nickel Alloy Steel ASTM B163 NO8825 Heat Exchanger Tube

Product Specifications

Attribute	Value
Material	NO8825
Standard	ASTM B163, ASME SB163
Ends	PE, BE
Testing	HT, ET
Size	1/2 inch - 98 inch
Application	Heat Exchanger

Product Description

Grade NO8825, commonly known as Inconel 825 or Alloy 825, is a nickel-iron-chromium alloy with additions of molybdenum, copper, and titanium. This composition provides excellent resistance to both reducing and oxidizing acids, stress corrosion cracking, and localized attack such as pitting and crevice corrosion. NO8825 is also known for its good mechanical properties at both room and elevated temperatures.

Chemical Composition

Grade	Ni	Cr	Fe	Mo	Cu	Ti	Mn	Si	C	S	Al
NO8825	38.0-46.0%	19.5-23.5%	≥ 22.0%	2.5-3.5%	1.5-3.0%	0.6-1.2%	≤ 1.0%	≤ 0.5%	≤ 0.05%	≤ 0.03%	≤ 0.2%

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
NO8825	Minimum 585 MPa (85,000 psi)	Minimum 240 MPa (35,000 psi)	30% minimum in 50 mm	≤ 200 HB (Brinell Hardness)

Key Features

Corrosion Resistance: Excellent resistance to a wide range of corrosive environments, including sulfuric and phosphoric acids.
Stress Corrosion Cracking Resistance: High resistance to stress corrosion cracking in chloride-bearing solutions.
High Temperature Stability: Good mechanical properties and oxidation resistance at elevated temperatures.
Weldability: Good weldability with proper techniques and post-weld treatments.

Applications

Chemical Processing Industry: Heat exchangers, reactors and pressure vessels, and piping systems that require resistance to highly corrosive chemicals.

Oil and Gas Industry: Offshore platforms, subsea equipment, and refinery components exposed to seawater and corrosive substances.

Power Generation: Nuclear power plant components, heat exchangers, and steam generators requiring high-performance materials.
