Stainless Steel SA213 TP347H Heat Exchanger Tube Used for Condensers and Reboilers

Stainless Steel SA213 TP347H Heat Exchanger Tube Used for Condensers and Reboilers

Brand Name: YUHONG GROUP
MOQ: 1PC
Price: 1--10000 USD
Payment Terms: L/C, T/T
Supply Ability: 10000 tons/month
Detail Information
Place of Origin:
CHINA
Certification:
ASME, U STAMP, API,ASME, ABS, LR, DNV, GL , BV, KR, TS, CCS
Tube Material:
TP304L, TP316L, TP309S, TP310H, TP321, TP347H
Length:
Max 34M/PC
O.D.:
6-50.8mm
W.T.:
0.5-15mm
Testing:
UT, ET, HT, PMI
Packaging Details:
WOODEN CASE WITH PLASTIC CAP
Supply Ability:
10000 tons/month
Highlight:

SA213 TP347H Heat Exchanger Tube

,

Condensers Heat Exchanger Tube

,

Reboilers Heat Exchanger Tube

Product Description
Stainless Steel SA213 TP347H Heat Exchanger Tube Used for Condensers and Reboilers
Product Specifications
Attribute Value
Certification ASME, U STAMP, API, ASME, ABS, LR, DNV, GL, BV, KR, TS, CCS
Tube Material TP304L, TP316L, TP309S, TP310H, TP321, TP347H
Length Max 34M/PC
O.D. 6-50.8mm
W.T. 0.5-15mm

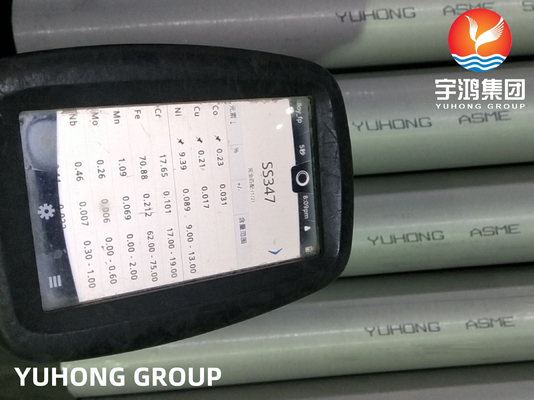

Testing UT, ET, HT, PMI
Chemical Composition
Grade UNS Designation C M P S Si Cr Ni Mo N Nb Ti Other
TP347H S34709 0.04-0.10 2.00 0.045 0.03 1.00 17.0-19.0 9.0-13.0 ... ... 8xC-1.10 ... ...
Applications
  • Petrochemical industry
    • Oil refinery: Heat exchangers, condensers and reboilers for atmospheric and vacuum units, catalytic cracking units, hydrofining units, etc.
    • Chemical plant: Heat exchangers, condensers and reactors for the production of ethylene, propylene, styrene and other chemical products.
    • LNG plant: Heat exchanger and cold box for LNG plant.
  • Electricity
    • Thermal power plants: superheaters, reheaters and economizers for boilers.
    • Nuclear power plant: For steam generators, condensers and feedwater heaters.
  • Other
    • Solar energy: heat exchange tubes for solar collectors.
    • Geothermal energy: heat exchange tubes for geothermal heat exchangers.
Key Features
  • Excellent high temperature resistance
    • High temperature strength: Adding niobium element to enhance the high temperature strength, suitable for high temperature environment.
    • Oxidation resistance: It has good oxidation resistance at high temperatures and prolongs service life.
  • Excellent corrosion resistance
    • Intergranular corrosion resistance: Niobium effectively prevents intergranular corrosion and is suitable for corrosive media.
    • Stress corrosion resistance: Good stress corrosion resistance in chloride-containing environments.
  • Good creep resistance
    • Creep resistance: Excellent creep resistance at high temperature and pressure to ensure long-term stable operation.
  • Easy to process and weld
    • Machinability: It has good plasticity and toughness, easy to process and form.
    • Weldability: Good welding performance, can use a variety of welding methods.
