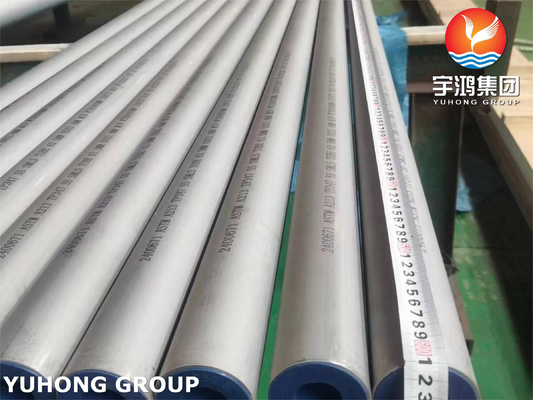

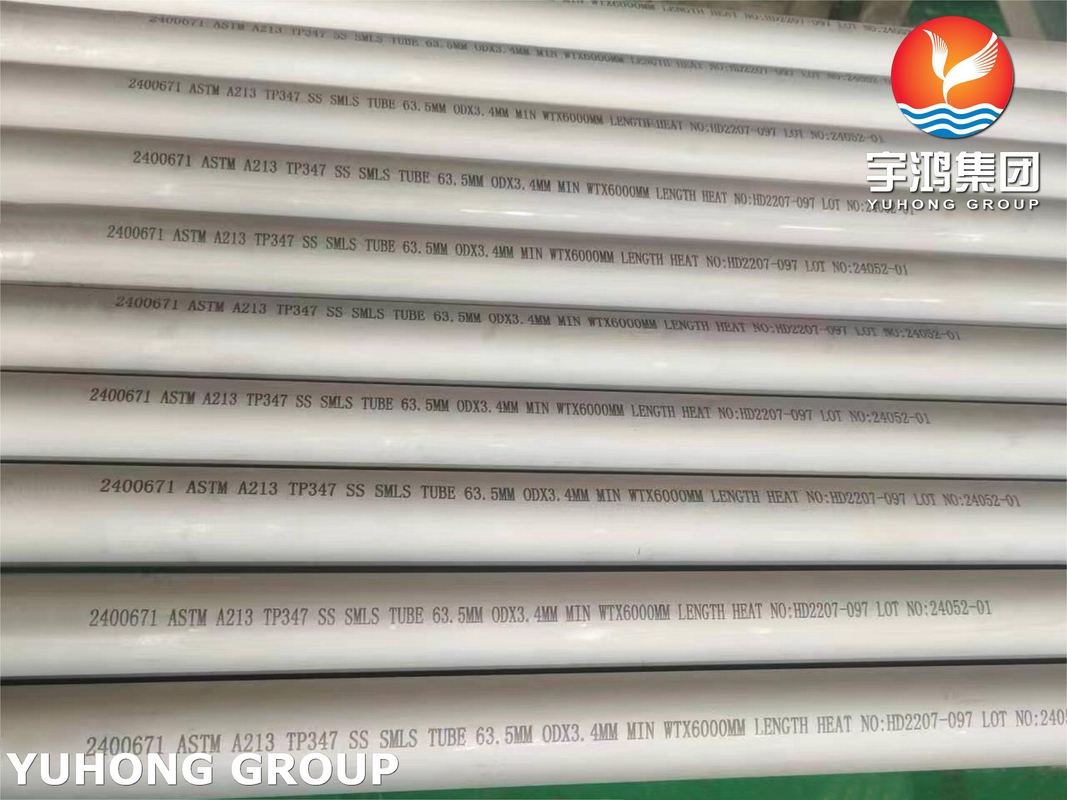

ASTM A213 TP347 Stainless Steel Seamless Tube For Heat Exchanger Application

Brand Name:	YuHong
Model Number:	ASTM A213 TP347
MOQ:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Plastic Caps on Tube's Both Ends
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, ABS, BV, ISO, ASTM, SGS

Product Name:

Stainless Steel Seamless Tube

Tube Specification:

ASTM A213 / ASME SA213

Tube Material:

TP347

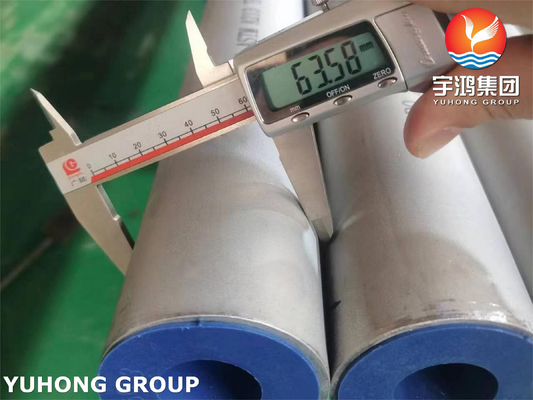

Tube's OD:

63.5mm

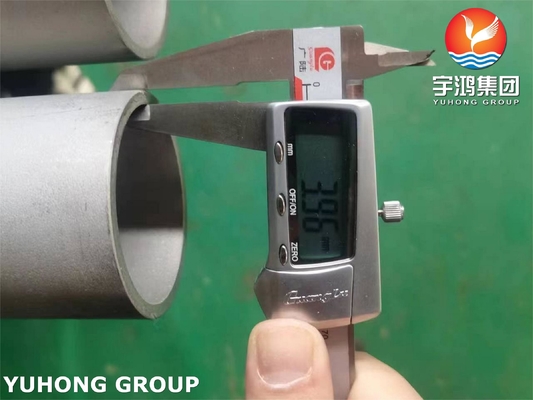

Tube's Wall Thickness:

3.4mm Minimum Wall Thickness

Tube's End:

Plain End

Tube's Length:

Depend On Customer

Application:

Heat Exchangers And Condensers Tubes, High-temperature Furnace Tubes...

Supply Ability:

According to Clients' requirements

Highlight:

Heat Exchanger Stainless Steel Seamless Tube

ASTM A213 Stainless Steel Seamless Tube

TP347 Stainless Steel Seamless Tube

Product Description

ASTM A213 TP347 Stainless Steel Seamless Tube For Heat Exchanger Application

Product Specifications

Attribute	Value
Product Name	Stainless Steel Seamless Tube
Tube Specification	ASTM A213 / ASME SA213
Tube material	TP347
Tube's OD	63.5mm
Tube's Wall Thickness	3.4mm minimum wall thickness
Tube's End	Plain end
Tube's length	Depend on Customer
Application	Heat exchangers and condensers Tubes, high-temperature furnace tubes

Product Overview

ASTM A213 TP347 is a specification for seamless tubes made from chromium-nickel stainless steel with additions of columbium and tantalum. These tubes are designed for high-temperature service and are commonly used in applications where resistance to corrosion and oxidation is critical.

The addition of columbium and tantalum improves the overall corrosion resistance, making it ideal for use in harsh environments. ASTM A213 TP347 seamless tubes are known for their excellent mechanical properties, including high strength and toughness. They are available in various sizes and thicknesses and are commonly used in chemical processing, power generation, and other high-temperature applications.

Key Advantages

Excellent resistance to high-temperature corrosion due to columbium and tantalum additions
High mechanical strength with excellent tensile strength, ductility, and toughness
Good weldability using common welding techniques
Versatile sizing and shapes for various industrial applications
Low maintenance requirements with high corrosion resistance
Cost-effective solution for demanding environments

Technical Specifications

Chemical Composition:

Carbon (C):	0.08% max
Manganese (Mn):	2.00% max
Phosphorus (P):	0.045% max
Sulfur (S):	0.030% max
Silicon (Si):	0.75% max
Nickel (Ni):	9.00-13.00%
Chromium (Cr):	17.00-20.00%
Columbium (Nb)/Tantalum (Ta):	10*C-1.00% max

Mechanical Properties:

Tensile Strength:	Up to 515 MPa (75 ksi)
Yield Strength:	Up to 205 MPa (30 ksi)
Elongation:	35% min
Hardness:	90 HRB max

Note: Properties may vary based on manufacturing process, size, and thickness.

Common Applications

High-temperature furnace tubes and heating element tubes
Chemical and petrochemical processing equipment
Refineries and plant processing systems
Power generation equipment including superheaters, boilers, and steam turbines
Heat exchangers and condensers in various industries
Aerospace and military high-temperature applications
