products details

Home > Products >

Heat Exchanger Tube

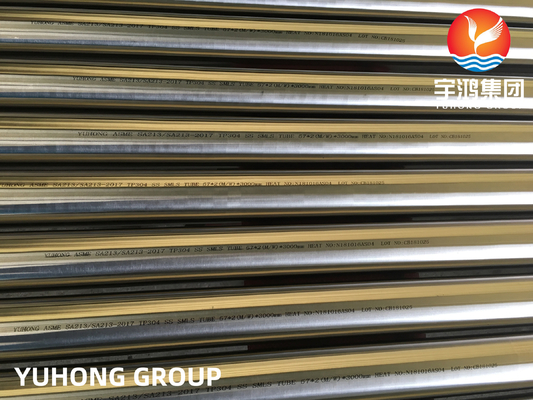

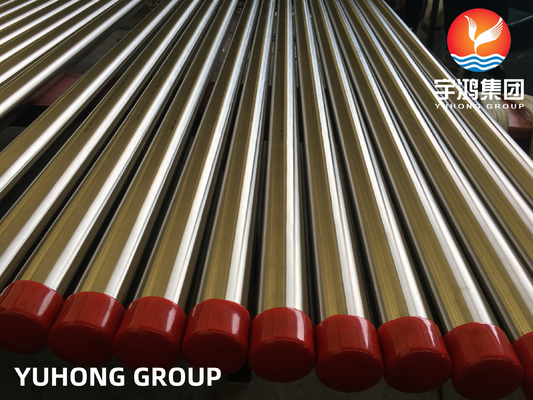

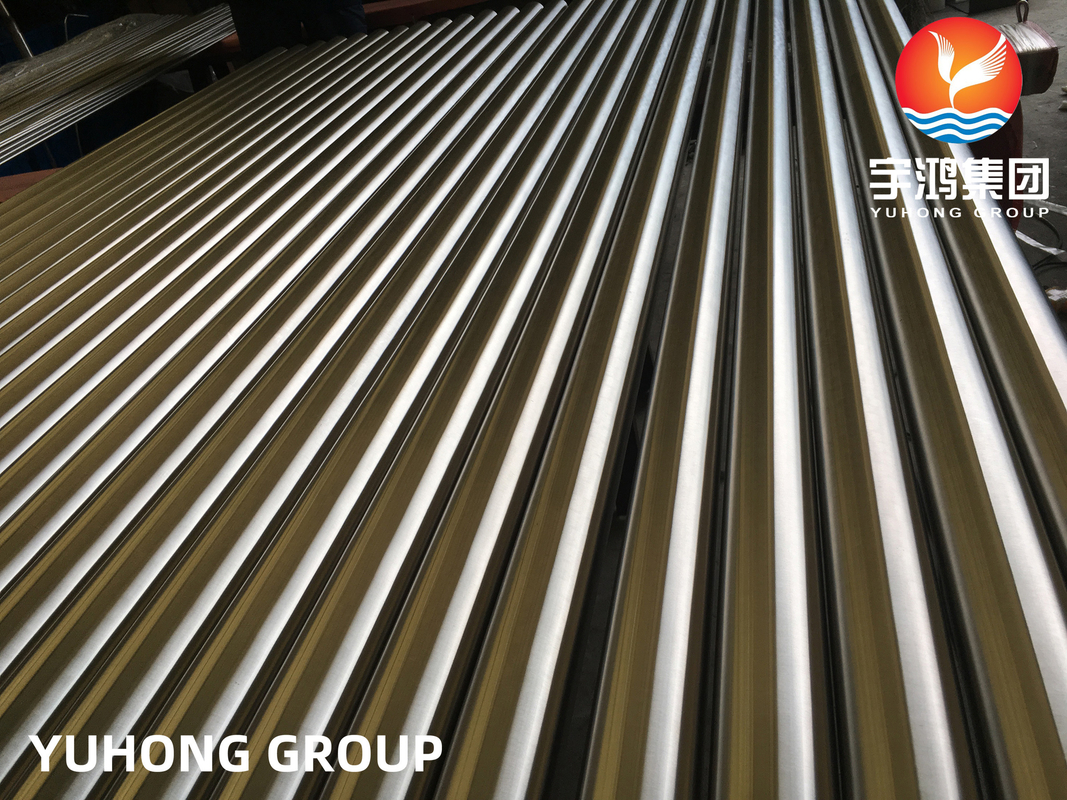

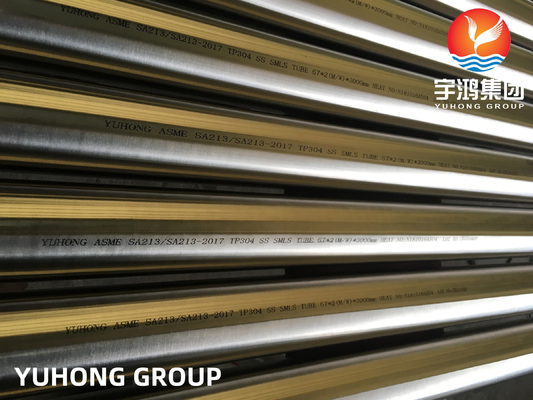

Stainless Steel Seamless Tube ASME SA213 TP304 1.4301 SUS304 For Petrochemical

All Category

Stainless Steel Heat Exchanger Tube

Duplex Stainless Steel Heat Exchanger Tube

Super Duplex Stainless Steel Heat Exchanger Tube

Nickel Alloy Steel Heat Exchanger Tube

Copper Alloy Steel Heat Exchanger Tube

Titanium Alloy Steel Heat Exchanger Tube

Alloy Steel Heat Exchanger Tube

Carbon Steel Heat Exchanger Tubes

Nickel Alloy Steel Boiler Tube

Duplex Stainless Steel Boiler Tube

Carbon Steel Boiler Tube

Sales Dept. (Marketing Director)

sales@steelseamlesspipe.com

+8613819835483

Contact Now

Stainless Steel Seamless Tube ASME SA213 TP304 1.4301 SUS304 For Petrochemical

Brand Name:	YUHONG
Model Number:	TP304, 1.4301, SUS304
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material:

TP304, 1.4301, SUS304

Standard:

ASME SA213 , ASTM A213

Type:

Coil, Straight, U Bend

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

Petrochemical Stainless Steel Seamless Tube

ASME SA213 Stainless Steel Seamless Tube

SUS304 Stainless Steel Seamless Tube

Product Description

Stainless Steel Seamless Tube ASME SA213 TP304 1.4301 SUS304 For Petrochemical

Product Specifications

Attribute	Value
Material	TP304, 1.4301, SUS304
Standard	ASME SA213, ASTM A213
Type	Coil, Straight, U bend
NDT	UT, ET, HT, PMI
Size	OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc
Application	Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle

Product Description

Stainless Steel Seamless Tube, ASTM SA213 TP304 (1.4301, SUS304) For Petrochemical Application

The designation ASME SA213 indicates that the tube meets the specifications set by the American Society of Mechanical Engineers (ASME) for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat exchanger tubes. ASME SA213 outlines the necessary testing procedures, including hydrostatic tests, non-destructive testing, and dimensional inspections, to verify the quality and safety of the tubes.

TP304 has good resistance to a wide range of corrosive environments, although it may not be suitable for chloride-containing environments, which can lead to pitting corrosion. TP304 is a type of austenitic stainless steel, primarily composed of iron, chromium (18-20%), and nickel (8-10.5%). This composition gives it excellent corrosion resistance and good weldability.

Chemical Composition

Grade	Cr	Ni	C
SA213 TP304	18.0-20.0%	8-10.5%	≤ 0.08%

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
SA213 TP304	≥ 205 MPa (30 ksi)	≥ 515 MPa (75 ksi)	≥ 35% in 50 mm	Typically ≤ 90 HRB

Applications

Chemical Processing: Heat exchangers for mild chemicals and process piping requiring moderate corrosion resistance.
Food and Beverage Industry: Processing equipment resistant to food acids, ideal for dairy and beverage systems.
Water Treatment: Condenser tubes for fresh water systems ensuring longevity and reliability.
HVAC Systems: Coils and heat exchangers for efficient heat transfer in moderate temperature environments.
Pharmaceutical Industry: Process equipment ensuring cleanliness and corrosion resistance in sensitive processes.
