Stainless Steel Welded ASTM A269 TP316L Heat Exchanger Tube

Brand Name:	YUHONG
Model Number:	WELDED
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case & Woven Bag
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Material:

TP316L

Standard:

ASTM A269 , ASME SA269

Ends:

PE , BE

Testing:

UT, ET, HT, PMI

Size:

OD : 6mm~ 50.8mm , WT: 0.5mm~ 15mm, L: Max:34m/pc

Application:

Heat Exchanger, Cooling , Heating, Condenser, Tube Bundle

Supply Ability:

10000 Tons/Month

Highlight:

Heat Exchanger Stainless Steel Welded Tube

TP316L Stainless Steel Welded Tube

Welded stainless steel heat exchanger tube

Product Description

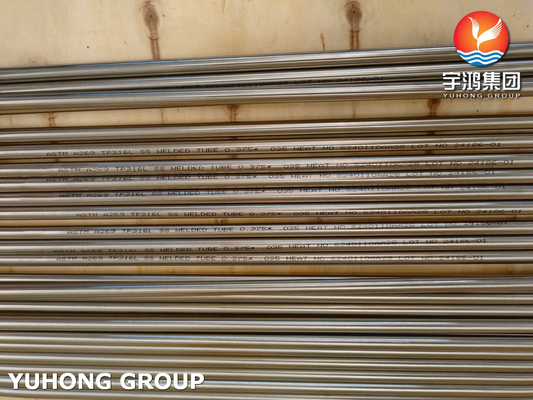

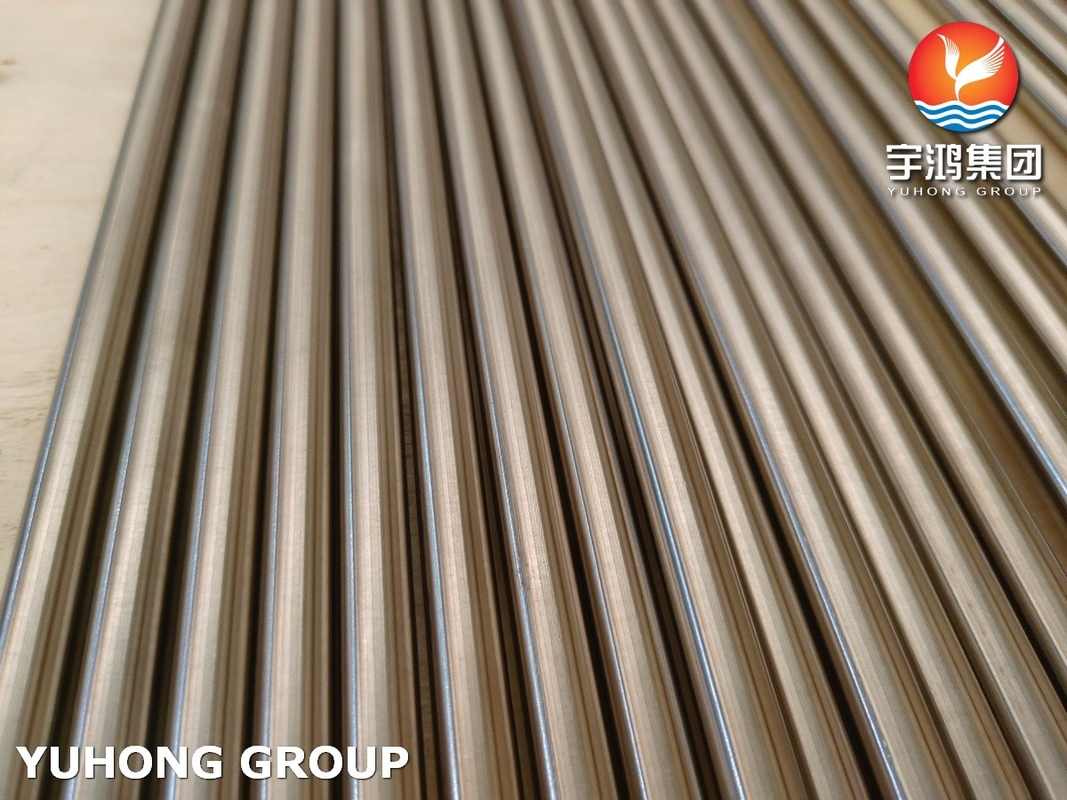

Stainless Steel Welded ASTM A269 TP316L Heat Exchanger Tube

Product Specifications

Attribute	Value
Material	TP316L
Standard	ASTM A269, ASME SA269
Ends	PE, BE
Testing	UT, ET, HT, PMI
Size	OD: 6mm~50.8mm, WT: 0.5mm~15mm, L: Max:34m/pc
Application	Heat Exchanger, Cooling, Heating, Condenser, Tube Bundle

Product Description

The ASTM A269 TP316L Stainless Steel Heat Exchanger Tube is a premium welded tubing solution engineered for superior heat transfer performance in corrosive environments. Manufactured from TP316L stainless steel, this tube offers exceptional corrosion resistance and long-term durability.

Conforming to ASTM A269 standards for seamless and welded austenitic stainless steel tubing, the TP316L grade provides excellent mechanical properties including high tensile strength, elongation, weldability, and formability.

Chemical Composition

Grade	Cr	Ni	Mo	C
TP316L	16.00-28.00%	10.0-14.0%	2.0-3.0%	0.03% max

Mechanical Properties

Grade	Yield Strength	Tensile Strength	Elongation	Hardness
TP316L	≥ 170 MPa (25 ksi)	≥ 485 MPa (70 ksi)	≥ 35% in 50 mm	Typically ≤ 95 HRB

Key Applications

Chemical Processing: Heat exchangers and reactors for handling corrosive chemicals at high temperatures, ensuring process efficiency and safety.
Food and Beverage Industry: Pasteurizers and sterilizers requiring high corrosion resistance and hygiene standards.
Pharmaceutical Industry: Process heaters and coolers for temperature-sensitive applications demanding cleanliness and corrosion resistance.
Marine Applications: Heat exchangers resistant to pitting and crevice corrosion in high-chloride environments.
Desalination Plants: Evaporator tubes for handling saline solutions with exceptional durability.
