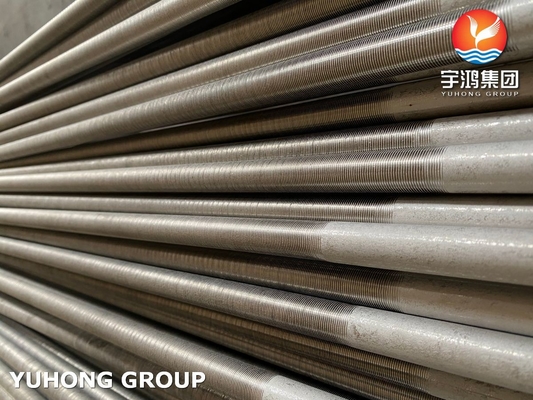

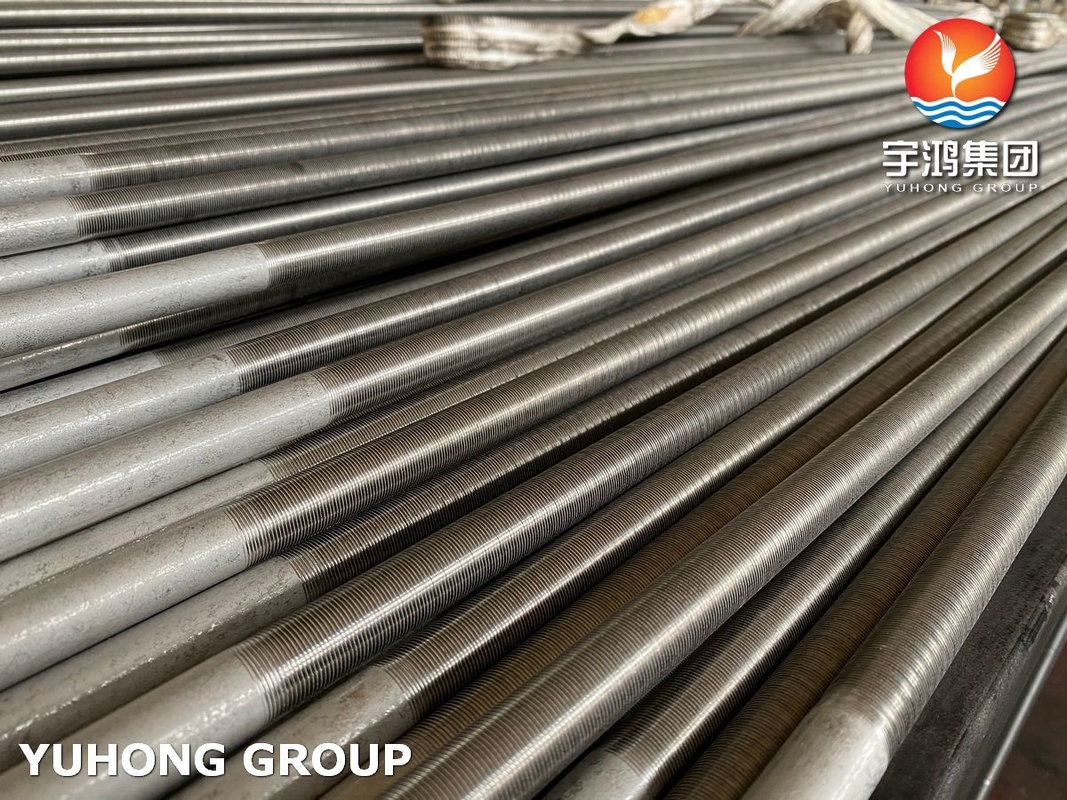

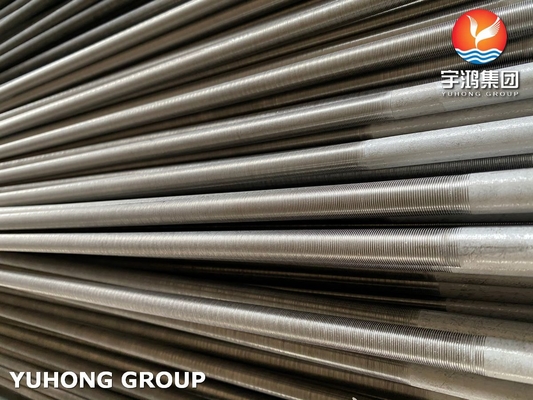

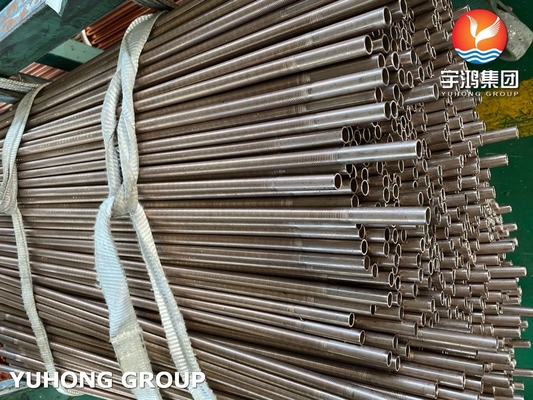

Copper Nickel 70 / 30 Low Fin Tubes ASTM B111 C71500 For Condensers

Brand Name:	YUHONG
Model Number:	ASTM B111 C71500
MOQ:	Depend the size of finned tubes, 50-100PC
Price:	30-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Product:

Fin Tubes Or Finned Tube

Type:

Low Fin Tubes / Integral Fin Tubes

Standard:

ASTM B111

Material:

C71500 Tube CuNi 70 / 30

For Large Equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, Etc

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

C71500 Low Fin Tubes

ASTM B111 Low Fin Tubes

Condensers Low Fin Tubes

Product Description

Copper Nickel 70 / 30 Low Fin Tubes ASTM B111 C71500 For Condensers

Product Specifications

Attribute	Value
Product	Fin Tubes or Finned Tube
Type	Low Fin Tubes / Integral Fin Tubes
Standard	ASTM B111
Material	C71500 Tube CuNi 70 / 30
Use	For large equipment, Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators, etc
Packing	Ply-wooden Case With Iron Frame

Product Description

ASTM B111 establishes requirements for seamless tube and ferrule stock of copper and various copper alloys up to 31⁄8 in. (80 mm), inclusive, in diameter, for use in surface condensers, evaporators, and heat exchangers.

Chemical Composition (%) 70-30 Copper-Nickel

Grade	Cu	Ni, incl Co	Pb	Fe	Zn	Mn
C71500	remainder	29.0-33.0	0.05	0.4-1.0	1.00	1.00

Mechanical Properties

Grade	Standard	Tensile Strength,min	Yield Strength (0.2%Offset,min)
C71500	O61	52ksi	18ksi
C71500	HR50	72ksi	50ksi

Definition

Low fin tubes are specialized heat exchanger tubes designed to enhance heat transfer by increasing the surface area. They feature small, closely spaced fins on their outer surface, which are typically shorter and have a height of about 0.125 to 0.25 inches.

The Low Fin Tubes/Integral Fin Tubes are increasingly being used in various fluid heat exchangers, such as in coolers, condensers, and chillers. They are specialized heat exchangers designed to enhance heat transfer efficiency while maintaining a compact structure.

Material: Typically constructed from materials such as carbon steel, stainless steel, alloy or copper, providing durability and resistance to corrosion.

Advantages

Corrosion resistance, wear resistance, low contact thermal resistance
The design increases surface area, improving the efficiency of heat exchange processes
The low-profile fins minimize flow resistance, leading to lower energy consumption in pumping systems
The reduced fin height allows for a more compact heat exchanger, making them suitable for space-constrained applications
With a versatile application, suitable for a wide range of industries, including oil and gas, chemical processing, and power generation

Applications

Petrochemical Industry: Used in heat exchangers for processes such as cracking furnaces and distillation towers, which operate under high temperatures and pressures and involve corrosive environments.

Oil and Gas Industry: Utilized in air-cooled heat exchangers for cooling fluids and gases in various applications, including compressors, pumps, and separators, especially in remote locations where water is scarce.

Chemical Processing: Used in chemical plants to cool process fluids and reactors, where their robust design can handle corrosive and hazardous substances.

Power Generation: In thermal power plants, used in heat exchangers for cooling and condensing steam, thereby improving the efficiency of the power generation process.

Marine Applications: Used in heat exchangers for marine applications, including engine cooling and other systems that require efficient heat transfer in a compact design.

Air Conditioning and Refrigeration: Employed in condensers and evaporators of air conditioning and refrigeration systems to improve heat transfer efficiency between refrigerants and air.

HVAC Systems: In large commercial and industrial buildings, used in HVAC systems to reject heat from refrigerants, helping to maintain comfortable indoor climates.

Technical Specifications

Type	Description	Base tube O.D. (mm)	Fin pitch (mm)	Fin height (mm)	Fin thick (mm)
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6-10	<17	0.2-0.4
Low fin tube	T-type fin tube	10-38	0.6-2	<1.6	~0.3
Bamboo tube	corrugated tube	16-51	8-30	<2.5	~0.3
Wound	L / KL / LL type fin tube	16-63	2.1-5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3-25	5-30	0.8-3
