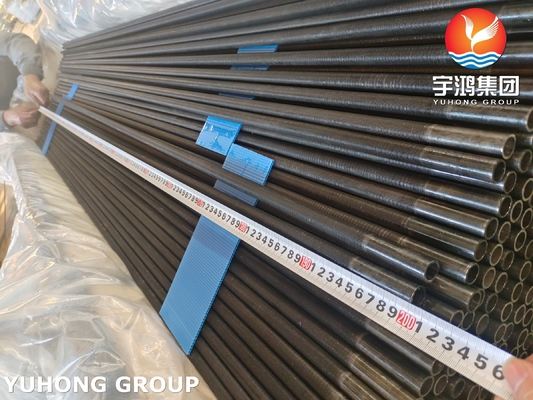

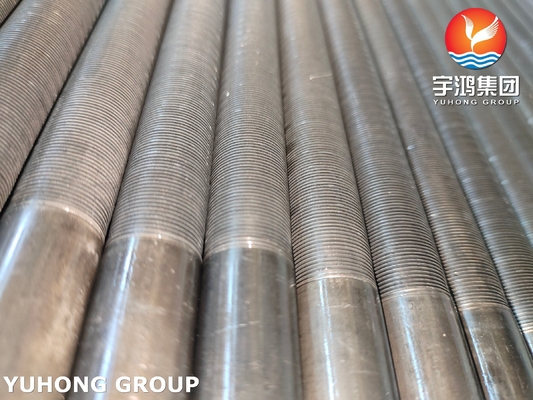

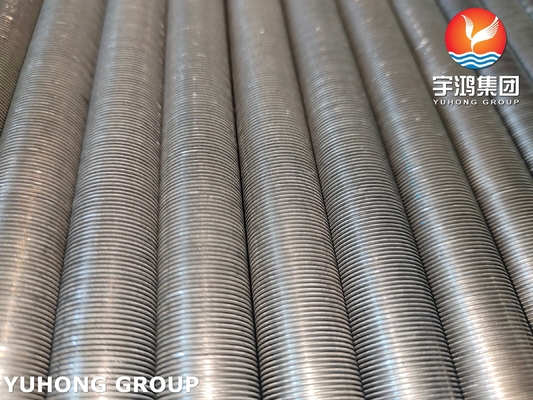

ASME SA179 Carbon Steel Low Fin Tubes For Heat Exchanger Tube HT And ECT

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Mateial:

ASTM A179

Fin Type:

Low Fin Type

Fin Thickness:

0.3mm

Fin Height:

1.24mm

Application:

Heat Exchanger

Highlight:

ASME Low Fin Tube

SA179 Low Fin Tube

ECT fin fan air cooler

Product Description

ASME SA179 Carbon Steel Low Fin Tubes For Heat Exchanger Tube HT And ECT

Product Specifications

Attribute	Value
Material	ASTM A179
Fin Type	Low fin Type
Fin Thickness	0.3mm
Fin Height	1.24mm
FPI	26
Application	Heat Exchanger

Product Overview

The ASME SA179 Carbon Steel Low Fin Tubes are engineered for heat exchanger applications demanding high thermal efficiency and durability. These tubes feature a low fin design with aluminum fins mechanically bonded to the ASTM A179 carbon steel base tube. The design enhances heat transfer surface area while maintaining compact dimensions, making them ideal for heat exchangers, air coolers, and condensers.

Key Features

Base Tube Material: ASME SA179 Carbon Steel

ASME SA179 is a low-carbon seamless steel tube material known for excellent thermal conductivity, weldability, and mechanical strength
Ideal for heat exchangers, boilers, condensers, and cooling systems operating under high-temperature and high-pressure conditions

Fin Type: Low Fin Tube Design

Features small, closely spaced fins that increase surface area for heat exchange
Reduces air resistance while improving heat transfer performance in compact systems

Application: Heat Exchanger Tubes, Air Coolers, Condensers

Used in HVAC systems, power plants, chemical processing, and industrial cooling applications
Provides increased heat transfer for effective cooling in high-temperature environments

Heat Treatment (HT) & Eddy Current Testing (ECT)

Heat treatment ensures optimal mechanical properties, strength, and corrosion resistance
Eddy Current Testing verifies surface integrity, detecting cracks, pits, and other flaws

Chemical Composition

Base Tube: ASME SA179 Carbon Steel

Element	Percentage
Carbon (C)	≤ 0.06%
Manganese (Mn)	0.27% - 0.63%
Phosphorus (P)	≤ 0.035%
Sulfur (S)	≤ 0.035%

Mechanical Properties

Base Tube: ASME SA179 Carbon Steel

Property	Value
Tensile Strength	335 - 485 MPa
Yield Strength	≥ 205 MPa
Elongation	≥ 30%
Hardness	160 - 190 HB

Advantages

Increased Heat Transfer Efficiency: Low fin design provides larger surface area for effective heat exchange
Compact Design: Low fin height allows for space-efficient installations
Corrosion Resistance: Aluminum fins offer excellent oxidation and corrosion resistance
Quality Assurance: HT and ECT ensure mechanical properties and surface integrity
Cost-Effective: Combines carbon steel durability with aluminum fin efficiency

Applications

Condenser Tubes: For vapor-to-liquid conversion in industrial and HVAC systems
Heat Exchanger Tubes: In chemical processing, petrochemical plants, and power plants
Air Coolers: For effective heat dissipation in industrial cooling systems
HVAC Systems: Large-scale air-conditioning heat exchange applications

Conclusion

The ASTM A179 / ASME SA179 Carbon Steel Low Fin Tubes provide an efficient, durable solution for heat exchanger applications. With their optimized low fin design, corrosion resistance, and quality assurance through heat treatment and eddy current testing, these tubes deliver high thermal efficiency, long-term reliability, and cost-effectiveness in demanding industrial environments.
