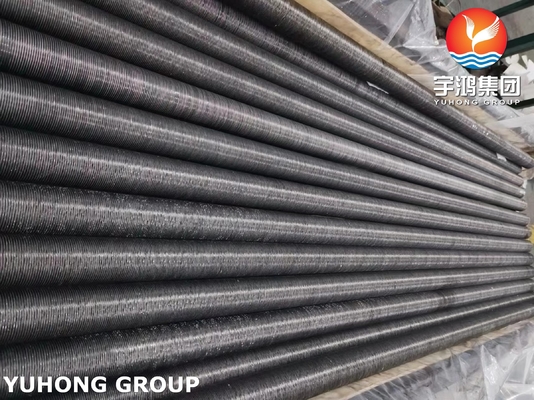

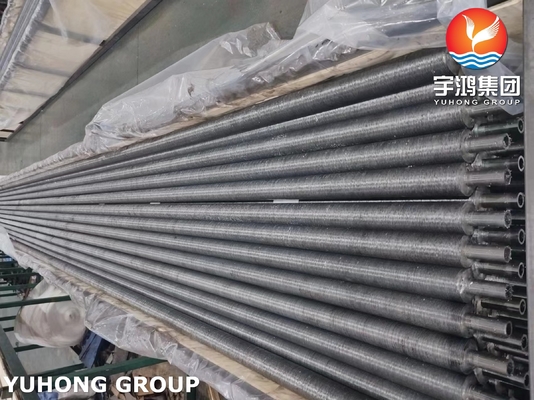

ASME SA179 ASTM A179 Carbon Steel L Type Fin Tubes With Al1060 Aluminium Strip

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

Fin Material:

Alumunium AL1060

Fin Height:

15.875mm

Fin Thk.:

0.4mm

Application:

Heat Exchanger

Highlight:

Carbon Steel tube fins

L Type tube fins

SA179 fin tubes

Product Description

ASME SA179 ASTM A179 Carbon Steel L Type Fin Tubes With Al1060 Aluminium Strip

Attribute	Value
Material	A179
Fin Material	Aluminium AL1060
Fin Height	15.875mm
Fin Thk.	0.4mm
FPI	9-13
Application	Heat Exchanger

Product Overview

The ASTM A179 / ASME SA179 Carbon Steel L-Type Fin Tubes with Al1060 Aluminum Strip are engineered for heat exchanger applications, delivering exceptional thermal efficiency and corrosion resistance. These tubes combine carbon steel (ASTM A179) for structural integrity with Al1060 aluminum fins for optimal heat transfer, creating a cost-effective and durable solution for industrial cooling systems including air coolers, condensers, and heat exchangers.

Key Features

Base Tube Material: ASTM A179 Carbon Steel - Low-carbon steel with excellent mechanical properties and thermal conductivity, ideal for high-temperature and high-pressure environments.

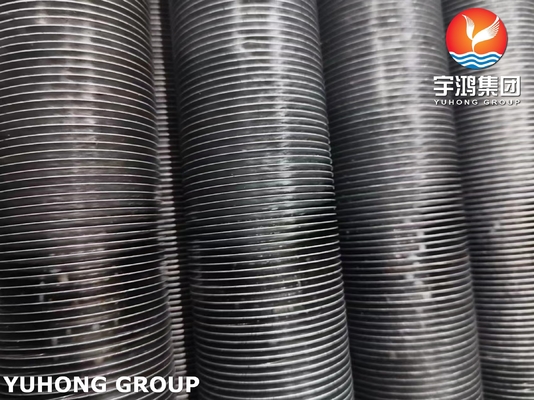

Fin Type: L-Type Fin - Spiral-wound aluminum strip design increases surface area for superior heat dissipation with minimal air-side resistance.
Fin Material: Al1060 Aluminum Strip - Offers exceptional thermal conductivity, lightweight properties, and corrosion resistance.
Application: Heat Exchanger, Air Coolers, Condensers - Designed for industrial systems requiring high-efficiency heat transfer in demanding environments.

Chemical Composition

Base Tube: ASTM A179 Carbon Steel

Element	Composition
Carbon (C)	≤ 0.06%
Manganese (Mn)	0.27% - 0.63%
Phosphorus (P)	≤ 0.035%
Sulfur (S)	≤ 0.035%

Fin Material: Al1060 Aluminum

Element	Composition
Aluminum (Al)	≥ 99.0%
Iron (Fe)	≤ 0.35%
Copper (Cu)	≤ 0.05%
Silicon (Si)	≤ 0.25%

Mechanical Properties

Base Tube: ASTM A179 Carbon Steel

Property	Value
Tensile Strength	335 - 485 MPa
Yield Strength	≥ 205 MPa
Elongation	≥ 30%
Hardness	Brinell hardness: 160 - 190 HB

Fin Material: Al1060 Aluminum

Property	Value
Tensile Strength	70 - 110 MPa
Yield Strength	30 - 55 MPa
Elongation	≥ 20%

Advantages

High Heat Transfer Efficiency: L-type fin design maximizes surface area for optimal heat dissipation.
Corrosion Resistance: Al1060 aluminum provides excellent resistance to oxidation and corrosion.
Durability and Strength: Carbon steel base tube withstands high-pressure conditions while aluminum fins ensure long-term reliability.
Energy Efficiency: Superior thermal conductivity reduces energy consumption in cooling systems.
Cost-Effectiveness: Combines affordable carbon steel with high-performance aluminum for optimal value.

Applications

Industrial air cooling systems
Chemical processing and petrochemical plant heat exchangers
Industrial condensers
Large-scale HVAC systems

Conclusion

The ASTM A179 Carbon Steel L-Type Fin Tube with Al1060 Aluminum Strip delivers exceptional performance in heat exchanger and cooling applications. Its innovative design combines high thermal efficiency, corrosion resistance, and mechanical durability, making it an ideal solution for demanding industrial environments.
