Wound Fin Tube

SA249 TP304 ASME Stainless Steel Welded Tube L Type Fin Tube For Air Cooler

All Category

Stainless Steel Heat Exchanger Tube

Duplex Stainless Steel Heat Exchanger Tube

Super Duplex Stainless Steel Heat Exchanger Tube

Nickel Alloy Steel Heat Exchanger Tube

Copper Alloy Steel Heat Exchanger Tube

Titanium Alloy Steel Heat Exchanger Tube

Alloy Steel Heat Exchanger Tube

Carbon Steel Heat Exchanger Tubes

Nickel Alloy Steel Boiler Tube

Duplex Stainless Steel Boiler Tube

Carbon Steel Boiler Tube

Sales Dept. (Marketing Director)

sales@steelseamlesspipe.com

+8613819835483

Contact Now

SA249 TP304 ASME Stainless Steel Welded Tube L Type Fin Tube For Air Cooler

Brand Name:	Yuhong
Model Number:	ASME SA249 TP304
MOQ:	100KGS
Price:	Negotiable

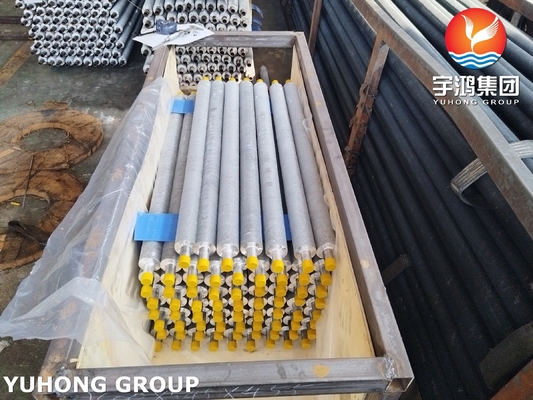

Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

ASME SA249 TP304

Tube Type:

Welded

Fin Material:

Al1060

Fin Type:

LL/L/KL

Fin Height:

15.875mm

Application:

Air Cooler

Highlight:

TP304 stainless steel welded tube

SA249 stainless steel welded tube

Air Cooler fin tube heat

Product Description

SA249 TP304 ASME Stainless Steel Welded Tube L Type Fin Tube For Air Cooler

Product Specifications

Attribute	Value
Material	ASME SA249 TP304
Tube Type	Welded
Fin Material	Al1060
Fin Type	LL/L/KL
Fin Height	15.875mm
Application	Air Cooler

Product Overview

The ASME SA249 TP304 Stainless Steel Welded Tube with L-Type Fin is an energy-efficient, corrosion-resistant, and high-performance heat exchanger tube designed specifically for air coolers and condensers. Its L-type fin structure ensures optimal thermal efficiency, durability, and cost-effectiveness in HVAC, power plants, and industrial cooling applications.

Key Features

Base Tube Material: ASME SA249 TP304 austenitic stainless steel offers excellent corrosion resistance, high temperature strength, and durability, making it ideal for humid, high-temperature, and corrosive environments.
Fin Type: L-Type wound fins provide tight contact with the tube for efficient heat transfer, offering good thermal conductivity and corrosion resistance while maintaining cost-effectiveness.
Application: Designed for air coolers, finned tube heat exchangers, condensers, and refrigeration systems to ensure optimal cooling efficiency and energy savings.

Chemical Composition

Base Tube: ASME SA249 TP304 Stainless Steel

Element	Composition (%)
Carbon (C)	≤ 0.08%
Manganese (Mn)	≤ 2.00%
Silicon (Si)	≤ 0.75%
Phosphorus (P)	≤ 0.045%
Sulfur (S)	≤ 0.03%
Chromium (Cr)	18.0 - 20.0%
Nickel (Ni)	8.0 - 11.0%

Fin Material: Aluminium 1060 / Stainless Steel 304

Element	Aluminium 1060 (%)	Stainless Steel 304 (%)
Al (Aluminium)	≥ 99.6%	-
Fe (Iron)	≤ 0.35%	≤ 0.08%
Si (Silicon)	≤ 0.25%	≤ 0.75%
Cu (Copper)	≤ 0.05%	-

Mechanical Properties

Base Tube: ASME SA249 TP304 Stainless Steel

Property	Value
Tensile Strength	≥ 515 MPa
Yield Strength	≥ 205 MPa
Elongation	≥ 35%
Hardness	≤ 90 HRB

Fin Material: Aluminium 1060

Property	Value
Tensile Strength	55 - 75 MPa
Yield Strength	≥ 15 MPa
Elongation	≥ 12%

Advantages

Excellent Corrosion Resistance: Stainless Steel TP304 ensures long service life in humid and corrosive environments.
Enhanced Heat Transfer Efficiency: L-type wound fins maximize heat transfer for better cooling performance.
Lightweight & High Strength: Aluminium 1060 fins provide high thermal conductivity while being lightweight.
Energy Efficient & Cost-Effective: Reduces overall operating costs by improving heat transfer efficiency.
Wide Range of Applications: Used in power plants, petrochemical industries, refrigeration, and HVAC systems.

Applications

Air Coolers for industrial cooling systems
Heat Exchangers in chemical and petroleum industries
Condensers for refrigeration and HVAC applications
Power Plants for thermal energy recovery
