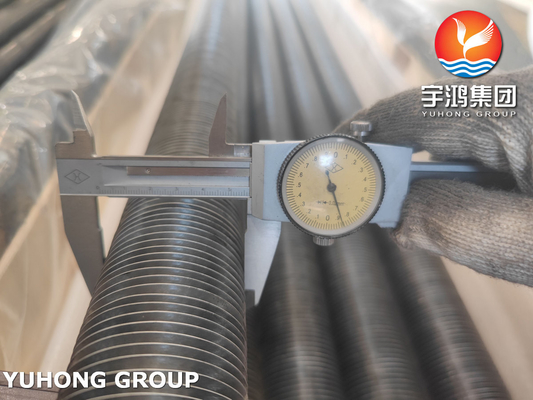

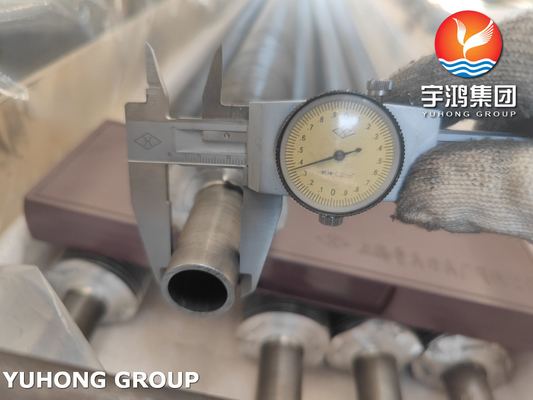

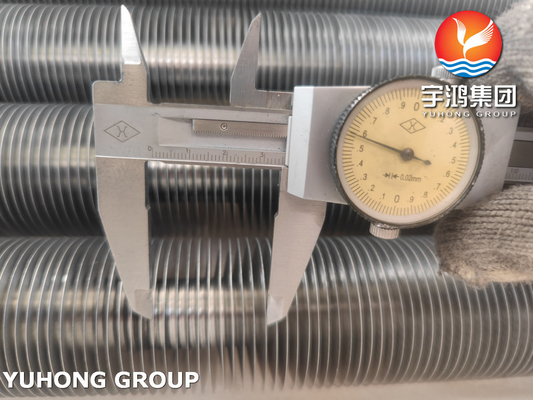

Air Cooler ASTM A179 Carbon Steel L Type Wound Fin Tube OD 25.4mm

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

Fin Material:

Al1060, Al1100

Fin Type:

G Type, Embedded

Fin Tube Test:

HT/ET

Fin Thk:

0.4mm

Highlight:

25.4mm fin tube

Wound fin tube

A179 fin tubes for heat exchangers

Product Description

Air Cooler ASTM A179 Carbon Steel L Type Wound Fin Tube OD 25.4mm

Product Specifications

Attribute	Value
Material	A179
Fin Material	Al1060, Al1100
Fin Type	G Type, Embedded
Fin tube test	HT/ET
Fin thk	0.4mm
FPI	9-13

Product Overview

The ASTM A179 Carbon Steel L Type Wound Fin Tube with an outer diameter of 25.4mm is engineered for optimal heat transfer in air cooler systems. Its specialized design combines durability with efficient thermal performance.

Key Features

Base Tube Material: ASTM A179 Carbon Steel - seamless construction offering excellent strength, durability, and thermal conductivity
Fin Design: L Type Wound Fin wrapped in a spiral pattern to maximize surface area and heat exchange efficiency
Standard Size: 25.4mm outer diameter provides ideal balance between strength and heat transfer performance
Specialized Application: Designed specifically for air coolers requiring efficient heat dissipation

Technical Specifications

Property	Base Tube (ASTM A179 Carbon Steel)	Fin Material (L Type Wound Fin)
Outer Diameter (OD)	25.4 mm	-
Wall Thickness	1.0 mm - 3.0 mm	-
Fin Thickness	-	0.4mm
Fin Height	-	10 mm - 15.875mm
Fin Type	-	L Type Wound Fin
Fin Attachment	Wounded to base tube	/

Chemical Composition

Element	ASTM A179 (Base Tube)	AL1060 (Fin)
Carbon (C)	0.06 - 0.18%	≤ 0.03%
Manganese (Mn)	0.27 - 0.63%	≤ 0.03%
Phosphorus (P)	≤ 0.035%	-
Sulfur (S)	≤ 0.035%	-
Aluminum (Al)	-	≥ 99.6%

Mechanical Properties

Property	ASTM A179 Carbon Steel (Base Tube)	L Type Wound Fin (Carbon Steel)
Tensile Strength	335 - 485 MPa	350 - 500 MPa
Yield Strength	≥ 205 MPa	200 MPa (min)
Elongation	≥ 30%	≥ 25%
Hardness	Brinell hardness: 160 - 190 HB	Brinell hardness: 160 - 210 HB

Product Advantages

Superior Heat Transfer: L Type Wound Fin design significantly increases surface area for enhanced heat dissipation
Exceptional Durability: ASTM A179 Carbon Steel withstands high-pressure and high-temperature environments
Corrosion Resistance: Base material provides moderate corrosion resistance with options for additional protective coatings
Cost Efficiency: Economical alternative to more expensive alloys without compromising performance
Design Flexibility: Customizable fin height and thickness to meet specific cooling requirements

Industrial Applications

Air Cooler Systems: Power generation, petrochemical plants, and industrial cooling applications
Heat Exchangers: Efficient cooling of air, water, and other fluids in thermal systems
Industrial Cooling: Manufacturing plants, oil refineries, and power generation facilities
HVAC Systems: Air handling units and cooling coils in heating, ventilation, and air conditioning systems
