SA209 Wound L Finned Heating Pipe ASME Welded Base Tube With AL1060 Fins In Air Cooler

Brand Name:	YUHONG
Model Number:	ASME SA209
MOQ:	Depend the size of finned tubes
Price:	1-10000 USD
Packaging Details:	Ply-wooden Case With Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Type:

Wound L Fin Tubes

Base Tubes:

ASTM A209 , ASME SA209

Fins:

AL1060

Working Temperature:

Application:

Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Packing:

Ply-wooden Case With Iron Frame

Supply Ability:

1000 tons/month

Highlight:

SA209 finned heating pipe

ASME finned heating pipe

AL1060 tube fin heat exchanger

Product Description

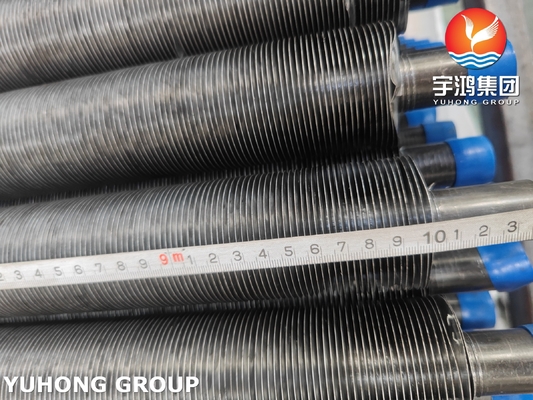

SA209 Wound L Finned Heating Pipe ASME Welded Base Tube With AL1060 Fins In Air Cooler

Product Specifications

Type	Wound L Fin Tubes
Base tubes	ASTM A209, ASME SA209
Fins	AL1060
Working temperature	230℃
Application	Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air cooler
Packing	Ply-wooden Case With Iron Frame

Product Description

ASME SA209 wound L fin tubes feature a carbon-molybdenum alloy-steel base tube with AL1060 aluminum fins, designed for high-performance heat transfer in demanding industrial applications.

Chemical Composition (AL1060)

Aluminum (Al): ~ 99.6%
Silicon (Si): ~ 0.25%
Iron (Fe): ~ 0.35%
Copper (Cu): ~ 0.05%
Manganese (Mn): ~ 0.05%
Magnesium (Mg): ~ 0.05%
Zinc (Zn): ~ 0.03%
Titanium (Ti): ~ 0.03%

Physical Properties

Density: ~ 2.70 g/cm³
Thermal Conductivity: ~ 237 W/m*K
Melting Point: ~ 660°C (1220°F)
Tensile Strength: ~ 55 MPa
Yield Strength: ~ 30 MPa
Specific Heat: ~ 0.900 J/g*K
Thermal Expansion: ~ 23.1 × 10^-6 /°C

Mechanical Properties

The AL1060 aluminum fins offer excellent ductility with a tensile strength of 55 MPa and yield strength of 30 MPa, making them ideal for forming into durable fin tubes without cracking.

Applications

Heat Exchanger Systems: Industrial heat exchangers, air conditioning, refrigeration, and HVAC systems
Radiators: Automotive radiators and electric generator cooling systems
Boilers and Steam Systems: High-efficiency heat transfer in boiler applications
Automotive Applications: Compact heat exchangers for engine cooling systems
