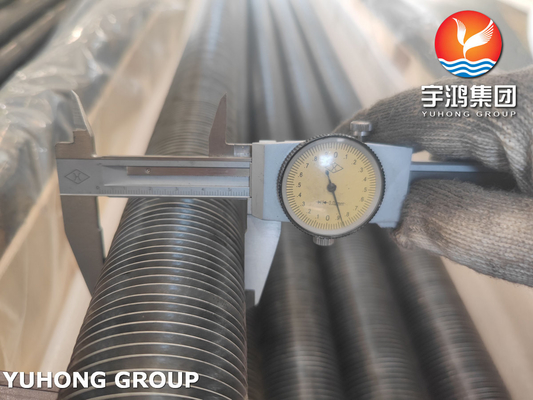

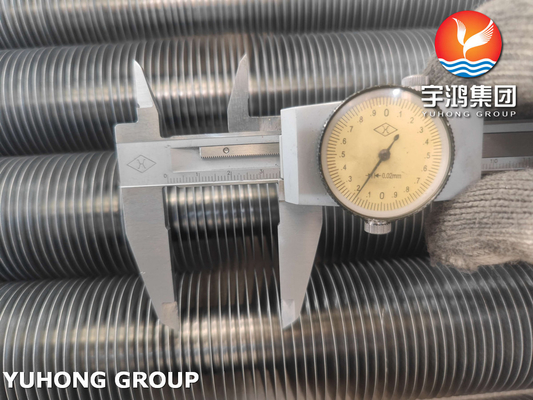

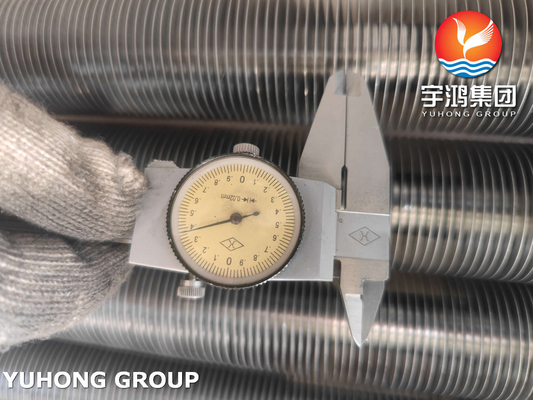

ASTM A179 Wound Fin Tube L Type With Material AL 1060 For Air Cooler Boiler

Brand Name:	YUHONG
Model Number:	L Type Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply - Wooden Case + Iron Frame
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Features:

High Efficiency, Corrosion Resistance, Easy To Clean

Type:

L/LL/KL Type Fin Tube

Base Tube Standard:

ASTM A179, ASME SA179

Fin Materials:

Aluminium, Copper

Bare Tube Diameter(MM):

16-63 Mm

Fin Pitch(MM):

2.1-5 Mm

Fin Height(MM):

<17 Mm

Fin Thick(MM):

~0.4 Mm

Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc

Highlight:

Al1060 Spiral Wound Fin Tubes, L Type Spiral Wound Fin Tubes, ASME SA179 Spiral Wound Fin Tubes

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A179 Wound Fin Tube

Boiler Wound Fin Tube

AL 1060 Wound Fin Tube

Product Description

ASTM A179 Wound Fin Tube L Type With Material AL 1060 For Air Cooler Boiler

Product Features

Attribute	Value
Features	High Efficiency, Corrosion Resistance, Easy To Clean
Type	L/LL/KL Type Fin Tube
Base Tube Standard	ASTM A179, ASME SA179
Fin Materials	Aluminium, Copper
Bare Tube Diameter (MM)	16-63 Mm
Fin Pitch (MM)	2.1-5 Mm
Fin Height (MM)	<17 Mm
Fin Thick (MM)	~0.4 Mm
Use	Heat Exchanger / Boiler / Furnaces / Condensers / Evaporators / Air Cooler, Etc
Highlight	Al1060 Spiral Wound Fin Tubes, L Type Spiral Wound Fin Tubes, ASME SA179 Spiral Wound Fin Tubes

Product Description

The ASTM A179 Wounded Fin Tube design significantly enhances the surface area of the tube, improving heat exchange efficiency and enabling effective thermal transfer in a compact space. AL1060 aluminum alloy has excellent corrosion resistance, making it suitable for various chemical environments and extending the lifespan of the tubes.

The L-fin structure enables high-efficiency heat exchange in limited spaces, making it suitable for compact equipment layouts. These tubes are widely applicable in refrigeration, air conditioning, and petrochemical industries, meeting various operational demands.

Chemical Composition

Grade	C	Si	Mn	P	S	Mo	Cr	V
A179	0.06-0.18	/	0.27-0.63	≤0.035	≤0.035	/	/	/

Mechanical Properties of ASTM A179/A179M

Tensile Strength (Mpa)	Yield Strength (Mpa)	Elongation (%)	Hardness (HRB)
≥325	≥180	≥35	≤72

Specifications For Various Types Of Finned Tubes

Type	Description	Base tube O.D. (mm)	Fin pitch (mm)	Fin height (mm)	Fin thick (mm)
Embedded	G-type fin tube	16-63	2.1-5	<17	~0.4
Extruded	Single metal combined metal	8-51	1.6-10	<17	0.2-0.4
Low fin tube t-type fin tube		10-38	0.6-2	<1.6	~0.3
Bamboo tube corrugated tube		16-51	8~30	<2.5	/
Wound	L/KL/LLtype fin tube	16-63	2.1-5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
H/HH type fin tube		25-63	8~30	<200	1.5-3.5
Studded fin tube		25-219	8~30	5~30	φ5-20

Key Advantages

High Heat Exchange Efficiency
Corrosion Resistance
Lightweight Design
Excellent Thermal Conductivity
Space Efficiency
Versatile Applications
Ease of Maintenance

Applications

Plate heat exchangers
Shell-and-tube heat exchangers
Industrial cooling towers
Circulation cooling systems
Central air conditioning systems
Split air conditioners
Boilers
Reactors
Evaporators
Heat Pump Systems
