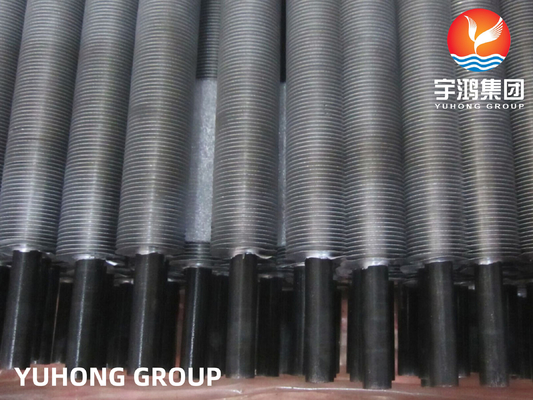

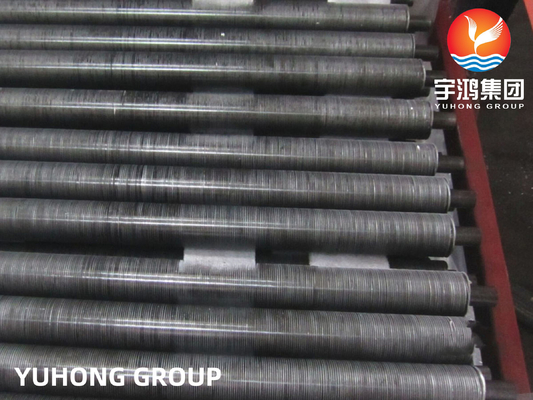

Wound Fin Tube ASME SA210 Gr.A-1 Aluminum ASTM B209 Gr.1060 For Air Cooler , Heat Exchager

Brand Name:	YUHONG
Model Number:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material:

Gr.A-1

Base Tube Standard:

ASME SA210 , ASTM B209

Type:

Wound, L Type, LL Type, KL Type

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

Fin Tube GrA 1

Fin Tube ASTM B209

ASME SA210 For Air Cooler

Product Description

Wound Fin Tube ASME SA210 Gr.A-1 Aluminum ASTM B209 Gr.1060 For Air Cooler, Heat Exchanger

Product Specifications

Attribute	Value
Base Tube Material	Gr.A-1
Base Tube Standard	ASME SA210, ASTM B209
Type	Wound, L type, LL Type, KL Type
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	L Type Fin Tube, LL Type Fin Tube, KLM Fin Tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

The Wound Fin Tube with ASME SA210 Gr.A-1 base and ASTM B209 Gr.1060 aluminum fins is engineered for optimal performance in heat exchanger applications. Gr.A-1 is a medium-carbon steel grade specifically designed for high temperature and pressure environments, making it ideal for boiler and superheater tubes.

Technical Specifications

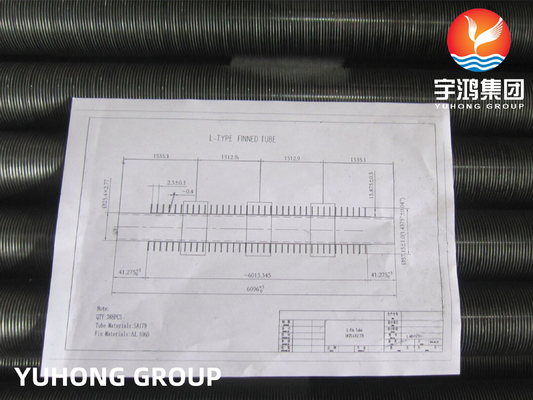

Type	Description	Base tube O.D. (mm)	Fin pitch	Fin height	Fin thick
Wound	L / KL / LL Type Fin Tube	16-63	2.1-5	<17	~0.4

Chemical Composition

Grade	C	Mn	P	S	Si
Gr.A-1	0.27-0.33%	0.93% minimum	≤ 0.035%	≤ 0.035%	0.10% minimum

Mechanical Properties

Tensile Strength	415 MPa (60,000 psi) minimum
Yield Strength	255 MPa (37,000 psi) minimum
Elongation	30% minimum in 50 mm
Hardness	≤ 79 HRB (Rockwell Hardness B)

Key Features

Enhanced Heat Transfer: Aluminum fins significantly increase surface area for improved heat transfer rates
Corrosion Resistance: Aluminum fins provide excellent resistance to corrosion in air and water environments
Mechanical Bonding: Wound L type fin design ensures secure mechanical bond between fins and base tube
High Thermal Conductivity: Aluminum fins ensure efficient heat exchanger performance
Durable Construction: Gr.A-1 base tube provides strength and resistance to mechanical stress

Applications

Boilers and Superheaters

Power Plants: Steam boilers and superheaters in power generation
Industrial Boilers: High temperature and pressure industrial applications

Heat Exchangers

Shell and Tube Heat Exchangers: Chemical and petrochemical industries
Air-Cooled Heat Exchangers: Industrial and HVAC cooling systems

Chemical Processing

Chemical Plants: Heat exchangers and condensers
Petrochemical Refineries: High strength and corrosion resistance applications
