Monel 400 ASME SB163 NO4400 Al 1060 Wound Fin Tube For Air Cooler , Heat Exchager

Brand Name:	YUHONG
Model Number:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material:

Monel 400

Base Tube Standard:

ASME SB163 , ASTM B163

Type:

Wound, L Type, LL Type, KL Type

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

Monel 400 Fin Tube

Fin Tube ASME SB163

Al 1060 low fin tube

Product Description

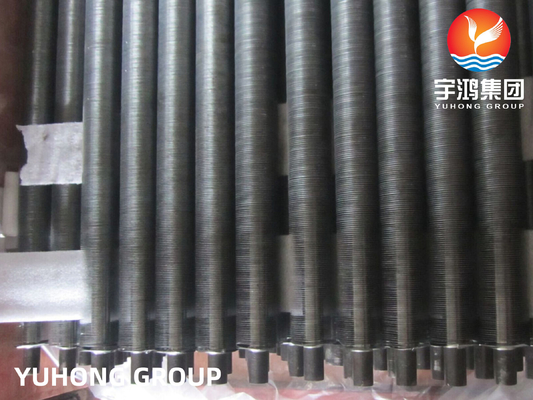

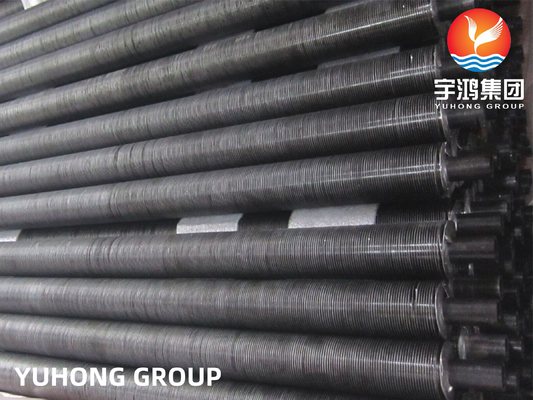

Monel 400 ASME SB163 NO4400 Al 1060 Wound Fin Tube For Air Cooler & Heat Exchanger

Product Specifications

Attribute	Value
Base Tube Material	Monel 400
Base Tube Standard	ASME SB163, ASTM B163
Type	Wound, L type, LL Type, KL Type
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	L Type Fin Tube, LL Type Fin Tube, KLM Fin Tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

Monel 400 is a nickel-copper alloy (approximately 67% Ni and 23% Cu) renowned for its exceptional corrosion resistance across diverse environments. This alloy offers excellent mechanical properties and can be fabricated through hot- and cold-working, machining, and welding processes.

The Monel 400 base tube combined with aluminum fins in a wound fin tube configuration creates an optimal solution for heat exchanger applications in demanding industries including marine, chemical processing, power generation, and aerospace. This combination delivers superior corrosion resistance from the Monel base with enhanced thermal conductivity from the aluminum fins.

Technical Specifications

Type	Description	Base tube O.D. (mm)	Fin pitch	Fin height	Fin thick
Wound	L / KL / LL Type Fin Tube	16-63	2.1-5	<17	~0.4

Chemical Composition

Grade	Ni	Cu	Fe	Mn	Si	C	S
Monel 400	63.0% min	28.0-34.0%	2.5% max	2.0% max	0.5% max	0.3% max	0.024% max

Mechanical Properties

Property	Value
Tensile Strength	550-700 MPa (80,000-100,000 psi)
Yield Strength	240-345 MPa (35,000-50,000 psi)
Elongation	35% minimum in 50 mm
Hardness	65-75 HRB (Rockwell Hardness B)

Key Features

Enhanced Heat Transfer: Aluminum fins significantly increase surface area for improved heat transfer rates
Corrosion Resistance: Outstanding performance in marine and chemical environments
Mechanical Bonding: Wound fin design ensures secure attachment for efficient heat transfer
High Thermal Conductivity: Aluminum fins optimize heat exchanger efficiency
Durability: Monel 400 base provides exceptional resistance to mechanical stress

Applications

Marine and Offshore: Heat exchangers for seawater cooling and desalination plants

Chemical Processing: Equipment for acidic/alkaline environments and refinery applications

Power Generation: Plant coolers where corrosion resistance is critical

Aerospace and Defense: Heat exchangers requiring high temperature and corrosion resistance
