ASTM A213 TP316L Wound With Aluminum 1060 Aluminum L Type Fin Tube , Air Cooler, Cooling Tower

Brand Name:	YUHONG
Model Number:	L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material:

TP316L

Base Tube Standard:

ASTM A213 , ASME SA213

Type:

Wound, L Type, LL Type, KL Type

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

L Type Fin Tube , LL Type Fin Tube , KLM Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A213 Fin Tube

Fin Tube TP316L

Aluminum 1060 Tube L Type

Product Description

ASTM A213 TP316L Wound With Aluminum 1060 Aluminum L Type Fin Tube

High Performance Fin Tube for Air Coolers and Cooling Towers

TP316L stainless steel fin tubes offer excellent corrosion resistance, high temperature strength, and superior mechanical properties. Ideal for demanding industrial applications requiring reliable heat transfer in corrosive environments.

Product Specifications

Attribute	Value
Base Tube Material	TP316L
Base Tube Standard	ASTM A213, ASME SA213
Type	Wound, L type, LL Type, KL Type
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	L Type Fin Tube, LL Type Fin Tube, KLM Fin Tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Technical Description

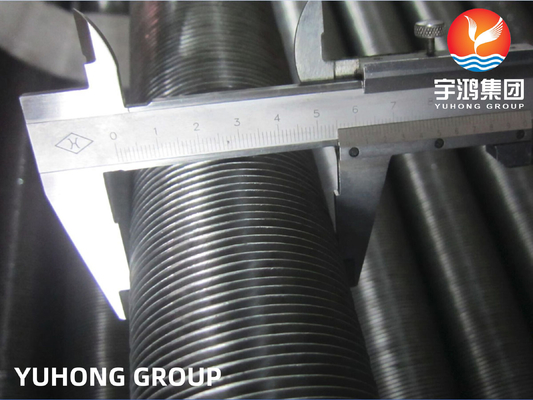

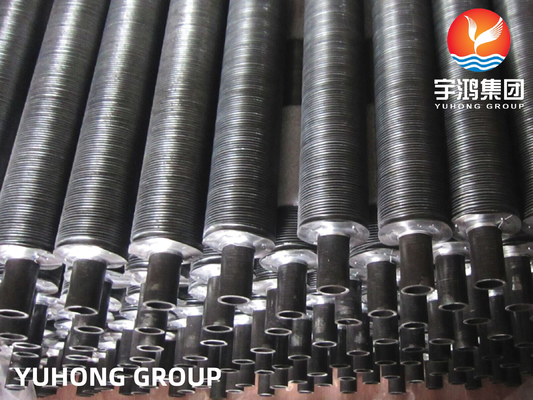

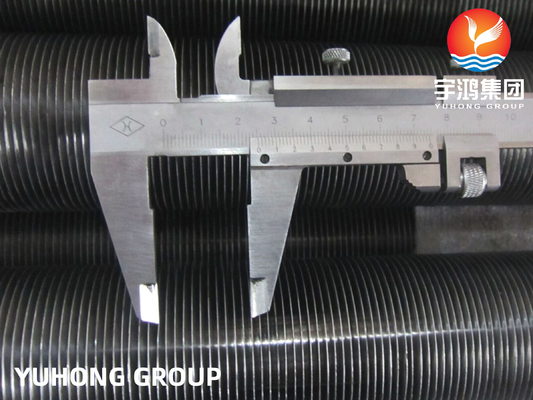

The L type fin tubes feature a thin aluminum fin strip (1060 Aluminum) tightly wound helically around TP316L stainless steel base tubes. This construction maximizes surface area for efficient heat transfer between fluids inside and outside the tube.

Standard Dimensions

Type	Base Tube O.D. (mm)	Fin Pitch	Fin Height	Fin Thickness
Wound L/KL/LL Type	16-63	2.1-5	<17	~0.4

Material Properties

Chemical Composition (TP316L)

C	Mn	Si	P	S	Cr	Ni	Mo	N	Fe
≤0.03%	≤2.00%	≤0.75%	≤0.045%	≤0.030%	16.00-18.00%	10.00-14.00%	2.00-3.00%	≤0.10%	Balance

Mechanical Properties

Property	Value
Tensile Strength	485 MPa (70,000 psi) minimum
Yield Strength	170 MPa (25,000 psi) minimum
Elongation	40% minimum in 50 mm
Hardness	≤ 95 HRB

Industrial Applications

Heat Exchangers: HVAC systems, refrigeration units, power generation plants, and industrial process heat exchangers
Air Conditioning: Efficient heat transfer between air and refrigerants
Industrial Processes: Applications requiring reliable heat transfer solutions
Oil and Gas: Process heating and cooling in refineries and petrochemical plants
Chemical Processing: Corrosion-resistant performance in aggressive environments
