ASTM A179 Wound Aluminum L Type Fin Tube , Air Cooler, Cooling Tower

Brand Name:	YUHONG
Model Number:	‘L’Type Fin Tube , ‘LL’Type Fin Tube , ‘KLM’Fin Tube
MOQ:	1 PC
Price:	1 - 10000 USD
Packaging Details:	Ply-Wooden Case
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China , Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material:

Aluminum

Base Tube Standard:

ASTM A179 , ASME SA179

Type:

Wound, L Type, LL Type, KL Type

Application:

Air Cooler, Cooling Tower, Heat Exchanger, Condenser

Fin Type:

‘L’Type Fin Tube , ‘LL’Type Fin Tube , ‘KLM’Fin Tube

Fin Material:

Aluminum , Copper , Stainless Steel , Carbon Steel

Supply Ability:

10000 Tons/Month

Highlight:

ASTM A179 Fin Tube

Wound Fin Tube L Type

Air Cooler tube for Cooling Tower

Product Description

ASTM A179 Wound Aluminum L Type Fin Tube, Air Cooler, Cooling Tower

Product Specifications

Attribute	Value
Base Tube Material	Aluminum
Base Tube Standard	ASTM A179, ASME SA179
Type	Wound, L type, LL Type, KL Type
Application	Air cooler, Cooling Tower, Heat Exchanger, Condenser
Fin type	'L' Type Fin Tube, 'LL' Type Fin Tube, 'KLM' Fin Tube
Fin Material	Aluminum, Copper, Stainless Steel, Carbon Steel

Product Description

ASTM A179 L Type Fin Tubes are made from carbon steel, which has excellent thermal conductivity and corrosion resistance. These fin tubes are manufactured using a seamless process, ensuring their uniformity and strength.

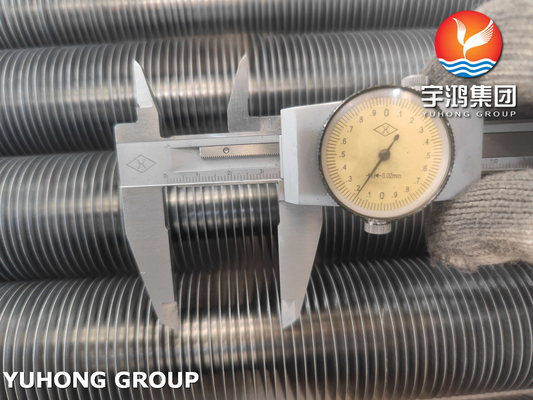

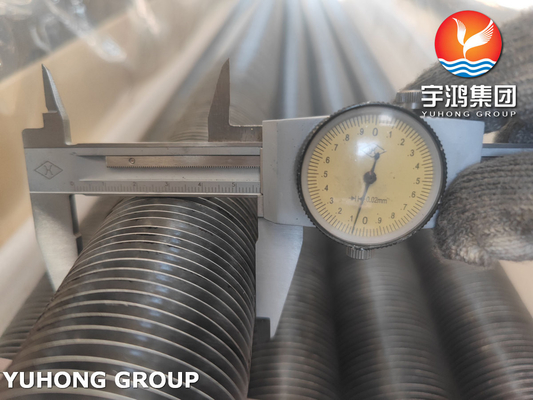

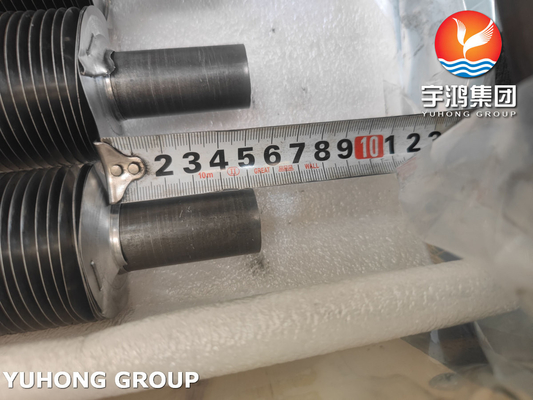

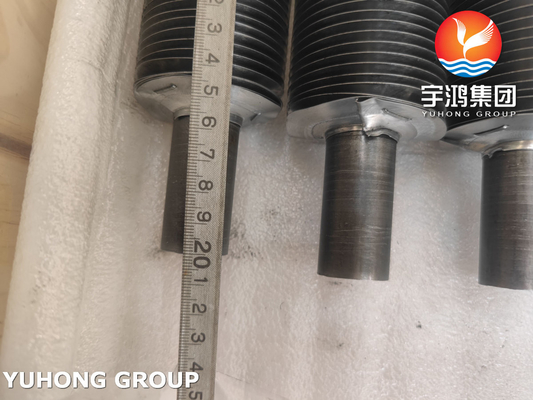

L type fin tubes are made of a thin aluminum fin strip which is tightly wound helically around the circumference of the ASTM A179 base tube. The strip is then tightly wound around the tube, with the foot bearing on the outer surface of the tube. L Type Fin Tube is a type of fin tube used in heat exchangers to increase the surface area for heat transfer between the fluid inside the tube and the fluid outside the tube.

Technical Specifications

Type	Description	Base tube	Fin specification (mm)
Wound	L / KL / LL Type Fin Tube	16-63	O.D.	Fin pitch	Fin height	Fin thick
Wound	L / KL / LL Type Fin Tube	16-63	2.1-5	<17	~0.4

Chemical Composition

C	Si	Mn	P	S
0.06-0.18	≤ 0.25	0.27-0.63	≤0.035	≤0.035

Mechanical Properties

Tensile Strength	≥325 MPa
Yield Strength	≥180 MPa
Elongation	≥35 %
Hardness	≤72 HRB

Applications

Pharmaceutical Equipment Chemical Equipment Sea Water System Heat Exchangers Condensers Pulp and Paper Industry Power Generation Gas Processing Plant Petroleum Industry
