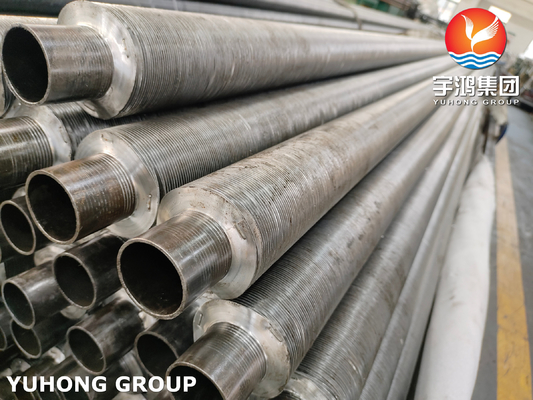

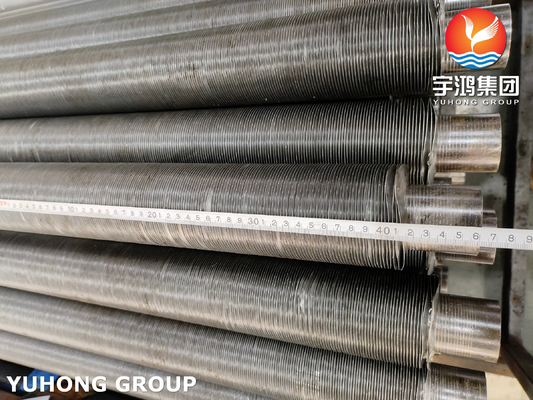

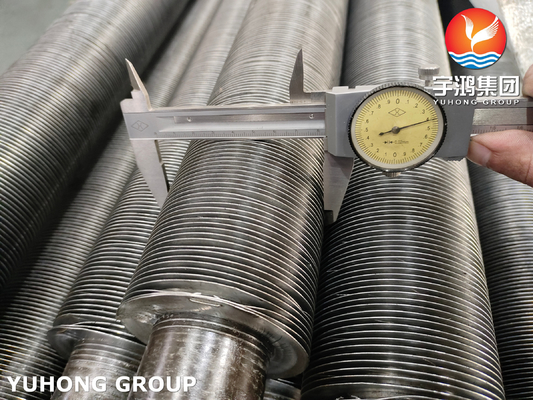

Embedded Finned Tube ASTM A179 With AL1060 Fins For Air Coolers And Condensers

Brand Name:	YuHong
Model Number:	ASTM 179 Embedded Finned Tubes with Al1060 Fins
MOQ:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Product Name:

Embedded Finned Tube / G Finned Tube

Base Tube Specification&Material:

ASTM A179

Fin Material:

Aluminum1060

Fin Height:

＜17mm

Fin Thickness:

~0.4mm

Base Tube OD:

16~63mm

Fin Pitch:

2.1~5mm

Application:

Chemical Equipment Heat Exchanger, Heat Exchanger, Air Cooler, Condensers, Evaporators

Supply Ability:

According to Clients' requirements

Highlight:

Embedded finned tube

ASTM finned tube

Air Coolers finned pipe

Product Description

Embedded Finned Tube ASTM A179 With AL1060 Fins For Air Coolers And Condensers

Product Specifications

Attribute	Value
Product Name	Embedded Finned Tube / G Finned Tube
Base Tube Specification & Material	ASTM A179
Fin material	Aluminum1060
Fin Height	<17mm
Fin Thickness	~0.4mm
Base Tube OD	16~63mm
Fin Pitch	2.1~5mm
Application	Chemical Equipment Heat Exchanger, Heat Exchanger, Air Cooler, Condensers, Evaporators

Product Overview

The Embedded Finned Tube ASTM A179 with Aluminum 1060 Fins is a high-performance heat exchanger component engineered to optimize thermal transfer efficiency. This specialized tube combines an ASTM A179 carbon steel base tube with mechanically embedded Aluminum 1060 fins, delivering superior heat transfer, durability, and corrosion resistance.

Key Components

Base Tube (ASTM A179): Low-carbon steel offering high thermal conductivity, mechanical strength, and pressure resistance - ideal for high-temperature applications.
Fins (Aluminum 1060): Pure aluminum alloy (99.6% aluminum) providing excellent thermal conductivity, corrosion resistance, and lightweight properties.
Embedded Fin Design: Mechanically bonded fins create a permanent, high-efficiency heat transfer surface between tube and fins.

Performance Advantages

Enhanced thermal efficiency through optimized material combination
Superior corrosion resistance in demanding environments
Lightweight construction reduces system weight
Durable mechanical bond prevents fin loosening
Cost-effective solution compared to all-aluminum alternatives

Material Specifications

ASTM A179 Chemical Composition

Element	Composition (%)
Carbon (C)	0.06 - 0.18
Manganese (Mn)	0.27 - 0.63
Phosphorus (P)	0.035 max
Sulfur (S)	0.035 max
Silicon (Si)	0.10 min

ASTM A179 Mechanical Properties

Property	Value
Tensile Strength (min)	325 MPa (47,000 psi)
Yield Strength (min)	180 MPa (26,000 psi)
Elongation (min)	35% (in 2 inches)
Hardness (max)	72 HRB (Rockwell B)

Industrial Applications

Shell-and-tube heat exchangers for power generation and chemical processing
Air-cooled heat exchangers and condensers
Refrigeration and HVAC systems
Oil and gas heat recovery systems
Industrial process heating and cooling
Renewable energy systems including geothermal and solar thermal
