A179 ASTM Embedded Finned Tube G Fin Tube With Aluminum Fins For Heat Exchanger

Brand Name:	YuHong
Model Number:	ASTM 179
MOQ:	200~500 KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Cases with Steel Frames and Pipe's both ends with plastic caps
Payment Terms:	T/T, L/C AT SIGHT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, BV, ISO, ASTM, SGS

Product Name:

Embedded Finned Tube / G Finned Tube

Base Tube Specification&Material:

ASTM A179

Fin Material:

Aluminum

Fin Height:

＜17mm

Fin Thickness:

~0.4mm

Base Tube OD:

16~63mm

Fin Pitch:

2.1~5mm

Application:

Chemical Equipment Heat Exchanger, Heat Exchanger, Air Cooler, Condensers, Evaporators

Supply Ability:

According to Clients' requirements

Highlight:

A179 g fin tube

Heat Exchanger g fin tube

Aluminum fin tube

Product Description

ASTM A179 Embedded Finned Tube / G Finned Tube With Aluminum Fins For Heat Exchanger

Product Specifications

Attribute	Value
Product Name	Embedded Finned Tube / G Finned Tube
Base Tube Specification & Material	ASTM A179
Fin material	Aluminum
Fin Height	<17mm
Fin Thickness	~0.4mm
Base Tube OD	16~63mm
Fin Pitch	2.1~5mm
Application	Chemical Equipment Heat Exchanger, Heat Exchanger, Air Cooler, Condensers, Evaporators

Product Overview

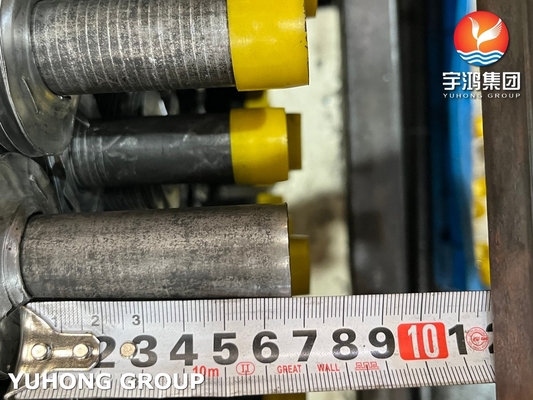

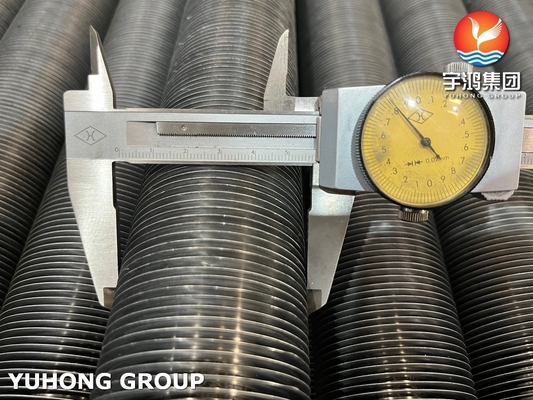

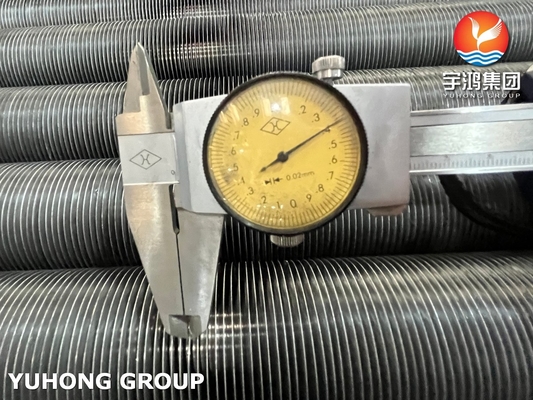

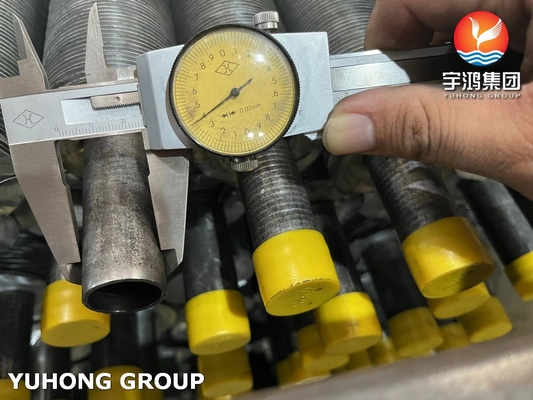

The ASTM A179 Embedded Finned Tube with Aluminum Fins is a specialized heat transfer component designed to improve efficiency by increasing surface area contact with surrounding media (air, gas, or liquid). It features a steel base tube with mechanically embedded aluminum fins for optimal thermal performance.

Key Features

Base Tube Material: ASTM A179 steel for excellent thermal conductivity, strength, and corrosion resistance
Fins: Aluminum fins embedded or attached to outer surface for increased heat transfer
Durable Construction: Mechanically bonded fins resist loosening under thermal cycling or mechanical stress

Material Composition (Chemical Requirements)

Element	Composition (%)
Carbon (C)	0.06-0.18
Manganese (Mn)	0.27-0.63
Phosphorus (P)	0.035 max
Sulfur (S)	0.035 max
Silicon (Si)	0.10-0.35

The low carbon content ensures good weldability and formability, while manganese provides strength and toughness. Phosphorus and sulfur are minimized to avoid brittleness.

Mechanical Properties

Property	Requirement
Tensile Strength	≥ 325 MPa (47,000 psi)
Yield Strength	≥ 180 MPa (26,000 psi)
Elongation (in 2 in or 50 mm)	≥ 35% (for wall thickness ≤ 0.015 in or 0.38 mm) ≥ 30% (for wall thickness > 0.015 in or 0.38 mm)

Primary Applications

Heat Exchangers: Air-cooled and liquid-to-air heat exchangers in power plants, refineries, and chemical processing
Condensers: Power plant condensers and HVAC refrigeration systems
Economizers: Boiler economizers for waste heat recovery
Oil & Gas: Gas cooling and heat recovery systems
Industrial Processes: Chemical processing, food production, and manufacturing
Renewable Energy: Biomass, waste-to-energy, and geothermal systems
HVAC Systems: Air handling units and chillers
Transportation: Automotive radiators and aerospace oil coolers

Product Advantages

Enhanced heat transfer efficiency through increased surface area
Durable steel-aluminum construction for long service life
Lightweight compared to all-steel finned tubes
Excellent thermal conductivity and corrosion resistance
Reliable performance under thermal cycling conditions

Tags:
