Al1060 Embedded G Type Fin Tubes ASTM A179 Aluminium Strip For Air Cooler

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C, T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

ASTM A179

Fin Material:

Al1060, Al1100

Fin Type:

Embedded Type

Application:

Air Cooler, Refrigeration System

Fin Height:

15.875mm

Fin Thickness:

0.4MM

Highlight:

Embedded G Type Fin Tubes

Al1060 G Type Fin Tubes

Air Cooler g fin tube

Product Description

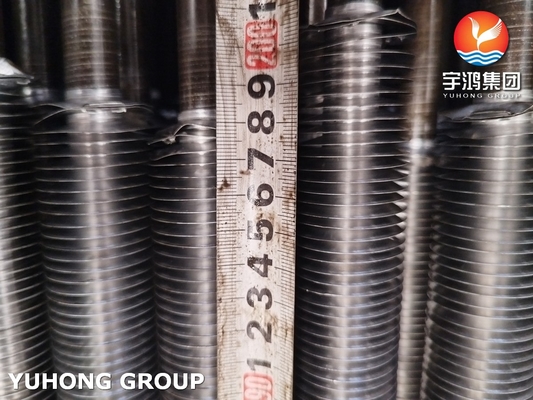

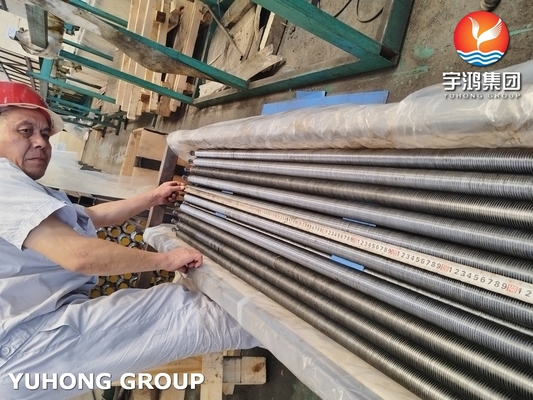

Al1060 Embedded G Type Fin Tubes ASTM A179 Aluminium Strip For Air Cooler

Product Specifications

Material	ASTM A179
Fin Material	Al1060, Al1100
Fin Type	Embedded Type
Application	Air Cooler, Refrigeration System
Fin Height	15.875mm
Fin Thickness	0.4MM

Product Overview

The Embedded Fin Tube ASTM A179 with Aluminum Strip Al1060 is designed for air cooler applications, offering exceptional heat transfer efficiency and corrosion resistance. This fin tube combines carbon steel (ASTM A179) for the base tube with Al1060 aluminum for the fins, optimizing performance in industrial cooling systems, heat exchangers, and condensers.

Key Features

Base Tube Material: ASTM A179 Carbon Steel - Known for high thermal conductivity and mechanical properties, ideal for heat exchangers and air coolers.
Fin Material: Al1060 Aluminum - Offers excellent corrosion resistance, thermal conductivity, and lightweight properties.
Fin Type: Embedded Fin - Mechanically attached aluminum fins ensure high heat exchange efficiency and long-term stability.
Application: Ideal for air coolers, heat exchangers, and condensers in industrial air cooling, HVAC systems, power plants, and refrigeration systems.

Chemical Composition

Base Tube: ASTM A179 Carbon Steel

Element	Percentage
Carbon (C)	≤ 0.06%
Manganese (Mn)	0.27% - 0.63%
Phosphorus (P)	≤ 0.035%
Sulfur (S)	≤ 0.035%

Fin Material: Al1060 Aluminum

Element	Percentage
Aluminum (Al)	≥ 99.0%
Iron (Fe)	≤ 0.35%
Copper (Cu)	≤ 0.05%
Silicon (Si)	≤ 0.25%

Mechanical Properties

Base Tube: ASTM A179 Carbon Steel

Property	Value
Tensile Strength	335 - 485 MPa
Yield Strength	≥ 205 MPa
Elongation	≥ 30%
Hardness	Brinell hardness: 160 - 190 HB

Fin Material: Al1060 Aluminum

Property	Value
Tensile Strength	70 - 110 MPa
Yield Strength	30 - 55 MPa
Elongation	≥ 20%

Advantages

Improved Heat Transfer Efficiency: Embedded fin design maximizes surface area for heat exchange
Corrosion Resistance: Al1060 aluminum provides excellent protection against oxidation
Durability: Combination of ASTM A179 carbon steel and Al1060 aluminum ensures long-lasting performance
Lightweight: Aluminum fins reduce overall system weight
Cost-Effective: Affordable yet highly effective solution for cooling applications

Applications

Air Coolers for industrial applications in power generation, chemical plants, and HVAC systems
Heat Exchangers for chemical processing, marine cooling, and power plants
Condensers in refrigeration systems
HVAC Systems for large-scale heating, ventilation, and air conditioning
