A213 T5 G Type Fin Tube Embedded ASTM For Air Cooler Condenser

Brand Name:	YUHONG
Model Number:	Embedded G Type Fin Tube
MOQ:	1 PC
Price:	10-1000 USD/PC

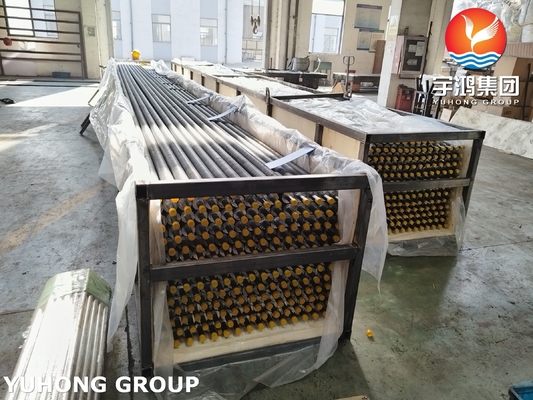

Packaging Details:	STEEL FRAME CASE
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China, Korea

Certification:

ABS, DNV-GL, LR, BV, CCS, KR, ASME, TUV, SGS, BV, IEI, IBR, ISO9001, ISO 14001, ISO 18001

Base Tube Material Grade:

A213 T5

Base Tube Material Standard:

ASME SA213, ASTM A213

Fin Material:

Aluminum, Carbon Steel

Max. Working Temperature:

750 °F（400 °C）

Bare Tube Diameter(MM):

16 - 63 Mm

Fin Pitch(MM):

2.1 - 5 Mm

Fin Height(MM):

<17 Mm

Fin Thick(MM):

~0.4 Mm

Supply Ability:

10000 TONS PER MONTH

Highlight:

A213 g type fin tube

T5 g type fin tube

ASTM tube fins

Product Description

A213 T5 G Type Fin Tube Embedded ASTM For Air Cooler Condenser

Product Specifications

Attribute	Value
Base Tube Material Grade	A213 T5
Base Tube Material Standard	ASME SA213, ASTM A213
Fin Material	Aluminum, Carbon Steel
Max. Working Temperature	750 °F (400 °C)
Bare Tube Diameter (MM)	16 - 63 mm
Fin Pitch (MM)	2.1 - 5 mm
Fin Height (MM)	<17 mm
Fin Thick (MM)	~0.4 mm

Product Description

Embedded G Type ASTM A213 T5 Fin Tubes are high-performance heat transfer components widely used in air coolers, condensers, and other heat exchanger systems. These tubes are manufactured using ASTM A213 T5 alloy steel, which offers excellent high-temperature strength and corrosion resistance. The "G type" fins are mechanically embedded into grooves on the base tube, ensuring a secure bond for efficient thermal performance and mechanical durability.

Key Features

Material Standard - ASTM A213 T5:
The base tube is made of ASTM A213 T5 alloy steel, a ferritic alloy containing chromium and molybdenum. This composition provides excellent resistance to high temperatures, oxidation, and corrosion, making it ideal for demanding heat exchanger applications.
Embedded G Type Fin Design:
The fins are mechanically embedded into grooves cut into the surface of the base tube. This design ensures a tight mechanical bond, allowing for efficient heat transfer while preventing fin detachment under thermal stress or vibration.
Thermal Efficiency:
The fins significantly increase the surface area of the tube, enhancing heat exchange efficiency. The embedded design ensures optimal heat conduction between the fins and the base tube.
Durability and Mechanical Stability:
The mechanical embedding process ensures that the fins remain secure, even in high-pressure or high-temperature environments. Resistant to thermal cycling, vibration, and mechanical wear.
Corrosion and Oxidation Resistance:
ASTM A213 T5 alloy steel offers superior resistance to oxidation and scaling at elevated temperatures. The tube can withstand harsh environments, including those with corrosive gases or fluids.

Chemical Composition

Grade	Cr	Si	Mo	Mn
A213 T5	4.00 - 6.00	0.50 max	0.45 - 0.65	0.30 - 0.60

Mechanical Properties

Grade	Tensile Strength	Yield Strength	Elongation	Hardness
A213 T5	415 MPa (60 ksi)	205 MPa (30 ksi)	30%	89 HRB

Applications

Air Coolers: Used in cooling systems for gases or fluids in power plants, refineries, and chemical plants.
Condensers: Efficiently condenses process vapors into liquids in industrial systems.
Petrochemical Industry: Ideal for heat exchangers in refineries, petrochemical plants, and gas processing facilities.
Power Generation: Used in economizers, preheaters, and other heat recovery systems in boilers and thermal power plants.
Fertilizer Plants: For heat exchangers that handle high-temperature and corrosive environments.
