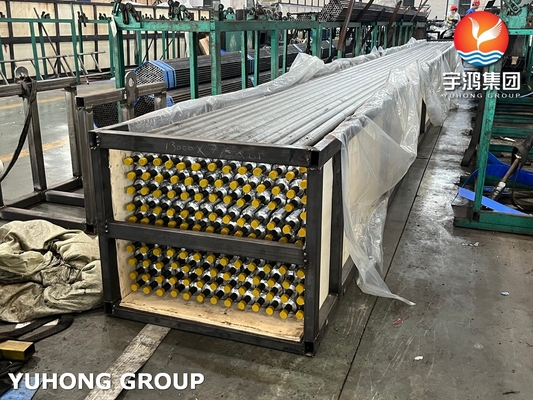

Name: Air Cooler Tube ASTM A179 Spiral Embedded Finned Pipes With Aluminium Strip
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: ASTM A179
Price: 10000.00 USD
Availability: InStock

Brand Name:	Yuhong
Model Number:	ASTM A179
MOQ:	100KGS
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Payment Terms:	L/C,T/T,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

DNV, BV, PED, LR, ABS, TS, CCS

Material:

ASTM A179

Fin Material:

Al1060, Al1100

Fin Type:

Embedded Type

Application:

Air Cooler, Refrigeration System

Fin Height:

15.875mm

Fin Thickness:

0.4MM

Highlight:

A179 finned pipes

ASTM finned pipes

Embedded spiral finned tube

Product Description

Air Cooler Tube ASTM A179 Spiral Embedded Finned Pipes With Aluminium Strip

Material	ASTM A179
Fin Material	Al1060, Al1100
Fin Type	Embedded Type
Application	Air Cooler, Refrigeration System
Fin Height	15.875mm
Fin Thickness	0.4MM

Key Features

Base Tube Material: ASTM A179 Carbon Steel - Known for excellent mechanical properties and heat transfer capabilities, ideal for heat exchangers, air coolers, and condensers in industrial applications.
Fin Material: Aluminum Strip - Provides superior thermal conductivity, corrosion resistance, and lightweight properties for efficient heat transfer in air cooler systems.
Fin Type: Spiral Embedded Fin - Enhances heat transfer area and creates fluid flow turbulence for improved efficiency, with secure bonding to prevent fin detachment.
Application: Specifically designed for air cooler systems requiring efficient heat dissipation in industrial processes, HVAC systems, and power plants.

Chemical Composition

Element	ASTM A179 Carbon Steel (Base Tube)	Aluminum Strip (Fin Material)
Carbon (C)	0.06% (max)	≤ 0.03%
Manganese (Mn)	0.27% - 0.63%	≤ 0.03%
Phosphorus (P)	≤ 0.035%	-
Sulfur (S)	≤ 0.035%	-
Chromium (Cr)	≤ 0.30%	-
Nickel (Ni)	≤ 0.25%	-
Aluminum (Al)	-	≥ 99.0%

Mechanical Properties

Property	ASTM A179 Carbon Steel (Base Tube)	Aluminum Strip (Fin Material)
Tensile Strength	335 - 485 MPa	70 - 110 MPa
Yield Strength	≥ 205 MPa	30 - 55 MPa
Elongation	≥ 30%	≥ 20%
Hardness	Brinell hardness: 160 - 190 HB	Brinell hardness: 30 - 50 HB

Advantages

Enhanced Heat Transfer: Spiral embedded fin design increases surface area and creates turbulence for improved thermal efficiency.
Corrosion Resistance: Aluminum fins provide excellent oxidation resistance for long-lasting performance in harsh environments.
Durability: ASTM A179 Carbon Steel offers strength for mechanical stresses, with embedded fins ensuring secure bonding.
Cost-Effective: Optimal combination of carbon steel and aluminum provides excellent performance at competitive costs.
Versatile Design: Customizable fin height, thickness, and density for various cooling requirements.

Applications

Air Coolers in industrial applications including power plants, oil refineries, and chemical processing
Cooling Tower systems using air as the cooling medium
Heat Exchangers for efficient cooling in harsh industrial environments
HVAC Systems for air conditioning in large residential, commercial, and industrial settings
